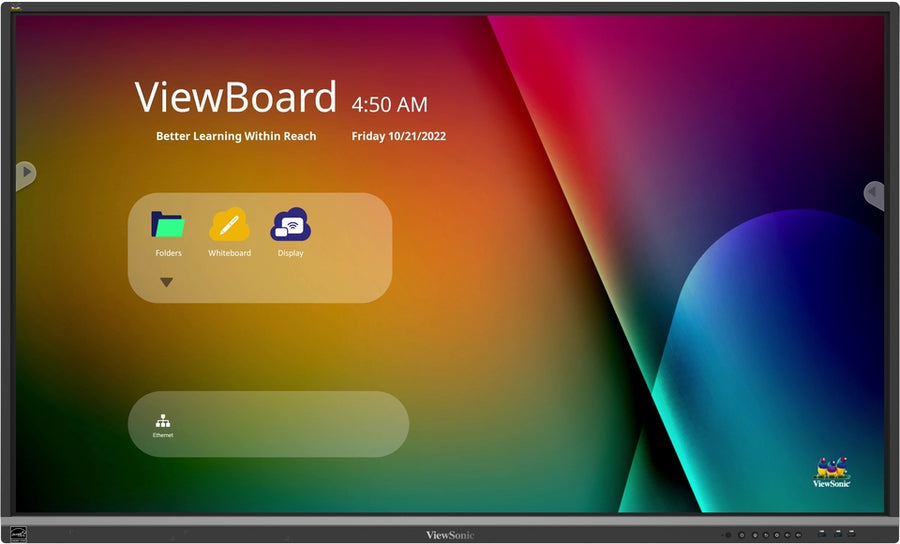

ViewSonic ViewBoard 65-inch 4K Interactive Display – IFP6550-5
The ViewSonic ViewBoard IFP6550-5 is a 65-inch 4K UHD interactive flat panel for classrooms and collaborative teaching spaces. It has a 3840 × 2160 IR touch panel with up to 40-point touch on Windows, a single USB-C connection with 65W power delivery, and myViewBoard annotation software. Procure.ae supplies the ViewBoard IFP6550-5 across the UAE.
The ViewBoard IFP6550-5 pairs a 65-inch IPS LCD panel at 3840 × 2160 UHD resolution with 10-bit colour and 350 nits typical brightness. Ultra Fine Touch infrared technology offers up to 40-point touch on Windows and 20 points on Android, on a 7H anti-glare surface. Compute comes from an ARM Cortex-A73 and Cortex-A53 processor with 4GB RAM and 32GB storage. A single USB-C port carries DisplayPort 1.2, USB 2.0, 100M Ethernet and 65W power delivery, so one cable can connect a laptop.
The IFP6550-5 suits classrooms and teaching spaces, as it is designed with modern educators in mind. It includes myViewBoard basic annotation software, and myViewBoard for Windows runs in the embedded slot-in PC. Wireless presentation works through vCast, the myViewBoard Display App or AirSync, and the panel supports a 600 mm × 400 mm VESA wall mount. A light sensor, a dual pen available in several colours and sizes, and a TÜV certified blue light filter add to everyday use.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- 65-inch 4K UHD panel
- Ultra Fine Touch
- Single-cable USB-C
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD panel
3840 × 2160 resolution with 10-bit colour and 350 nits typical brightness.
02
Ultra Fine Touch
up to 40-point touch on Windows and 20 points on Android for multi-user writing.
03
Single-cable USB-C
one port with DisplayPort 1.2, USB 2.0, 100M Ethernet and 65W power delivery.
04
Dual-pen writing
a dual pen available in several colours and sizes for smooth writing.
05
myViewBoard software
basic and Pro annotation software, with myViewBoard for Windows in the slot-in PC.
06
Wireless presentation
vCast, myViewBoard Display App and AirSync support wireless sharing.
07
Eye-care features
Flicker-Free technology and a TÜV certified blue light filter at all brightness levels.
08
Expansion and connectivity
two RJ45 ports, a WiFi module slot, an OPS slot and RS232 for integration.
Specifications
38 specificationsGeneral
Key FeaturesInfrared touch, light sensor, OPS slot for slot-in PC, wireless presentation, annotation software, LAN sharing with slot-in PC, Wi-Fi module slot
ModelIFP6550-5
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits
Color Depth10-bit (1.07 billion colors)
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points40-point (Windows) / 20-point (Android) multi-touch
Touch Resolution32768 x 32768
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
ProcessorARM Cortex-A73 × 4 + Cortex-A53 × 4
RAM4 GB
Storage32 GB
Audio
Audio OutEarphone × 1
Connectivity
EthernetRJ45 × 2
Input Voltage100–240 V AC
OPS Slot1 slot
Serial PortRS232 × 1
Touch USB PortsUSB-B × 2
USB PortsUSB 2.0 × 2, USB 3.0 × 4
USB-C PortsUSB-C × 1 (DP 1.2, USB 2.0, PD 65 W, 100M Ethernet)
Power
Power Consumption95 W (typical)
Standby Power<0.5 W
Physical
Dimensions1488.4 x 896.7 x 86.5 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1628 x 1005 x 208 mm
Shipping Weight50.7 kg
Surface Protection7H, anti-glare coating
VESA Mount600 x 400 mm
Weight40.1 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Display – IFP6550-5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ViewBoard IFP6550-5 have a built-in camera?
The published specifications do not list a built-in camera. The panel has a light sensor, two RJ45 ports, a Type C port and several USB ports, so external cameras can be connected instead.
How many touch points does it support?
It supports up to 40 touch points on Windows and 20 on Android, using Ultra Fine Touch infrared technology with a touch resolution of 32768 × 32768. The 7H anti-glare surface suits everyday writing on the screen.
Which video platforms does it work with?
The manufacturer’s specifications do not list specific video conferencing platforms. For wireless presentation it supports vCast, the myViewBoard Display App and AirSync, and it offers simple LAN sharing between the panel and its slot-in device. Procure.ae can confirm platform compatibility before you buy.
Is it suitable for a classroom or meeting room?
Yes, it is designed for classrooms and teaching spaces, with a 65-inch 4K panel, 40-point touch on Windows and single-cable USB-C connection. The manufacturer’s specifications do not state a maximum room size, so Procure.ae can advise on viewing distance and sizing.
Can it be wall-mounted? What VESA pattern does it use?
Yes. The ViewBoard IFP6550-5 supports a wall mount with a 600 mm × 400 mm VESA pattern. It operates at 0°C to 40°C with 10% to 90% RH non-condensing humidity.
