ViewSonicInteractive Flat PanelsSKU IFP8633

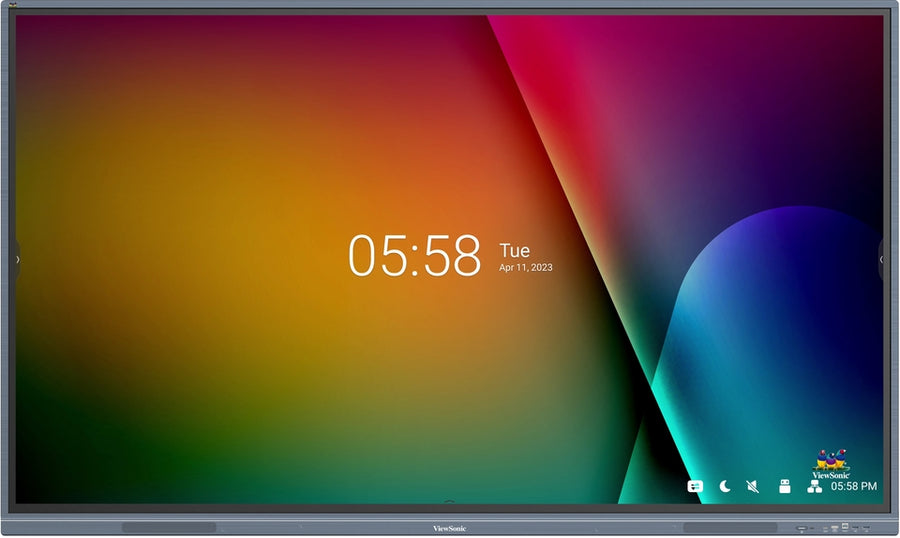

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8633
The ViewSonic IFP8633 is an 86-inch 4K UHD interactive flat panel for classrooms and collaborative spaces. It has 40-point Ultra Fine Touch, a 400-nit display, 4 GB of RAM and an optional Intel OPS slot. Procure.ae supplies the ViewSonic IFP8633 across the UAE.
The ViewBoard IFP8633 is an 86-inch 4K UHD display with a VA panel, 400 nits brightness and a 5,000:1 maximum contrast ratio with DCR enabled. Its bonded panel gives clearer colors and reduced glare, and its 8 ms response time and 178° viewing angles suit large rooms. Ultra Fine Touch supports 40 points, with fingers or dual-tip pens. A quad-core processor, 4 GB of DDR4 RAM and 32 GB of storage run the built-in software. Front-facing speakers and a USB-C port with 65 W power delivery are included.
The IFP8633 suits large classrooms and meeting rooms where teachers and students share one display. myViewBoard is preinstalled for lesson delivery and device management. Viewboard Cast offers wireless casting with touch feedback. An optional Intel standard OPS slot adds an Intel PC, and myViewBoard for Windows is available with the optional Windows slot-in PC. Its 800 x 600 mm VESA pattern suits a wall bracket.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Ultra Fine Touch (UFT)
- 40-point touch
- Bonded 4K panel
- Front speakers
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
40-point touch
Ultra Fine Touch with 40 points, usable with fingers or dual-tip pens.
02
Bonded 4K panel
3840 x 2160 resolution with clearer colors and reduced glare.
03
Front speakers
Powerful built-in front-facing speakers.
04
USB-C with 65 W PD
Front USB-C port with 65 W power delivery, DisplayPort 1.2 and USB 2.0 data.
05
Viewboard Cast
Wireless casting with touch feedback.
06
myViewBoard preinstalled
Lesson delivery and device management software on the panel.
07
Optional OPS slot
Optional Intel standard OPS module for a slot-in PC.
08
Optional Wi-Fi
Optional VB-WIFI-002, VB-WIFI-004 or VSB-050 Wi-Fi module.
Specifications
28 specificationsGeneral
Key Features40-point Ultra Fine Touch, dual-tip pen support, bonded 4K panel, front-facing speakers, USB-C with 65 W PD, myViewBoard pre-installed, Viewboard Cast with touch feedback, optional OPS and Wi-Fi
ModelIFP8633
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colors
Contrast Ratio5,000:1 (max., with DCR enabled)
Panel TechnologyVA (TFT LCD with DLED backlight)
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point multi-touch
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal / 178° vertical
Performance
ProcessorQuad-core ARM Cortex-A55
RAM4 GB DDR4
Storage32 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional Intel standard OPS
PortsRGB/VGA × 1, RS232 × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB 3.0 × 4 (front × 2, rear × 2), USB 2.0 × 1, USB-B × 2, USB-C × 1
USB-C Ports1 (front; PD 65 W, DP 1.2, USB 2.0 data and 10/100 Mbps sharing)
Power
Power Consumption154 W (on), 0.5 W or less (off)
Physical
Dimensions1957 x 1160 x 100 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight58.55 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8633 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP8633?
The IFP8633 is an 86-inch 4K UHD ViewBoard interactive flat panel from the IFP33 Series. It has 40-point Ultra Fine Touch and comes preinstalled with myViewBoard for lesson delivery and device management.
Does the IFP8633 include a computer?
The panel has an optional Intel standard OPS slot for a slot-in PC. The panel itself runs its own quad-core ARM processor with 4 GB RAM and 32 GB storage, and the OPS module is optional.
Can the IFP8633 be used with a Windows PC?
Yes, through the optional Windows slot-in PC or an OPS module, which runs myViewBoard for Windows. Simple LAN sharing between the panel and a slot-in device uses 10/100 Mbps Ethernet.
How is the IFP8633 mounted?
The panel uses an 800 x 600 mm VESA wall-mount pattern and weighs 58.55 kg net. Use a bracket rated for that weight and confirm the wall structure before installation.
Is the IFP8633 suitable for a large classroom?
An 86-inch panel suits large classrooms, lecture halls and meeting rooms where viewers sit farther from the screen. Procure.ae can review the room layout and viewing distance before you choose the size.
Can I buy the IFP8633 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
