IIYAMAInteractive Flat PanelsSKU TE5513A-B2AG

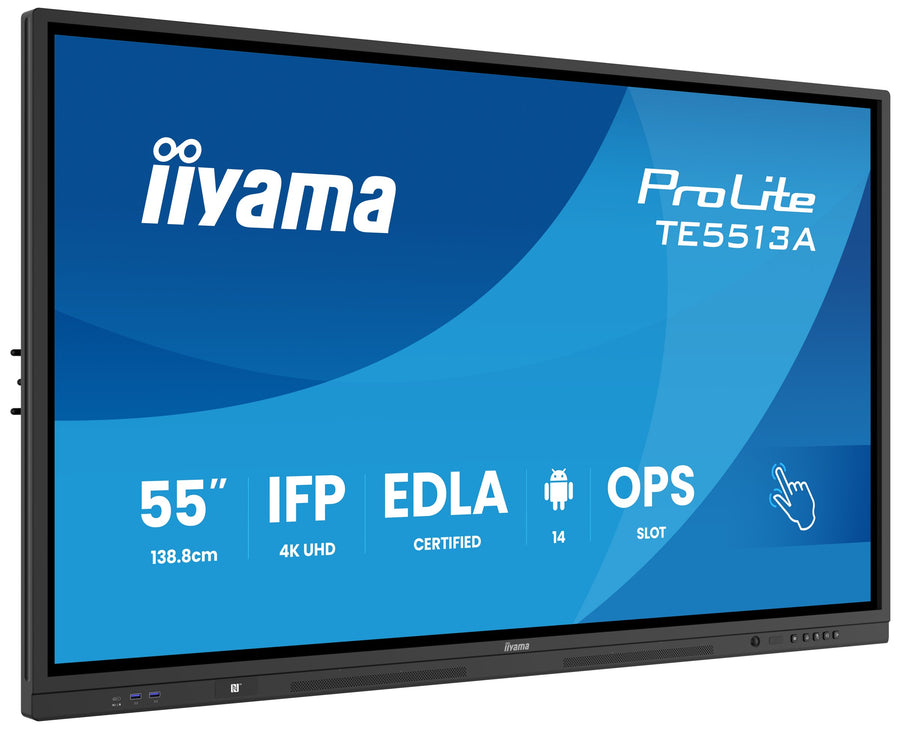

iiyama ProLite 55-inch 4K UHD Interactive Flat Panel – TE5513A-B2AG
The iiyama ProLite TE5513A-B2AG is a 55-inch 4K UHD interactive flat panel with Google EDLA certification for educational and enterprise rooms. It has 40-point infrared touch with PureTouch-IR+ palm rejection and iiWare 21E on Android 14. Procure.ae is an authorised reseller of iiyama and supplies the TE5513A-B2AG across the UAE.
The TE5513A-B2AG has a 3840 x 2160 IPS panel with 500 cd/m² typical brightness, 1,200:1 static contrast and an 8 ms response time (GTG). Its PureTouch-IR+ system supports 40 touch points, with 10-point writing on supported operating systems, a 5 ms touch response and ±1 mm accuracy. The Zero-Gap Air Bonding design is intended to reduce parallax. The octa-core RK3576 processor is paired with 8 GB of RAM and 128 GB of storage.
The panel runs iiWare 21E with Google EDLA, iiControl DMS, WhiteBoard, cloud drives, iiBrowser, a file manager and iiShare for wireless connections with Windows, iOS and Android devices. The manufacturer states integration with Google apps and the Microsoft 365 suite. Two HDMI inputs, one DisplayPort input and two USB-C inputs connect PCs, and an OPS slot accepts an optional OPS PC. The panel measures 1267 x 765.5 x 117.5 mm and mounts with a 400 x 400 mm VESA pattern.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Touch Technology
Infrared (PureTouch-IR+)
- Google EDLA certified
- 40-point touch
- Palm rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Google apps, accounts and files are accessible on the panel.
02
40-point touch
10-point writing on supported OS and 32-point touch on Android.
03
Palm rejection
PureTouch-IR+ with palm rejection and a 5 ms touch response.
04
Zero-Gap Air Bonding
Designed to reduce parallax for accurate writing.
05
iiWare 21E software
WhiteBoard, cloud drives, iiBrowser and file manager on Android 14.
06
Device management
iiControl DMS, which the manufacturer states is GDPR compliant.
07
PIR motion sensor
Included for energy efficiency.
08
OPS slot and wireless
Accepts an optional OPS PC, with Wi-Fi 6E and Bluetooth 5.0.
Specifications
40 specificationsGeneral
Key FeaturesGoogle EDLA certified, Zero-Gap Air Bonding, palm rejection, iiWare 21E software, iiControl DMS, PIR motion sensor, OPS slot for optional PC, Wi-Fi 6E and Bluetooth 5.0
ModelTE5513A-B2AG
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness500 nits (typical)
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Accuracy±1 mm
Touch Points40-point touch (10-point writing on supported OS, 32-point on Android)
Touch Response Time5 ms
Touch TechnologyInfrared (PureTouch-IR+)
Performance
GraphicsMali-G52 MC3
Operating SystemAndroid 14 (iiWare 21E)
ProcessorRockchip RK3576 octa-core (4 × A72, 4 × A53)
RAM8 GB
Storage128 GB
Audio
Speaker Output2 × 20 W plus 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
HDMI Inputs2 (HDMI 2.0, one with CEC and ARC)
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort in × 1, HDMI out × 1, USB-C out × 1, RJ45 (LAN) × 2, RS-232C × 1, OPS slot × 1, S/PDIF optical out × 1, 3.5 mm headphone out × 1
USB PortsUSB 3.2 Gen 1 × 3, USB 2.0 × 1
USB-C PortsUSB-C × 2 (front 100 W PD, side 65 W PD)
Wi-FiWi-Fi 6E
Power
Power Consumption126 W (typical)
Standby Power0.5 W
Physical
Dimensions1267 x 765.5 x 117.5 mm
Duty Cycle24/7 (18 hours per day recommended)
FinishAnti-glare, anti-gloss glass with anti-bacterial coating
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight28.7 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH
Downloads
Manufacturer documents for the iiyama ProLite 55-inch 4K UHD Interactive Flat Panel – TE5513A-B2AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TE5513A-B2AG Google EDLA certified?
Yes. The display is Google EDLA certified, so Google apps, accounts and files can be accessed directly on the panel. The manufacturer also states integration with the Microsoft 365 suite for productivity and collaboration.
How many touch points does it support?
It supports 40 touch points. Writing uses 10-point input on supported operating systems, and Android touch supports 32 points. Touch uses PureTouch-IR+ infrared technology with palm rejection, a 5 ms response time and ±1 mm accuracy.
Can it connect to a PC and a laptop at the same time?
Yes, through its inputs. It has two HDMI inputs, one DisplayPort input and two USB-C inputs, with the front USB-C providing 100 W power delivery. Wireless sharing is also available through iiShare with Windows, iOS and Android devices.
Can I mount it on a wall or stand?
Yes. It uses a 400 x 400 mm VESA pattern and weighs 28.7 kg without its box. The housing measures 1267 x 765.5 x 117.5 mm, so confirm the wall or stand can take the weight before installation.
Can I add an OPS PC?
Yes. An Intel OPS 80-pin slot accepts an optional OPS PC. When the PC is installed, the front USB-C port provides 65 W and the side USB-C port provides 15 W.
