ViewSonicInteractive Flat PanelsSKU IFP7563-2C

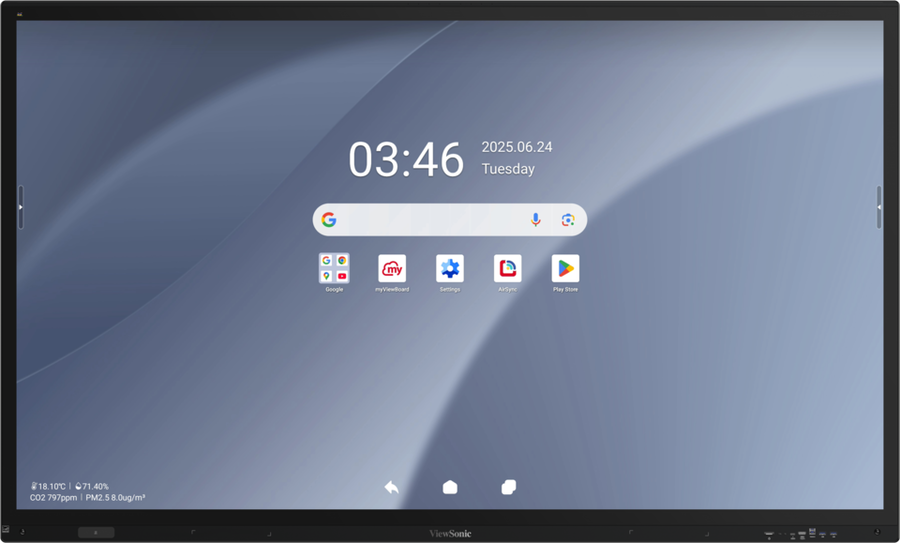

ViewSonic ViewBoard 75-inch 4K PCAP Interactive Flat Panel – IFP7563-2C
The ViewSonic IFP7563-2C is a 75-inch 4K UHD interactive flat panel with 50-point PCAP touch and palm rejection. It runs EDLA-certified Android 15 on an octa-core processor with 32 GB of RAM. Procure.ae supplies the ViewSonic IFP7563-2C across the UAE for classrooms and enterprise meeting rooms.
The ViewBoard IFP7563-2C is a 75-inch 4K UHD display with 50-point PCAP touch and palm rejection for both passive and active pens. Its ADS panel offers 450 nits typical brightness, 5,000:1 contrast and a 6.5 ms response time. An octa-core processor and 32 GB of LPDDR RAM support multitasking, with 128 GB of eMMC storage. The panel runs Android 15 and is EDLA certified. Environmental sensors measure temperature, humidity, eCO2, VOCs and PM2.5, and a PIR sensor is included.
The IFP7563-2C fits enterprise and higher-education rooms that combine hybrid meetings, interactive lessons and brainstorming. Write Away enables pen-on-paper annotation. Its software includes myViewBoard for Android and Windows, TeamOne for real-time collaboration, AirSync for wireless casting and Manager for remote device management. Compared with the IFP7563-1C, it has double the RAM, at 32 GB rather than 16 GB.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
PCAP
- 50-point PCAP touch
- Write Away
- Android 15 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
50-point PCAP touch
50-point touch on Windows and Android with palm rejection.
02
Write Away
Pen-on-paper annotation with passive and active pen support.
03
Android 15 platform
EDLA-certified Android 15 with an octa-core processor and 32 GB RAM.
04
Environmental sensors
Temperature, humidity, eCO2, VOC and PM2.5 sensors, plus a PIR sensor.
05
Software suite
myViewBoard, TeamOne, AirSync and Manager software included.
06
NFC sign-in
NFC tap-to-sign-in for shared settings.
07
Camera-ready top port
USB 3.2 Gen 1 port with PD 15 W to support camera mounting.
08
4K UHD panel
3840 x 2160 display with 1.07 billion colors and 178° viewing angles.
Specifications
30 specificationsGeneral
Key Features50-point PCAP touch, palm rejection, Write Away pen-on-paper, EDLA certified, Android 15, 32 GB RAM, environmental sensors, AirSync and TeamOne software
ModelIFP7563-2C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size3.8 / 3.8 / 11.3 / 32.5 mm
Brightness450 nits
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio5,000:1
Panel TechnologyADS (TFT LCD with DLED backlight)
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points50-point multi-touch (Windows and Android)
Touch Resolution32767 x 32767
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 15
ProcessorOcta-core (4 x Cortex-A76 + 4 x Cortex-A55)
RAM32 GB LPDDR
Storage128 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort × 1, Audio In × 1, Audio Out × 1, RS232 × 1, MicroSD × 1, OPS slot × 1, WiFi slot × 1, RJ45 × 2, USB-C × 3, USB 3.2 Gen 1 × 4, USB 2.0 × 2, USB 3.0 × 2
USB-C Ports3 (front and rear with DP 1.2, touch and PD 65 W or 100 W; top camera port with PD 15 W)
Power
Power Consumption101.1 W (on), below 0.5 W (off)
Physical
Dimensions1714.3 x 1032.4 x 79.1 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, anti-glare, anti-fingerprint and anti-bacterial
VESA Mount800 x 400 mm
Weight56.1 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K PCAP Interactive Flat Panel – IFP7563-2C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP7563-2C?
The IFP7563-2C is a 75-inch 4K UHD interactive flat panel with 50-point PCAP touch. It is EDLA certified, runs Android 15 and has 32 GB of RAM for demanding multitasking.
How does the IFP7563-2C differ from the IFP7563-1C?
The two models share the same 75-inch 4K panel, 50-point PCAP touch and Android 15 platform. The IFP7563-2C has 32 GB of LPDDR RAM, while the IFP7563-1C has 16 GB. Check the model code when you order.
Does the IFP7563-2C support pen writing with palm rejection?
Yes. The panel supports both passive and active pens and includes palm rejection. Its Write Away feature enables pen-on-paper annotation, and the 50-point PCAP touch layer supports multi-touch on Windows and Android.
What software is included with the IFP7563-2C?
The panel includes myViewBoard for Android and myViewBoard for Windows, which is embedded in the optional VPC. It also includes TeamOne for real-time collaboration, AirSync for wireless casting and Manager for remote device management.
How is the IFP7563-2C mounted?
The panel uses an 800 x 400 mm VESA wall-mount pattern and weighs 56.1 kg net. Use a bracket rated for that weight and confirm the wall structure before installation.
