ViewSonicInteractive Flat PanelsSKU IFP7553

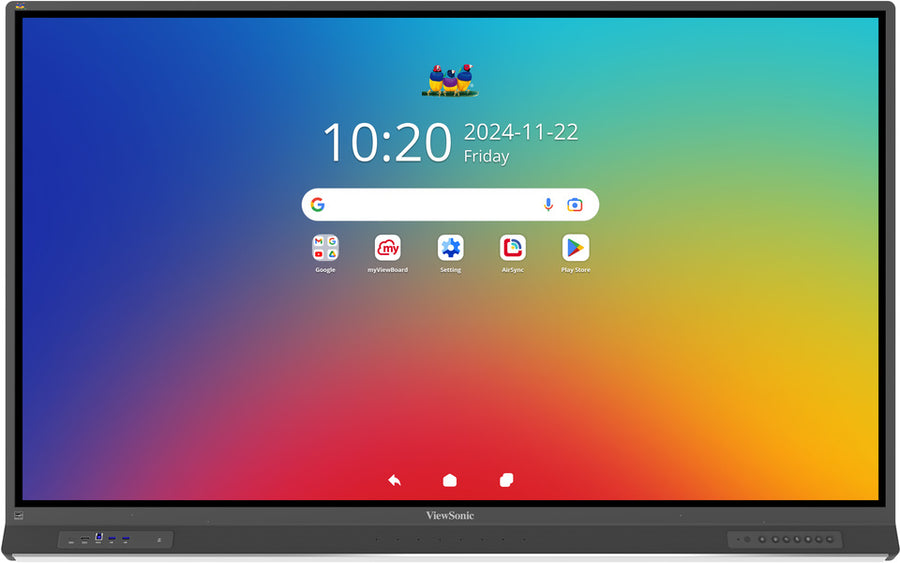

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7553
The ViewSonic IFP7553 is a 75-inch 4K UHD interactive display for classrooms and collaborative spaces. It runs Android 14 with myViewBoard, has 16 GB RAM and 128 GB storage, and supports NFC sign-in. Procure.ae supplies the ViewSonic IFP7553 across the UAE.
The ViewBoard IFP7553 is a 75-inch 4K UHD display with a DLED-backlit TFT LCD panel, 450 nits typical brightness and a 5,500:1 typical contrast ratio. Its 6.5 ms response time and 178° horizontal and vertical viewing angles keep the image clear across the room. An octa-core processor, 16 GB of RAM and 128 GB of storage run Android 14 with myViewBoard. Ultra Fine Touch supports 40 points on Windows and 20 points on Android. NFC card sign-in and single sign-on provide quick access to personalized launchers and cloud storage.
The IFP7553 suits classrooms and collaborative spaces where teachers and students share one display. The shortcut sidebar supports quick-start multitasking, and quick-start annotation lets users switch between four colors. The integrated ViewSonic Education Software supports lesson delivery. AirSync handles wireless presentation, and Manager supports remote device management. Its 800 x 400 mm VESA pattern suits a wall bracket.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Ultra Fine Touch (UFT)
- Ultra Fine Touch
- Android 14 platform
- NFC sign-in
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
40-point touch on Windows and 20-point touch on Android.
02
Android 14 platform
Octa-core processor with 16 GB RAM and 128 GB storage.
03
NFC sign-in
NFC card sign-in and single sign-on for personal launchers and cloud storage.
04
Quick-start annotation
Four pen colors that switch rapidly during lessons.
05
Shortcut sidebar
Quick-start multitasking to launch lessons faster.
06
AirSync casting
Wireless presentation with AirSync, managed through the Manager software.
07
4K UHD display
3840 x 2160 panel with 450 nits typical brightness.
08
Light and pen sensors
Built-in light sensor and pen sensor.
Specifications
29 specificationsGeneral
Key FeaturesAndroid 14 with myViewBoard, NFC sign-in, AirSync wireless casting, Manager device management, 16 GB RAM, 128 GB storage, light and pen sensors, 4K UHD
ModelIFP7553
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits
Color Depth1.07 billion colors
Contrast Ratio5,500:1
Panel TechnologyTFT LCD with DLED backlight
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points40-point (Windows) / 20-point (Android) multi-touch
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core
RAM16 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort × 1, RGB/VGA × 1, RS232 × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB-C × 3, USB 3.2 Gen 1 × 7, USB 2.0 × 1
USB-C Ports3 (PD 100 W, PD 65 W and PD 15 W)
Power
Power Consumption101.77 W (on), below 0.5 W (off)
Physical
Dimensions1707 x 1059.2 x 118.4 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 400 mm
Weight51.7 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7553 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP7553?
The ViewSonic IFP7553 is a 75-inch 4K UHD ViewBoard interactive display from the IFP53 Series. It uses Ultra Fine Touch, runs Android 14 and includes myViewBoard annotation software for lessons and meetings.
How much memory and storage does the IFP7553 have?
The IFP7553 has 16 GB of RAM and 128 GB of storage. The octa-core processor supports quick-start multitasking through the shortcut sidebar, and the panel runs Android 14 with myViewBoard.
Does the IFP7553 support NFC sign-in?
Yes. The panel includes an NFC reader for card sign-in and single sign-on. That gives quick access to personalized launchers and cloud storage on shared devices, which suits classrooms where several users share one panel. Procure.ae can advise on setup across the UAE.
What room size suits a 75-inch interactive display?
A 75-inch panel suits classrooms and meeting rooms where viewers sit several metres from the screen. The right size depends on viewing distance, so Procure.ae can review the room layout with you before you order.
How is the IFP7553 mounted?
The panel uses an 800 x 400 mm VESA wall-mount pattern and weighs 51.7 kg net. Use a bracket rated for that weight and confirm the wall structure before installation.
