Dahua Ultra-HD 4K Video Wall Decoder – NVD0105DH-4K

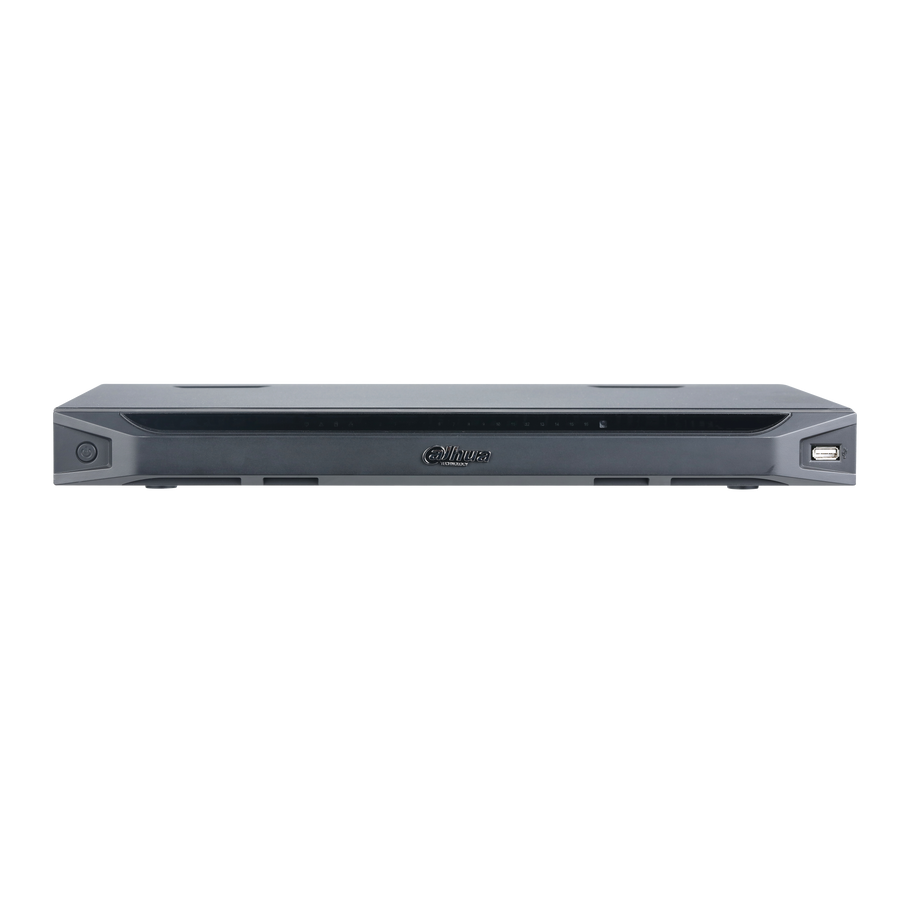

The Dahua NVD0105DH-4K is a 1U network video decoder for video walls and operator viewers. It decodes H.265+ and H.264 streams and drives one 4K HDMI or VGA output, with split layouts up to 64 windows. Procure.ae supplies the NVD0105DH-4K across the UAE.
The decoder supports H.265+, H.265, H.264, MPEG4 and MJPEG video. Its decoding capacity is 1 channel at 32 MP (25 fps), 3 channels at 12 MP (15 fps), 4 channels at 8 MP, 16 channels at 1080p, 36 channels at 720p or 64 channels at D1. A single HDMI/VGA output can show 4K Ultra HD through the HDMI port. The unit supports split display from 1 to 64 windows, alarm input, and RS-232 and RS-485 control. Audio uses PCM and G.711, with a bi-directional talk channel on RCA in and out.
The NVD0105DH-4K suits control rooms, operator viewing stations and video wall installations where one 4K screen shows several camera feeds. The manufacturer designs it for standalone operator viewers. It runs embedded Linux, connects to the network over an RJ45 port, and can be controlled through RS-232 and RS-485. The 1U chassis draws up to 20 W from a 12 V DC supply.
Resolution
3840 x 2160 (4K UHD)
Type
Video Wall Decoder
Weight
3.2 kg
- 4K HDMI output
- H.265+ decoding
- 32 MP single-channel decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K HDMI output
one HDMI or VGA output supports Ultra HD 4K at 3840 x 2160 (30 fps).
02
H.265+ decoding
decodes H.265+, H.265, H.264, MPEG4 and MJPEG video streams.
03
32 MP single-channel decoding
one channel at 32 MP (25 fps) or 16 channels at 1080p.
04
Split display layouts
1, 4, 9, 16, 25, 36 and 64 display split modes.
05
Alarm and serial control
alarm input plus RS-232 and RS-485 ports for control.
06
Local GUI
operated directly with a mouse through the local graphical interface.
07
Bi-directional talk
one RCA in and out channel with PCM and G.711 audio formats.
08
1U compact chassis
440 x 322.8 x 44 mm, 3.2 kg and up to 20 W power consumption.
Specifications
15 specificationsGeneral
Key FeaturesH.265+ decoding, 4K HDMI output, split layouts up to 64 windows, alarm input, RS-232 and RS-485 control, mouse-operated local GUI, PCM and G.711 audio, 1U chassis
ModelNVD0105DH-4K
TypeVideo Wall Decoder
Display
Resolution3840 x 2160 (4K UHD)
Performance
Operating SystemEmbedded Linux
ProcessorEmbedded processor
Audio
Audio CodecsPCM, G.711
Connectivity
Input VoltageDC 12 V, 3.3 A
PortsHDMI or VGA Out × 1, RJ45 Network × 1, RS-232 × 1, RS-485 × 1, RCA Audio In and Out × 1
Power
Power Consumption20 W (maximum)
Physical
Dimensions440 x 322.8 x 44 mm (W x D x H)
Operating Humidity10% to 90% RH
Operating Temperature-10 to 55 °C
Rack Units1U
Weight3.2 kg
Downloads
Manufacturer documents for the Dahua Ultra-HD 4K Video Wall Decoder – NVD0105DH-4K — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the NVD0105DH-4K support 4K output?
Yes. The NVD0105DH-4K supports 4K output at 3840 x 2160 (30 fps) over HDMI. The single output is HDMI or VGA, so a 4K display needs an HDMI connection, with VGA as the alternative output option.
How many camera streams can it decode?
The manufacturer lists 1 channel at 32 MP (25 fps), 3 channels at 12 MP (15 fps), 4 channels at 8 MP, 16 channels at 1080p, 36 channels at 720p and 64 channels at D1 decoding.
Which video codecs does it support?
It decodes H.265+, H.265, H.264, MPEG4 and MJPEG video, and its audio formats are PCM and G.711. The manufacturer specifications do not list other video codecs for this model, so confirm compatibility with your camera or recorder before ordering.
Can it be mounted in a rack?
The NVD0105DH-4K is a 1U unit measuring 440 x 322.8 x 44 mm (W x D x H) and weighing 3.2 kg. The manufacturer specifications do not state a rack-mount kit or VESA mounting option.
Can it control displays or other equipment?
Yes. It has one RS-232 port and one RS-485 port, plus alarm support for control and integration. Local operation is available through its GUI, which supports direct mouse control, and an RJ45 network port connects it to the network.
