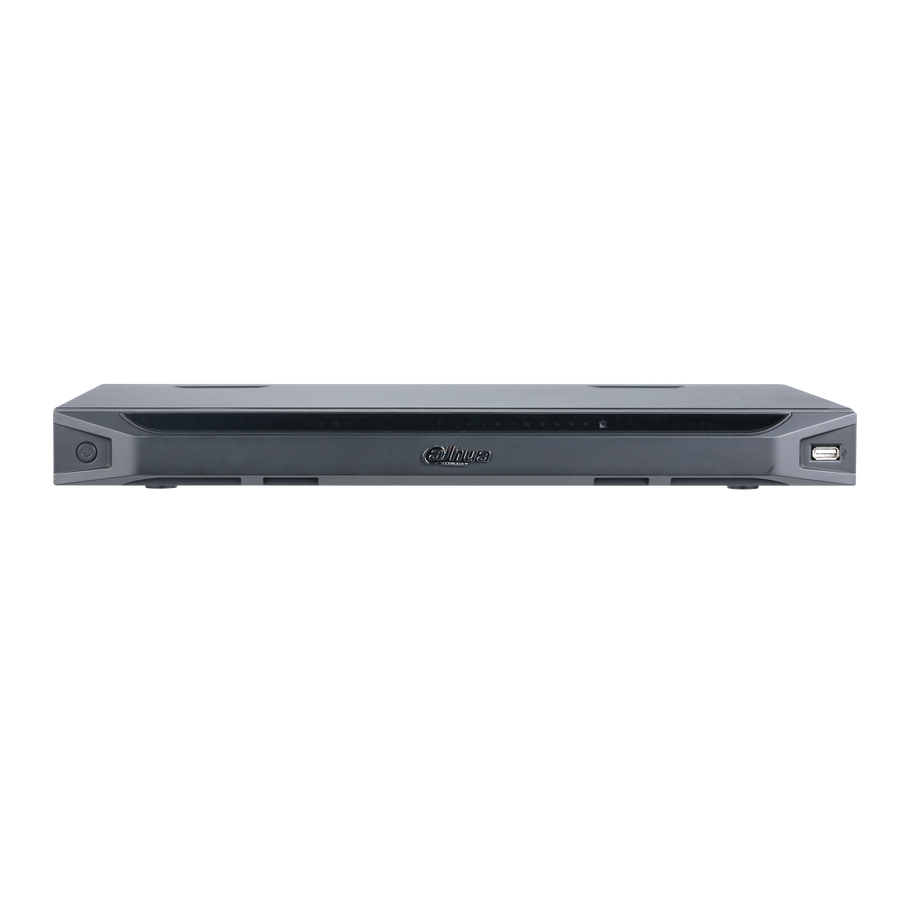

Dahua Ultra-HD 4K Video Wall Decoder – NVD0105DH-4K

The Dahua NVD0105DH-4K is a 1U network video decoder for video walls and operator viewers. It decodes H.265+ and H.264 streams and drives one 4K HDMI or VGA output, with split layouts up to 64 windows. Procure.ae supplies the NVD0105DH-4K across the UAE.

The decoder supports H.265+, H.265, H.264, MPEG4 and MJPEG video. Its decoding capacity is 1 channel at 32 MP (25 fps), 3 channels at 12 MP (15 fps), 4 channels at 8 MP, 16 channels at 1080p, 36 channels at 720p or 64 channels at D1. A single HDMI/VGA output can show 4K Ultra HD through the HDMI port. The unit supports split display from 1 to 64 windows, alarm input, and RS-232 and RS-485 control. Audio uses PCM and G.711, with a bi-directional talk channel on RCA in and out.

The NVD0105DH-4K suits control rooms, operator viewing stations and video wall installations where one 4K screen shows several camera feeds. The manufacturer designs it for standalone operator viewers. It runs embedded Linux, connects to the network over an RJ45 port, and can be controlled through RS-232 and RS-485. The 1U chassis draws up to 20 W from a 12 V DC supply.
