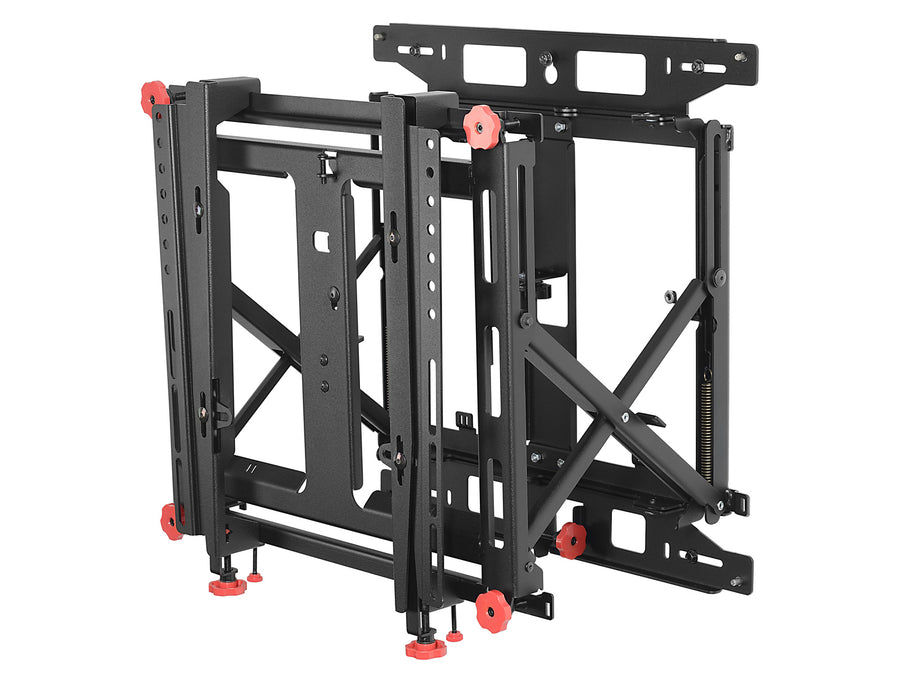

Sharp Quick Release Video Wall Mount 46-55-inch – PD04VW QR 46-55
The Sharp PD04VW QR 46-55 is a quick release video wall mount for Sharp 46- to 55-inch displays, installable in landscape or portrait. It is rated for 56.8 kg, uses a 400 x 400 mm VESA pattern and offers 38 mm adjustment on three axes. Procure.ae supplies this Sharp video wall mount across the UAE.
The quick release design allows front service of the installed display. The mount has a maximum load of 56.8 kg and a 38 mm adjustment on the x, y and z axes. Its dimensions are 540 x 540 x 80 to 351 mm, with a maximum extension of 351 mm and a minimum depth of 80 to 118 mm. The bracket weighs 13.2 kg and ships with adapter brackets, the mount and mounting hardware.
The mount suits single displays and video wall setups in landscape or portrait orientation. It is listed for the same Sharp connector kits as the manual front service model, including CK04UN49S, CK04UN552A, CK04UX552S and CK4UN462A. The listed certifications are RoHS and UL, and the manufacturer lists a 5-year warranty. Procure.ae supplies the mount for projects across the UAE and the wider MEA region.
Type
Video Wall Mount
Weight
13.2 kg
- Quick release
- 56.8 kg load capacity
- 38 mm axis adjustment
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Quick release
front service with quick release for displays in the 46- to 55-inch range.
02
56.8 kg load capacity
rated for a maximum load of 56.8 kg.
03
38 mm axis adjustment
adjustment on the x, y and z axes for aligning displays.
04
Landscape or portrait
mounts Sharp displays in either orientation.
05
VESA 400 x 400
a 400 x 400 mm mounting pattern.
06
5-year warranty
a manufacturer warranty of 5 years, with RoHS and UL listing.
Specifications
17 specificationsGeneral
Key FeaturesQuick release, Front service, 56.8 kg load capacity, 38 mm adjustment on x, y and z axes, Landscape or portrait, 80 to 118 mm minimum depth
ModelVideo Wall Mount PD04VW QR 46 55
TypeVideo Wall Mount
What's in the BoxAdapter brackets; mount; mounting hardware
Display
OrientationLandscape; Portrait
Supported Screen Sizes46 to 55 inch
Physical
Adjustability38 mm adjustment on x, y and z axes
Dimensions540 x 540 x 80 to 351 mm
Extension351 mm
Load Capacity56.8 kg
MountingSingle display or video wall setup
Shipping Dimensions768 x 594 x 92 mm
Shipping Weight14.5 kg
VESA Mount400 x 400 mm
Weight13.2 kg
Compliance
CertificationsRoHS; UL listed
Warranty5 years
Downloads
Manufacturer documents for the Sharp Quick Release Video Wall Mount 46-55-inch – PD04VW QR 46-55 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the PD04VW QR 46-55 suit?
The manufacturer recommends it for 46- to 55-inch displays. It notes this is only a recommendation, so check the display's size, weight and VESA pattern against the mount's 56.8 kg load capacity and 400 x 400 mm pattern before ordering.
What does quick release mean for this mount?
Quick release is listed as a feature alongside front service, which allows the installed display to be serviced from the front of the wall. The mount is also rated for up to 56.8 kg and has a 38 mm adjustment range on three axes.
Can the mount be installed in portrait orientation?
Yes. The mount supports landscape and portrait orientation for single displays and video wall setups. Its frame measures 540 x 540 mm, with a minimum depth of 80 to 118 mm, so check the wall depth before installation.
