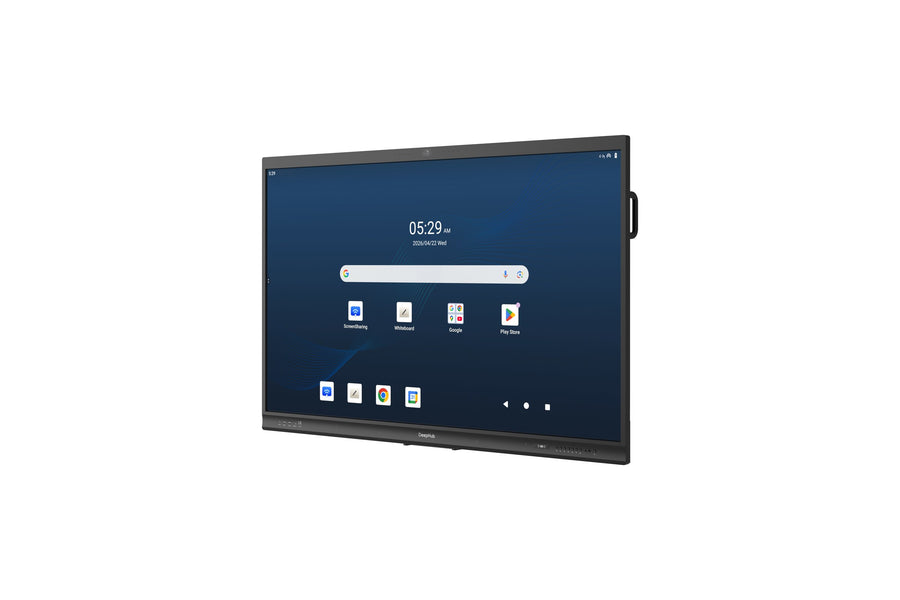

Dahua MC470-C 65-inch Interactive Flat Panel – LPH65-MC470-C-S3
The Dahua LPH65-MC470-C-S3 is a 65-inch 4K interactive flat panel running Android 16, with infrared touch supporting 50 points and a 52 MP camera. It suits meeting and classroom spaces, with 400 nits brightness, an 8-array microphone and 2 × 20 W speakers. Procure.ae supplies the Dahua LPH65-MC470-C-S3 across the UAE.
The panel has a 3840 x 2160 display with DLED backlight, 400 nits brightness, a 1,500:1 static contrast ratio, 90% NTSC color and 178-degree viewing angles, and a 60 Hz refresh rate. Infrared touch supports 50 points on Android and 50 on Windows, with a valid touch distance of 1.5 mm and accuracy of ±0.5 mm across 90% of the area. The 3 mm anti-dazzle tempered glass sits under eight front buttons, including volume, curtain and touch lock. Android 16 runs on a quad-core A53 and quad-core A72 processor with 8 GB RAM and 128 GB ROM.
The panel includes a 52 MP camera with face detection and an 8-array microphone with 8 m to 12 m pickup, echo cancellation and intelligent noise filtering, plus two 20 W speakers. Its Wi-Fi 6 access point works on 2.4 GHz and 5 GHz, with Bluetooth 5.4 and NFC included. The rear panel has two HDMI inputs, a DisplayPort input and two RJ-45 ports. It mounts on a wall with a 500 x 400 mm pattern or on a mobile bracket, Procure.ae supplies the LPH65-MC470-C-S3 for installation across the UAE.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD display
- Android 16 platform
- Infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution on a 65-inch 16:9 panel at 400 nits.
02
Android 16 platform
Quad-core A53 and A72 processors with 8 GB RAM and 128 GB ROM.
03
Infrared touch
50 points on Android and Windows, with a 1.5 mm valid touch distance.
04
Writing surface
Finger and magnetic stylus input on 3 mm anti-dazzle tempered glass.
05
Camera
52 MP camera with face detection and auto white balance.
06
Audio
8-array microphone with 8 m to 12 m pickup and 2 × 20 W speakers.
07
Wireless
Wi-Fi 6 access point, Bluetooth 5.4 and NFC.
08
Mounting
Wall mount at a 500 x 400 mm hole pattern, or a mobile bracket.
Specifications
42 specificationsGeneral
Key FeaturesAndroid 16, 4K UHD, 50-point touch, 52 MP camera with face detection, 8-array microphone, 2 × 20 W speakers, Wi-Fi 6 access point, Bluetooth 5.4
ModelLPH65-MC470-C-S3
TypeInteractive Flat Panel
What's in the BoxSmart display, 2 stylus pens, wall-mount bracket, wireless plug-in module, power cord, quick start guide, expansion tube and screw set, remote control
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Camera52 MP, face detection
Color Gamut90% NTSC
Contrast Ratio1,500:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Touch Accuracy±0.5 mm (covers 90% of the area)
Touch Points50 points (Android and Windows)
Touch Resolution32,767 x 32,767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 16.0; external module Windows 11 or Android
ProcessorQuad-core A53 + quad-core A72
RAM8 GB
Storage128 GB ROM
Storage Conditions-20 to 60 °C, 0% to 93% RH, 101 kPa
Audio
Microphone8 arrays, 8 m to 12 m pickup
Speaker Output2.0 channel, 2 × 20 W
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI IN × 3; HDMI OUT × 1; Type-C × 2; DP IN × 1; USB 3.0 × 4; USB 2.0 × 1; RJ-45 × 2; SD card slot (up to 512 GB); RS-232; SPDIF out; line in and line out; VGA in
Wi-Fi802.11b/g/n/a/ac/ax, Wi-Fi 6 access point (2.4 GHz and 5 GHz)
Power
Power Consumption100 W (basic); 300 W (max)
Standby Power≤0.5 W
Physical
ColorBlack on left and right, dark blue on top and bottom
Dimensions1485.4 x 942.2 x 115.7 mm
MountingWall mount or mobile bracket
Operating Humidity0% to 93% RH, 101 kPa
Operating Temperature0 to 40 °C
Shipping Weight45.2 kg
Surface Protection3 mm anti-dazzle tempered glass
VESA Mount500 x 400 mm
Weight38 kg
Compliance
CertificationsCE, CB, EDLA
IP RatingIP20
Downloads
Manufacturer documents for the Dahua MC470-C 65-inch Interactive Flat Panel – LPH65-MC470-C-S3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LPH65-MC470-C-S3 run Windows as well as Android?
Yes, with an external module. The manufacturer lists Windows 11 or Android as the operating system of the external module, while the panel itself runs Android 16.0. The touch surface supports 50 points on Android and 50 points on Windows.
What brightness and contrast does the LPH65-MC470-C-S3 offer?
It offers 400 nits brightness and a 1,500:1 static contrast ratio on a 65-inch 4K panel, with 90% NTSC color and 178-degree viewing angles in both directions. The refresh rate is 60 Hz.
Does it support 50 touch points, and how accurate is the touch?
Yes. Infrared touch supports 50 points on Android and 50 points on Windows, with a valid touch distance of 1.5 mm and an accuracy of ±0.5 mm covering 90% of the area. Writing works with a finger or a magnetically attached stylus.
Does the panel include a camera with face detection?
Yes. The panel has a 52 MP camera with face detection and auto white balance, and a light sensor is also fitted. The manufacturer lists a maximum camera resolution of 3840 x 2160.
Can the panel be wall mounted, and what hole pattern does it use?
Yes. It mounts on a wall with a 500 x 400 mm hole pattern or on a mobile bracket, and a wall-mount bracket is included in the box. Its dimensions are 1485.4 x 942.2 x 115.7 mm, with a net weight of 38 kg.
