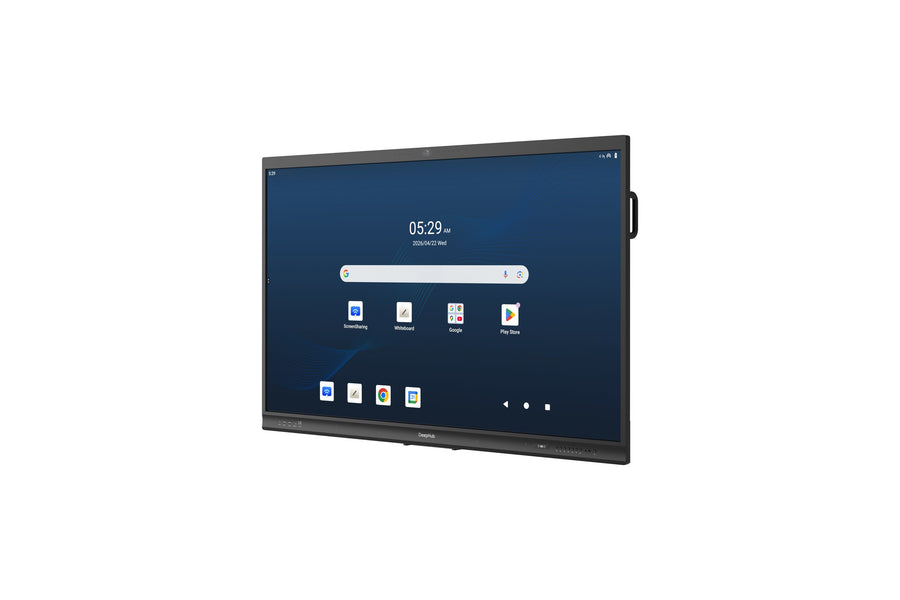

Dahua MC470-C 65-inch Interactive Flat Panel – LPH65-MC470-C-S3

Dahua MC470-C 65-inch Interactive Flat Panel – LPH65-MC470-C-S3

The Dahua LPH65-MC470-C-S3 is a 65-inch 4K interactive flat panel running Android 16, with infrared touch supporting 50 points and a 52 MP camera. It suits meeting and classroom spaces, with 400 nits brightness, an 8-array microphone and 2 × 20 W speakers. Procure.ae supplies the Dahua LPH65-MC470-C-S3 across the UAE.

The panel has a 3840 x 2160 display with DLED backlight, 400 nits brightness, a 1,500:1 static contrast ratio, 90% NTSC color and 178-degree viewing angles, and a 60 Hz refresh rate. Infrared touch supports 50 points on Android and 50 on Windows, with a valid touch distance of 1.5 mm and accuracy of ±0.5 mm across 90% of the area. The 3 mm anti-dazzle tempered glass sits under eight front buttons, including volume, curtain and touch lock. Android 16 runs on a quad-core A53 and quad-core A72 processor with 8 GB RAM and 128 GB ROM.

The panel includes a 52 MP camera with face detection and an 8-array microphone with 8 m to 12 m pickup, echo cancellation and intelligent noise filtering, plus two 20 W speakers. Its Wi-Fi 6 access point works on 2.4 GHz and 5 GHz, with Bluetooth 5.4 and NFC included. The rear panel has two HDMI inputs, a DisplayPort input and two RJ-45 ports. It mounts on a wall with a 500 x 400 mm pattern or on a mobile bracket, Procure.ae supplies the LPH65-MC470-C-S3 for installation across the UAE.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
38 kg

Key features

01
4K UHD display
3840 x 2160 resolution on a 65-inch 16:9 panel at 400 nits.
02
Android 16 platform
Quad-core A53 and A72 processors with 8 GB RAM and 128 GB ROM.
03
Infrared touch
50 points on Android and Windows, with a 1.5 mm valid touch distance.
04
Writing surface
Finger and magnetic stylus input on 3 mm anti-dazzle tempered glass.
05
Camera
52 MP camera with face detection and auto white balance.
06
Audio
8-array microphone with 8 m to 12 m pickup and 2 × 20 W speakers.
07
Wireless
Wi-Fi 6 access point, Bluetooth 5.4 and NFC.
08
Mounting
Wall mount at a 500 x 400 mm hole pattern, or a mobile bracket.

Specifications

General
Key FeaturesAndroid 16, 4K UHD, 50-point touch, 52 MP camera with face detection, 8-array microphone, 2 × 20 W speakers, Wi-Fi 6 access point, Bluetooth 5.4
ModelLPH65-MC470-C-S3
TypeInteractive Flat Panel
What's in the BoxSmart display, 2 stylus pens, wall-mount bracket, wireless plug-in module, power cord, quick start guide, expansion tube and screw set, remote control
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Camera52 MP, face detection
Color Gamut90% NTSC
Contrast Ratio1,500:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Touch Accuracy±0.5 mm (covers 90% of the area)
Touch Points50 points (Android and Windows)
Touch Resolution32,767 x 32,767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 16.0; external module Windows 11 or Android
ProcessorQuad-core A53 + quad-core A72
RAM8 GB
Storage128 GB ROM
Storage Conditions-20 to 60 °C, 0% to 93% RH, 101 kPa
Audio
Microphone8 arrays, 8 m to 12 m pickup
Speaker Output2.0 channel, 2 × 20 W
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI IN × 3; HDMI OUT × 1; Type-C × 2; DP IN × 1; USB 3.0 × 4; USB 2.0 × 1; RJ-45 × 2; SD card slot (up to 512 GB); RS-232; SPDIF out; line in and line out; VGA in
Wi-Fi802.11b/g/n/a/ac/ax, Wi-Fi 6 access point (2.4 GHz and 5 GHz)
Power
Power Consumption100 W (basic); 300 W (max)
Standby Power≤0.5 W
Physical
ColorBlack on left and right, dark blue on top and bottom
Dimensions1485.4 x 942.2 x 115.7 mm
MountingWall mount or mobile bracket
Operating Humidity0% to 93% RH, 101 kPa
Operating Temperature0 to 40 °C
Shipping Weight45.2 kg
Surface Protection3 mm anti-dazzle tempered glass
VESA Mount500 x 400 mm
Weight38 kg
Compliance
CertificationsCE, CB, EDLA
IP RatingIP20
