DahuaInteractive Flat PanelsSKU LCH65-MC410-B-S2

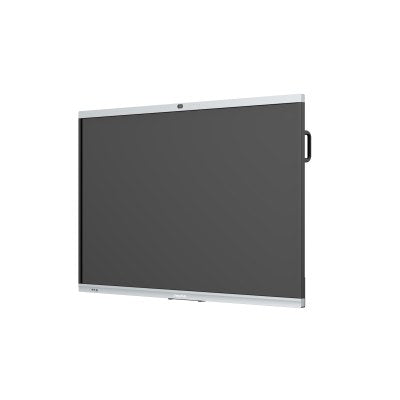

Dahua MC410-B-S2 65-inch Interactive Flat Panel – LCH65-MC410-B-S2
The Dahua LCH65-MC410-B-S2 is a 65-inch interactive flat panel with a 4K UHD display, Android 14 and infrared touch supporting 32 points. It suits business and education rooms that need touch collaboration, with an 8-array microphone and 2 × 15 W speakers built in. Procure.ae supplies the Dahua LCH65-MC410-B-S2 across the UAE.
The panel has a 3840 x 2160 display with DLED backlight, 350 nits typical brightness, a 1,200:1 typical static contrast ratio and 178-degree viewing angles. Infrared touch reads 32 points on Android and 40 points on Windows, with a valid touch distance of 2 mm across over 90% of the touch area. Writing works with a finger or a magnetically attached stylus, and the 3.2 mm anti-dazzle tempered glass is rated at 9H surface hardness. Android 14 runs on a quad-core A55 processor with 8 GB RAM and 64 GB storage.
An 8-array microphone with 8 m to 12 m long-range pickup, echo cancellation and intelligent noise filtering sits alongside two 15 W front speakers, which suits rooms where the panel also carries audio for calls or presentations. Wi-Fi works as station and access point, Bluetooth 5.2 is included, and two HDMI 2.0 inputs support 4K at 60 Hz. The unit mounts on a wall with a 500 x 400 mm pattern or on a mobile bracket. Procure.ae supplies the LCH65-MC410-B-S2 for installation across the UAE.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared
- 4K UHD display
- Android 14 platform
- Infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution with 178-degree viewing angles.
02
Android 14 platform
Quad-core A55 processor, 8 GB RAM and 64 GB storage.
03
Infrared touch
32 touch points on Android and 40 on Windows.
04
Writing
Finger or magnetic stylus input on 3.2 mm anti-dazzle tempered glass rated 9H.
05
Microphone array
8 arrays with 8 m to 12 m pickup, echo cancellation and noise filtering.
06
Speakers
Two front speakers rated 2 × 15 W in a 2.0 channel configuration.
07
Wireless
Wi-Fi station and access point plus Bluetooth 5.2.
08
Mounting
Wall mount at a 500 x 400 mm hole pattern, or a mobile bracket.
Specifications
38 specificationsGeneral
Key FeaturesAndroid 14, 4K UHD, 32-point touch on Android, 8-array microphone, 2 × 15 W speakers, Wi-Fi access point, Bluetooth 5.2, Windows module support
ModelLCH65-MC410-B-S2
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical)
CameraAndroid: 48 MP photo, 4 MP video; Windows: 4 MP photo and video
Color Gamut≥72% NTSC
Contrast Ratio1,200:1 (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size65 inch
Touch Points32 points (Android), 40 points (Windows)
Touch Resolution32,767 x 32,767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core A55
RAM8 GB
Storage64 GB ROM
Storage Conditions-20 to 60 °C, 10% to 90% RH, non-condensing
Audio
Microphone8 arrays, 8 m to 12 m pickup
Speaker Output2.0 channel, 2 × 15 W
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2 (4K@60 Hz); USB 3.2 Gen1 Type-A × 1; USB 2.0 Type-A × 1; Type-C × 1 (USB 2.0 device, 5 W charging); RJ-45 × 1; 3.5 mm line out × 1; touch port × 1
Wi-Fi802.11b/g/n/a/ac/ax, station and access point
Power
Power Consumption117.5 W (basic); 230 W (max)
Standby Power≤0.5 W
Physical
ColorBlack sides, starry gray top and bottom
Dimensions1485.4 x 913 x 115.9 mm
MountingWall mount; mobile bracket
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Weight43.9 kg
VESA Mount500 x 400 mm
Weight38 kg
Downloads
Manufacturer documents for the Dahua MC410-B-S2 65-inch Interactive Flat Panel – LCH65-MC410-B-S2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LCH65-MC410-B-S2 support touch on both Android and Windows?
Yes. The infrared touch supports 32 touch points on Android and 40 points on Windows. The manufacturer lists a valid touch distance of 2 mm over more than 90% of the touch area, with finger or magnetic pen writing.
What resolution and brightness does the LCH65-MC410-B-S2 offer?
It has 3840 x 2160 (4K UHD) resolution on a 65-inch 16:9 display with 350 nits typical brightness and a 1,200:1 typical static contrast ratio. The refresh rate is 60 Hz and the response time is 8 ms typical.
Can the panel be wall mounted, and what hole pattern does it use?
Yes. The panel supports wall mounting with a 500 x 400 mm hole pattern, and a mobile bracket is also listed. The product dimensions are 1485.4 x 913 x 115.9 mm with a net weight of 38 kg, so confirm the wall or bracket can carry it.
Does it have built-in Wi-Fi and Bluetooth?
Yes. Wi-Fi runs on 802.11b/g/n/a/ac/ax in both station and access point modes, and Bluetooth 5.2 is included. The manufacturer lists no NFC on this model, so NFC-based unlocking is not part of its specification.
Can the panel be used with a Windows PC?
Yes, with an external Windows module. The manufacturer lists Windows 7, 8, 10 and 11 as supported operating systems for the external module, and the touch surface supports 40 points on Windows.
