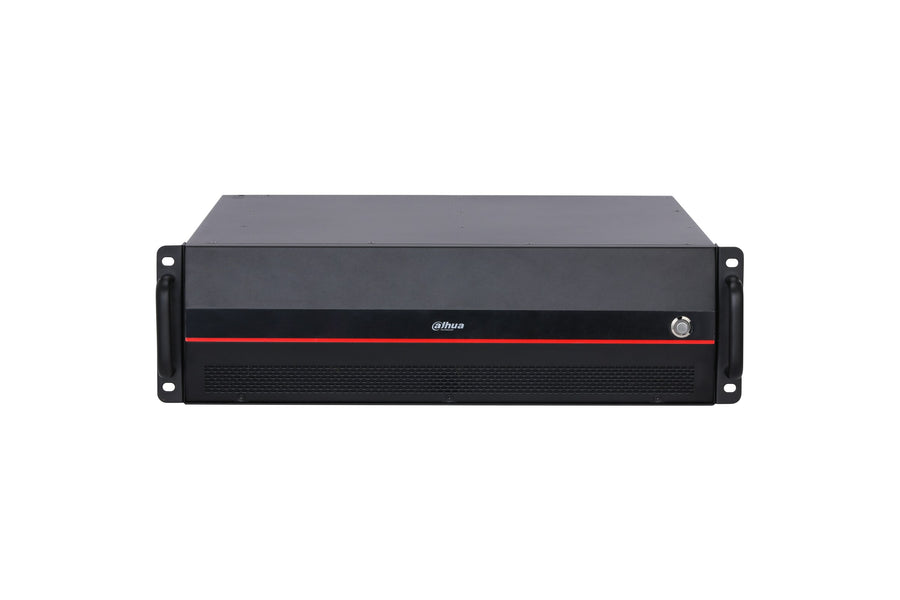

Dahua 3U Video Matrix Platform Video Wall Decoder – N70(04H16H)
The Dahua N70(04H16H) is a 3U video wall decoder for surveillance and multi-screen display. It has 4 HDMI inputs, 16 HDMI outputs and supports splicing up to 16 screens. Procure.ae supplies the Dahua N70(04H16H) in the UAE, with quotes, delivery and installation support.
The N70(04H16H) runs embedded Linux on a 64-bit octa-core processor. It accepts 2 channels at 4K@60 Hz for UHD encoding or 2 channels at 1080p@60 Hz for HD encoding, and decodes up to 192 channels of 1080p@25fps. Its 16 HDMI outputs include 8 HDMI 2.0 and 8 HDMI 1.3 ports, with up to 8 channels of 4K and 8 channels of 1080p, allowing splicing across up to 16 screens. The unit also supports 1, 4, 6, 8, 9, 16, 25 and 36 splits.
The N70(04H16H) is a standard 19-inch, 3U rack-mounted server with ATCA telecommunication-grade architecture and 8 slots for audio and video cards. It has a modular design and redundant dual power supply. Interoperability covers ONVIF, RTSP, Dahua Private and Hikvision Private, and it can be managed from a webpage, PC client, mobile client, network keyboard or local GUI. Compared with the 12- and 20-output decoders, this model has 16 HDMI outputs and splices up to 16 screens.
Type
Video Wall Decoder
Weight
14.09 kg (net)
- Decoding capacity
- Video input
- HDMI outputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Decoding capacity
Decodes up to 192 channels of 1080p@25fps, plus 32MP, 16MP, 12MP, 8MP, 5MP, 3MP, 1080p, 720p and D1 streams.
02
Video input
Accepts 2 channels at 4K@60 Hz for UHD encoding, or 2 channels at 1080p@60 Hz for HD encoding.
03
HDMI outputs
Provides 16 HDMI outputs, including 8 HDMI 2.0 and 8 HDMI 1.3 ports.
04
Video wall splicing
Splices up to 16 screens, with splitting, scaling, roaming, window opening and layering.
05
Window splits
Supports 1, 4, 6, 8, 9, 16, 25 and 36 splits, plus custom split windows.
06
Scene presets
Supports up to 128 presets for scenes, with customizable layouts on the video wall.
07
Control options
Controlled through a webpage, PC client, mobile client, network keyboard or local GUI.
08
Redundant power
Redundant dual power supply, with hot-swap power modules.
Specifications
24 specificationsGeneral
ControlsLocal GUI, webpage, PC client, mobile client, network keyboard
Key FeaturesDecodes 192 channels at 1080p, Splices up to 16 screens, 16 HDMI outputs, 4 HDMI inputs, Redundant dual power, Remote control
ModelN70(04H16H)
TypeVideo Wall Decoder
Display
Screen ControlSplicing up to 16 screens
Performance
Operating SystemEmbedded Linux
Processor64-bit octa-core processor
Storage Conditions−10 to +50 °C; 10% to 90% RH, non-condensing
Audio
Audio Out3.5 mm jack
Connectivity
Ethernet2 × RJ-45 (10/100/1,000 Mbps)
Input Voltage100–240 V AC, 50–60 Hz
Inputs4 HDMI (2 × HDMI 2.0, 2 × HDMI 1.3); 2 video channels for encoding
Outputs16 HDMI (8 × HDMI 2.0, 8 × HDMI 1.3)
ProtocolsTCP, UDP, RTP, RTSP, RTCP; ONVIF, RTSP, Dahua Private, Hikvision Private
Serial PortRS-232 × 2, RS-485 × 1
USB PortsUSB 3.0 × 2
USB-C Ports1 × Type-C
Power
Power Consumption≤140 W
Physical
Dimensions484.0 x 132.0 x 477.7 mm
Mounting19-inch rack mount
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature−10 to +50 °C
Rack Units3U
Weight14.09 kg (net)
Downloads
Manufacturer documents for the Dahua 3U Video Matrix Platform Video Wall Decoder – N70(04H16H) — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the Dahua N70(04H16H) splice?
It splices up to 16 screens, with up to 8 channels of 4K and 8 channels of 1080p output through its HDMI ports. Splits of 1, 4, 6, 8, 9, 16, 25 and 36 windows are supported, along with custom split windows.
How many video sources can the Dahua N70(04H16H) take?
It accepts 2 channels at 4K@60 Hz for UHD encoding or 2 channels at 1080p@60 Hz for HD encoding, and decodes up to 192 channels of 1080p@25fps. Its 4 HDMI input ports include 2 HDMI 2.0 and 2 HDMI 1.3 ports.
Does the Dahua N70(04H16H) integrate with IP cameras and platforms?
Yes. It supports ONVIF, RTSP, Dahua Private and Hikvision Private interoperability, with TCP, UDP, RTP, RTSP and RTCP transmission. An SDK is provided for secondary development and platform integration. This suits integration with existing surveillance systems.
Is the Dahua N70(04H16H) rack-mountable, and what power does it need?
Yes. It is a standard 19-inch, 3U rack-mounted unit measuring 484.0 x 132.0 x 477.7 mm (W x H x D). It runs on 100–240 V AC, 50–60 Hz, with power consumption up to 140 W and a redundant dual power supply.
