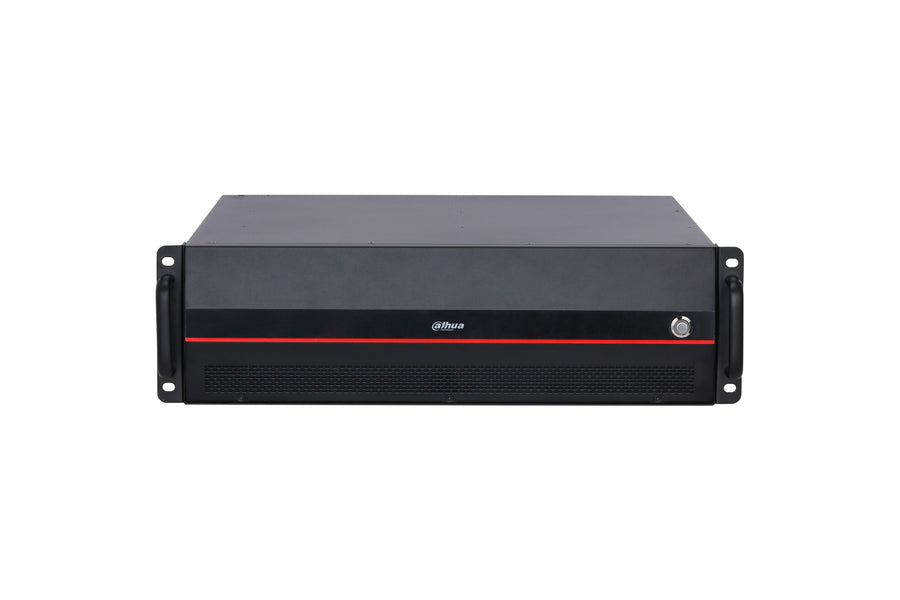

Dahua 3U Video Matrix Platform Video Wall Decoder – N70(04H16H)

The Dahua N70(04H16H) is a 3U video wall decoder for surveillance and multi-screen display. It has 4 HDMI inputs, 16 HDMI outputs and supports splicing up to 16 screens. Procure.ae supplies the Dahua N70(04H16H) in the UAE, with quotes, delivery and installation support.

The N70(04H16H) runs embedded Linux on a 64-bit octa-core processor. It accepts 2 channels at 4K@60 Hz for UHD encoding or 2 channels at 1080p@60 Hz for HD encoding, and decodes up to 192 channels of 1080p@25fps. Its 16 HDMI outputs include 8 HDMI 2.0 and 8 HDMI 1.3 ports, with up to 8 channels of 4K and 8 channels of 1080p, allowing splicing across up to 16 screens. The unit also supports 1, 4, 6, 8, 9, 16, 25 and 36 splits.

The N70(04H16H) is a standard 19-inch, 3U rack-mounted server with ATCA telecommunication-grade architecture and 8 slots for audio and video cards. It has a modular design and redundant dual power supply. Interoperability covers ONVIF, RTSP, Dahua Private and Hikvision Private, and it can be managed from a webpage, PC client, mobile client, network keyboard or local GUI. Compared with the 12- and 20-output decoders, this model has 16 HDMI outputs and splices up to 16 screens.

Type

Video Wall Decoder

Weight

14.09 kg (net)

Key features

Decoding capacity

Decodes up to 192 channels of 1080p@25fps, plus 32MP, 16MP, 12MP, 8MP, 5MP, 3MP, 1080p, 720p and D1 streams.

Video input

Accepts 2 channels at 4K@60 Hz for UHD encoding, or 2 channels at 1080p@60 Hz for HD encoding.

HDMI outputs

Provides 16 HDMI outputs, including 8 HDMI 2.0 and 8 HDMI 1.3 ports.

Video wall splicing

Splices up to 16 screens, with splitting, scaling, roaming, window opening and layering.

Window splits

Supports 1, 4, 6, 8, 9, 16, 25 and 36 splits, plus custom split windows.

Scene presets

Supports up to 128 presets for scenes, with customizable layouts on the video wall.

Control options

Controlled through a webpage, PC client, mobile client, network keyboard or local GUI.

Redundant power

Redundant dual power supply, with hot-swap power modules.

Specifications

General
Controls	Local GUI, webpage, PC client, mobile client, network keyboard
Key Features	Decodes 192 channels at 1080p, Splices up to 16 screens, 16 HDMI outputs, 4 HDMI inputs, Redundant dual power, Remote control
Model	N70(04H16H)
Type	Video Wall Decoder

Display
Screen Control	Splicing up to 16 screens

Performance
Operating System	Embedded Linux
Processor	64-bit octa-core processor
Storage Conditions	−10 to +50 °C; 10% to 90% RH, non-condensing

Audio
Audio Out	3.5 mm jack

Connectivity
Ethernet	2 × RJ-45 (10/100/1,000 Mbps)
Input Voltage	100–240 V AC, 50–60 Hz
Inputs	4 HDMI (2 × HDMI 2.0, 2 × HDMI 1.3); 2 video channels for encoding
Outputs	16 HDMI (8 × HDMI 2.0, 8 × HDMI 1.3)
Protocols	TCP, UDP, RTP, RTSP, RTCP; ONVIF, RTSP, Dahua Private, Hikvision Private
Serial Port	RS-232 × 2, RS-485 × 1
USB Ports	USB 3.0 × 2
USB-C Ports	1 × Type-C

Power
Power Consumption	≤140 W

Physical
Dimensions	484.0 x 132.0 x 477.7 mm
Mounting	19-inch rack mount
Operating Humidity	10% to 90% RH, non-condensing
Operating Temperature	−10 to +50 °C
Rack Units	3U
Weight	14.09 kg (net)
