DahuaVideo WallsSKU N70

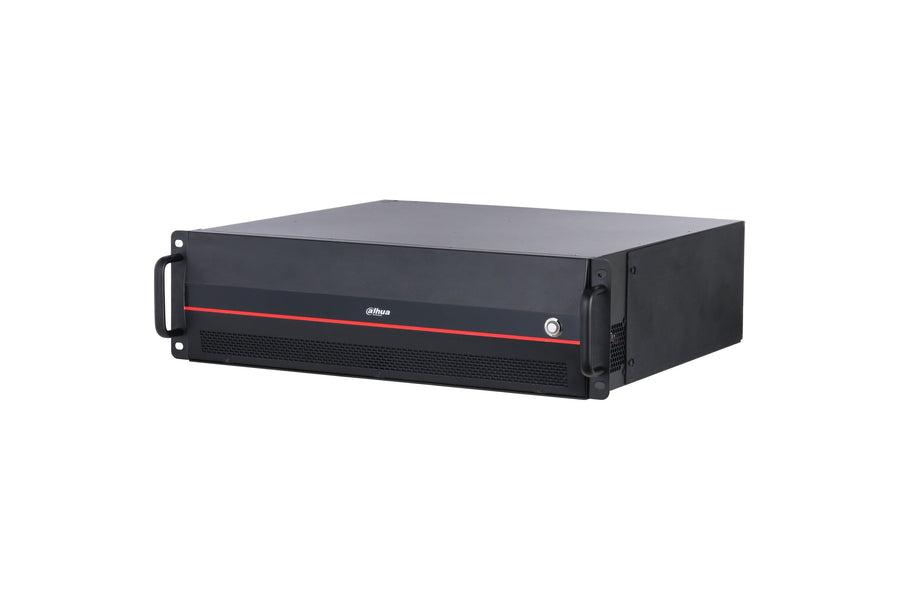

Dahua 3U Video Matrix Platform Video Wall Controller – N70
The Dahua N70 is a 3U video wall controller for surveillance and large-scale video routing. It splices up to 36 screens, decodes up to 100 channels and provides four HDMI outputs for multi-screen display. Procure.ae supplies the Dahua N70 in the UAE, with quotes, delivery and installation support.
The N70 runs embedded Linux on a 64-bit octa-core processor and accepts 2 input channels, up to 4K@60 Hz for UHD encoding or 1080p@60 Hz for HD encoding. Decoding covers up to 100 channels, such as 3 channels of 32MP@25fps, 48 channels of 2MP@25fps or 100 channels of D1@25fps at a time. The first two of its four HDMI outputs reach 4096 x 2160@60 Hz. Splicing covers up to 36 screens, with 1, 4, 6, 8, 9, 16, 25 and 36 window splits.
The N70 is a standard 19-inch, 3U rack-mounted server with ATCA-based architecture and 9 slots for audio and video cards. It has a modular design and a redundant dual power supply. Interoperability covers GB28181, ONVIF, RTSP, Dahua Private and Hikvision Private. Compared with the N70 decoder models, which offer 12 to 20 HDMI outputs, this unit has 4 HDMI outputs.
Resolution
4096 x 2160@60 Hz (first 2 HDMI por...
Type
Video Wall Controller
Weight
13 kg (net)
- Input and encoding
- Decoding capacity
- Video wall splicing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Input and encoding
Accepts 2 channels at 4K@60 Hz for UHD encoding, or 1080p@60 Hz for HD encoding.
02
Decoding capacity
Decodes up to 100 channels, including 3 channels of 32MP@25fps at a time.
03
Video wall splicing
Splices up to 36 screens, with 1, 4, 6, 8, 9, 16, 25 and 36 splits plus M x N custom splits.
04
HDMI outputs
Provides 4 HDMI outputs (2 × HDMI 2.0, 2 × HDMI 1.3), each able to output audio independently.
05
Interoperability
Supports GB28181, ONVIF, RTSP, Dahua Private and Hikvision Private protocols.
06
Window and scene control
Supports roaming, window opening, layering and up to 128 presets for scenes.
07
Control options
Controlled by local GUI, webpage, PC client, mobile client or network keyboard.
08
Redundant power
Redundant dual power supply with hot-swap power modules.
Specifications
26 specificationsGeneral
ControlsLocal GUI, webpage, PC client, mobile client, network keyboard
Key FeaturesSplices up to 36 screens, Decodes up to 100 channels, 4 HDMI outputs, GB28181 and ONVIF interoperability, Redundant dual power, Remote control
ModelN70
TypeVideo Wall Controller
Display
Resolution4096 x 2160@60 Hz (first 2 HDMI ports); custom resolutions supported
Screen ControlSplicing up to 36 screens; roaming, window opening, layering
Performance
Operating SystemEmbedded Linux
Processor64-bit octa-core processor
Storage Conditions−10 to +50 °C; 10% to 90% RH, non-condensing
Audio
Audio In2-channel HDMI embedded
Audio Out3.5 mm jack; 4 HDMI ports output audio independently
Connectivity
Ethernet2 × RJ-45 (10/100/1,000 Mbps)
Input Voltage100–127 V AC and 200–240 V AC, 50–60 Hz
Inputs2 video channels: 1 × HDMI 2.0, 1 × HDMI 1.3
Outputs4 HDMI (2 × HDMI 2.0, 2 × HDMI 1.3)
ProtocolsTCP, UDP, RTP, RTSP, RTCP; GB28181, ONVIF, RTSP, Dahua Private, Hikvision Private
Serial PortRS-232 × 2, RS-485 × 1
USB PortsUSB 3.0 × 2
USB-C Ports1 × Type-C
Power
Power Consumption≤140 W
Physical
Dimensions484.0 x 132.0 x 477.7 mm
Mounting19-inch rack mount
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature−10 to +50 °C
Rack Units3U
Weight13 kg (net)
Downloads
Manufacturer documents for the Dahua 3U Video Matrix Platform Video Wall Controller – N70 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the Dahua N70 splice?
The N70 splices up to 36 screens. It supports 1, 4, 6, 8, 9, 16, 25 and 36 window splits and custom M x N layouts, and it allows roaming, window opening and layering on the video wall.
Does the N70 work with IP cameras and third-party platforms?
Yes. It supports GB28181, ONVIF, RTSP, Dahua Private and Hikvision Private, using TCP, UDP, RTP, RTSP and RTCP transmission. An SDK is provided for secondary development and platform integration. This suits integration with existing security platforms.
How is the N70 controlled, and what are its outputs?
It can be controlled through a local GUI, webpage, PC client, mobile client or network keyboard. It has 4 HDMI outputs, including 2 HDMI 2.0 and 2 HDMI 1.3, and each output can carry audio independently.
Is the N70 rack-mountable, and what power does it need?
Yes. It is a standard 19-inch, 3U rack-mounted unit measuring 484.0 x 132.0 x 477.7 mm (W x H x D). It runs on 100–127 V AC and 200–240 V AC, 50–60 Hz, with power consumption up to 140 W and a redundant dual power supply.
Can I buy the N70 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
