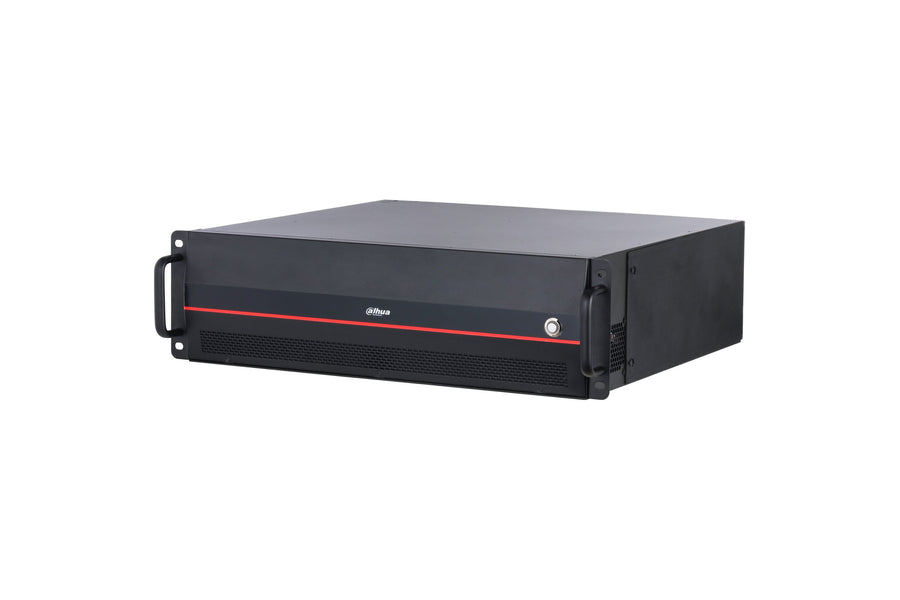

Dahua 3U Video Matrix Platform Video Wall Controller – N70

The Dahua N70 is a 3U video wall controller for surveillance and large-scale video routing. It splices up to 36 screens, decodes up to 100 channels and provides four HDMI outputs for multi-screen display. Procure.ae supplies the Dahua N70 in the UAE, with quotes, delivery and installation support.

The N70 runs embedded Linux on a 64-bit octa-core processor and accepts 2 input channels, up to 4K@60 Hz for UHD encoding or 1080p@60 Hz for HD encoding. Decoding covers up to 100 channels, such as 3 channels of 32MP@25fps, 48 channels of 2MP@25fps or 100 channels of D1@25fps at a time. The first two of its four HDMI outputs reach 4096 x 2160@60 Hz. Splicing covers up to 36 screens, with 1, 4, 6, 8, 9, 16, 25 and 36 window splits.

The N70 is a standard 19-inch, 3U rack-mounted server with ATCA-based architecture and 9 slots for audio and video cards. It has a modular design and a redundant dual power supply. Interoperability covers GB28181, ONVIF, RTSP, Dahua Private and Hikvision Private. Compared with the N70 decoder models, which offer 12 to 20 HDMI outputs, this unit has 4 HDMI outputs.
