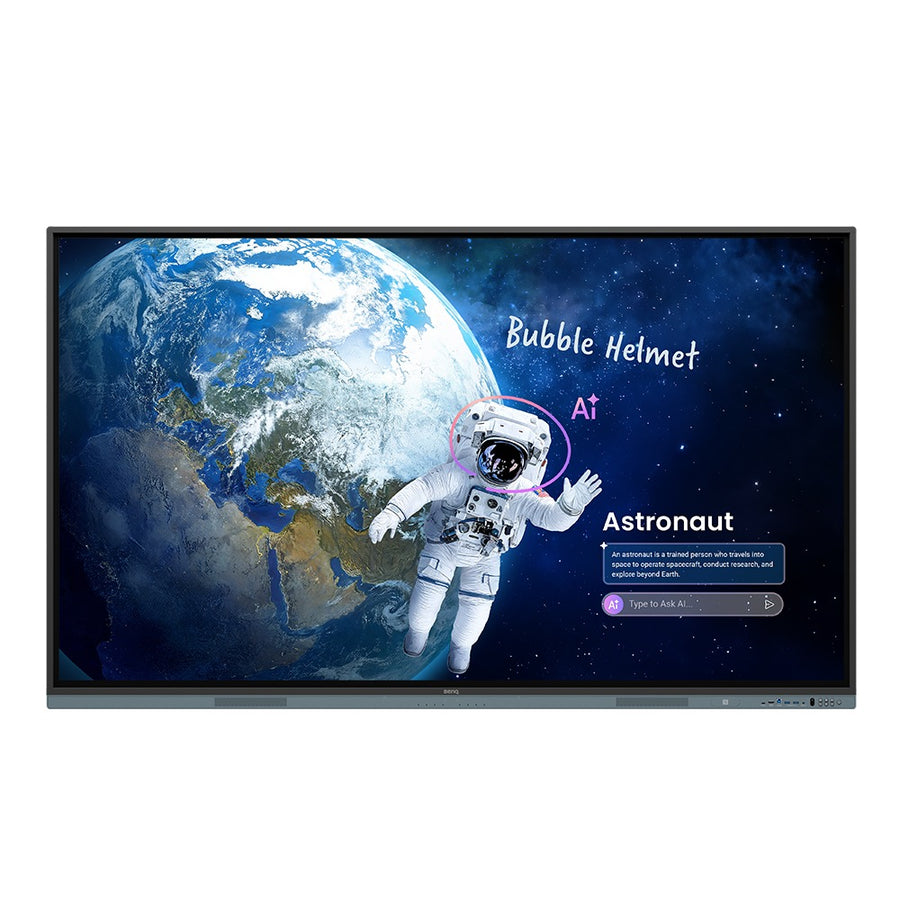

BenQ Board Master RM05 86-inch Interactive Flat Panel – RM8605
The BenQ RM8605 is an 86-inch 4K UHD interactive flat panel for classrooms and offices, with up to 50-point infrared touch and an 8-microphone array. It suits schools and businesses that want a touch display managed centrally by IT. Procure.ae supplies the BenQ RM8605 across the UAE.
The RM8605 has an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,200:1 typical contrast ratio, with a dynamic contrast ratio of 50,000:1. Its high-precision infrared touch supports up to 50 touch points with a response time under 5 ms. The 10-bit panel covers a 72% NTSC colour gamut. An 8-microphone array picks up voices up to 12 m away, and two 25 W speakers provide audio.
The RM8605 runs Android 15.0 (EDLA) on an Arm Cortex-A78 and A55 processor, with one OPS slot for a slot-in PC. DMS device management, AMS account management and X-Sign Broadcast are included. Compared with the RM8603, it adds a micro SD reader and a 50,000:1 dynamic contrast ratio against 30,000:1.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 4K UHD display
- Up to 50-point touch
- 8-microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
86-inch 16:9 IPS panel at 3840 x 2160 resolution with 450 nits typical brightness.
02
Up to 50-point touch
High-precision infrared touch with a response time under 5 ms.
03
8-microphone array
Picks up voices at a range of up to 12 m.
04
Android 15.0 with OPS slot
Runs Android 15.0 (EDLA) and accepts a slot-in OPS PC.
05
EZWrite 6.0 whiteboarding
Built-in whiteboarding software from BenQ.
06
InstaShare 2 wireless sharing
Wireless screen sharing with InstaShare 2.
07
Sensors and ENERGY STAR
NFC, ambient light and IR sensors, with ENERGY STAR rating.
Specifications
37 specificationsGeneral
Key FeaturesUp to 50-point touch, 8-microphone array, NFC sensor, ambient light and IR sensors, EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS and AMS management, Flicker-free
ModelRM8605
TypeInteractive Flat Panel
What's in the BoxRemote control, wall mount, HDMI, USB-B touch and USB-C cables
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch PointsUp to 50-point multi-touch
Touch Response Time< 5 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 15.0 (EDLA)
ProcessorArm Cortex-A78 × 2 + A55 × 6
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Microphone8-microphone array
Pickup Range12 m
Speaker Output2 × 25 W
Connectivity
Input Voltage100-240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
PortsUSB 2.0 × 3, USB 3.0 × 4, USB-C × 2 (65 W PD), DisplayPort 1.2a × 1, VGA × 1, micro SD × 1, Ethernet × 2
Touch USB PortsUSB-B × 3 (USB 3.0)
Power
Power Consumption127.6 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1957 x 1166.6 x 98.4 mm
Duty Cycle18 hours / 7 days
MountingWall mount included
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2110 x 1291 x 185 mm
VESA Mount800 x 600 mm
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the BenQ Board Master RM05 86-inch Interactive Flat Panel – RM8605 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the BenQ RM8605?
The BenQ RM8605 has an 86-inch 16:9 IPS panel at 3840 x 2160 (4K UHD) resolution. It has 450 nits typical brightness, a 1,200:1 typical contrast ratio and 10-bit colour depth.
How many touch points does the RM8605 support?
The RM8605 supports up to 50 touch points using high-precision infrared touch, with a touch response time under 5 ms. It has three USB-B touch ports rated USB 3.0. The USB-C output also carries touch alongside video and audio.
Does the RM8605 have a built-in microphone?
Yes. It has an 8-microphone array with a pickup range of up to 12 m. A 3.5 mm line-in also accepts a separate microphone, and two 25 W speakers provide audio.
Can the RM8605 run Android apps or a slot-in PC?
Yes. It runs Android 15.0 (EDLA) and has one OPS slot for a slot-in PC. Both of its Ethernet ports run at 10/100/1000 Mbps. The processor is an Arm Cortex-A78 × 2 with A55 × 6 cores.
Can the RM8605 be wall mounted?
Yes. It includes a wall mount and uses a VESA 800 x 600 mm mounting pattern with four M8 x 25L screws. Its overall dimensions are 1957 x 1166.6 x 98.4 mm.
