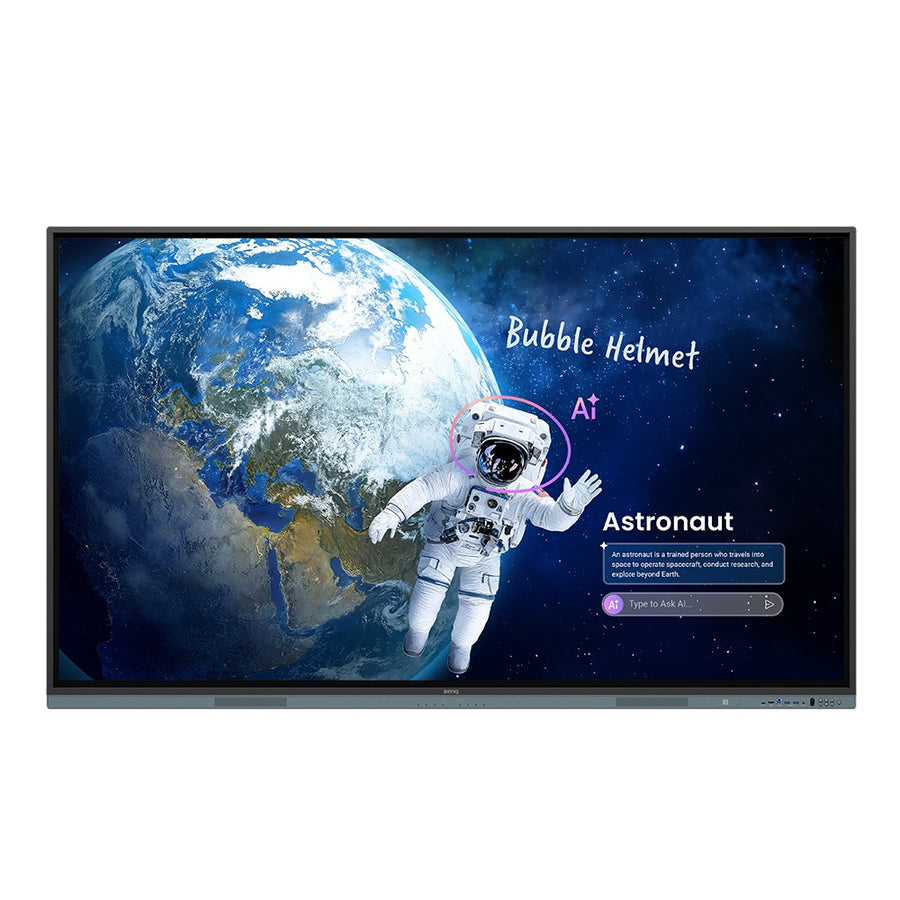

BenQ Board Master RM05 86-inch Interactive Flat Panel – RM8605
The BenQ RM8605 is an 86-inch 4K UHD interactive flat panel for classrooms and offices, with up to 50-point infrared touch and an 8-microphone array. It suits schools and businesses that want a touch display managed centrally by IT. Procure.ae supplies the BenQ RM8605 across the UAE.
The RM8605 has an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,200:1 typical contrast ratio, with a dynamic contrast ratio of 50,000:1. Its high-precision infrared touch supports up to 50 touch points with a response time under 5 ms. The 10-bit panel covers a 72% NTSC colour gamut. An 8-microphone array picks up voices up to 12 m away, and two 25 W speakers provide audio.
The RM8605 runs Android 15.0 (EDLA) on an Arm Cortex-A78 and A55 processor, with one OPS slot for a slot-in PC. DMS device management, AMS account management and X-Sign Broadcast are included. Compared with the RM8603, it adds a micro SD reader and a 50,000:1 dynamic contrast ratio against 30,000:1.
Key features
Specifications
| Key Features | Up to 50-point touch, 8-microphone array, NFC sensor, ambient light and IR sensors, EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS and AMS management, Flicker-free |
| Model | RM8605 |
| Type | Interactive Flat Panel |
| What's in the Box | Remote control, wall mount, HDMI, USB-B touch and USB-C cables |
| Aspect Ratio | 16:9 |
| Blue Light Filter | Yes |
| Brightness | 450 nits |
| Color Depth | 10-bit |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | < 5 ms |
| Touch Technology | Infrared |
| Operating System | Android 15.0 (EDLA) |
| Processor | Arm Cortex-A78 × 2 + A55 × 6 |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Microphone | 8-microphone array |
| Pickup Range | 12 m |
| Speaker Output | 2 × 25 W |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| OPS Slot | 1 (slot-in PC) |
| Ports | USB 2.0 × 3, USB 3.0 × 4, USB-C × 2 (65 W PD), DisplayPort 1.2a × 1, VGA × 1, micro SD × 1, Ethernet × 2 |
| Touch USB Ports | USB-B × 3 (USB 3.0) |
| Power Consumption | 127.6 W (typical) |
| Standby Power | < 0.5 W |
| Dimensions | 1957 x 1166.6 x 98.4 mm |
| Duty Cycle | 18 hours / 7 days |
| Mounting | Wall mount included |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2110 x 1291 x 185 mm |
| VESA Mount | 800 x 600 mm |
| Certifications | ENERGY STAR |
