BenQInteractive Flat PanelsSKU RM7505

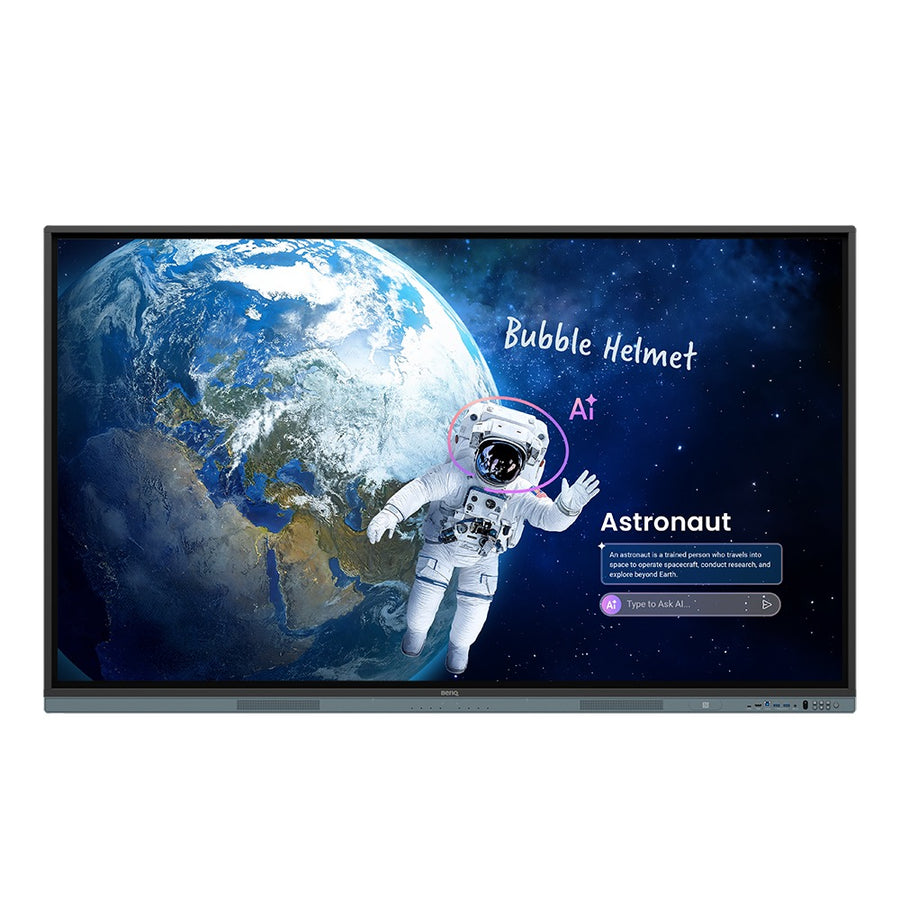

BenQ Board Master RM05 75-inch Interactive Flat Panel – RM7505
The BenQ RM7505 is a 75-inch 4K UHD interactive flat panel for classrooms, boardrooms and collaboration spaces. It has up to 50-point high-precision infrared touch, Android 15 and an eight-microphone array. Procure.ae supplies BenQ RM7505 in the UAE, with quotes, delivery and installation.
The RM7505 has a 75-inch IPS panel at 3840 × 2160 resolution, 450 nits typical brightness and 1,500:1 typical contrast, with a 50,000:1 dynamic contrast ratio. High-precision infrared touch supports up to 50 points with a response time under 5 ms. The 10-bit panel covers a 72% NTSC gamut. The eight-microphone array picks up voices up to 12 m away, and two 25 W speakers provide audio. Ambient light, IR and NFC sensors are included.
The RM7505 suits large classrooms, lecture spaces and boardrooms that need high-precision touch. It runs Android 15 on an Arm Cortex-A78 and A55 processor with an OPS slot for a slot-in PC. Wi-Fi 6 and Bluetooth 5.2 are available as options. Ports include DisplayPort 1.2a, VGA, USB-C with 65 W power delivery, three USB-B touch connections and two Ethernet ports. It mounts on an 800 × 400 mm VESA pattern. Compared with the RM6503, it offers 50 touch points instead of 40.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
High Precision Infrared
- 75-inch 4K UHD IPS panel
- Up to 50-point touch
- Eight-microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K UHD IPS panel
3840 × 2160 resolution, 450 nits typical brightness, 1,500:1 typical contrast.
02
Up to 50-point touch
High Precision IR touch with a touch response time under 5 ms.
03
Eight-microphone array
Pickup range up to 12 m.
04
Android 15 with OPS slot
Android 15.0 platform with a slot-in PC option.
05
Wireless options
Wi-Fi 6 and Bluetooth 5.2 available as options.
06
Whiteboarding and sharing
EZWrite 6.0 and InstaShare 2 included.
07
Built-in sensors
Ambient light, IR and NFC sensors.
08
Energy efficiency
ENERGY STAR listed, 97.9 W typical power consumption.
Specifications
40 specificationsGeneral
Key Features4K UHD, IPS panel, up to 50-point touch, High Precision IR touch, Android 15, OPS slot, 8-mic array, Wi-Fi 6 (optional)
ModelRM7505
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,500:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Pointsup to 50-point multi-touch
Touch Response Time< 5 ms
Touch TechnologyHigh Precision Infrared
Performance
Operating SystemAndroid 15
ProcessorOcta-core (Cortex-A78 × 2 + A55 × 6) CPU, Mali-G57 MC2 GPU
Storage Conditions-20 to 60 °C, 10% to 90% RH (non-condensing)
Audio
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
DisplayPort1 × 1.2a
Microphone8-microphone array, up to 12 m pickup range
Speaker Output2 × 25 W
Connectivity
BluetoothBluetooth 5.2 (optional)
Ethernet10/100/1000 Mbps (Android), 10/100/1000 Mbps (OPS) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
USB PortsUSB-A × 3 (2.0), USB-A × 4 (3.0), USB-B touch × 3 (3.0), USB-C × 1 (2.0 data/video/audio/touch out)
USB-C PortsUSB-C × 1 (2.0 + 3.0, 65 W PD)
VGA Input1
Wi-FiWi-Fi 6 (optional)
Power
Power Consumption97.9 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1709.4 x 1026.8 x 98.6 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1863 x 1148 x 185 mm
Surface Protection9H tempered glass
VESA Mount800 x 400 mm
Downloads
Manufacturer documents for the BenQ Board Master RM05 75-inch Interactive Flat Panel – RM7505 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the BenQ RM7505?
The BenQ RM7505 is a 75-inch 4K UHD interactive flat panel with an IPS panel, up to 50-point high-precision infrared touch and Android 15.0. It belongs to the BenQ Board Master RM05 series and includes an eight-microphone array, an OPS slot and Wi-Fi 6 as an option.
Does the RM7505 include Wi-Fi?
Wi-Fi 6 is available as an option on the RM7505, and Bluetooth 5.2 is also optional. The manufacturer's specifications also list 10/100/1000 Mbps Ethernet on the Android side and two Ethernet connections on the OPS slot, for wired networking.
Does the RM7505 have a built-in microphone array?
Yes. It has an eight-microphone array with a pickup range of up to 12 m, which suits discussion in larger rooms. The manufacturer's specifications also list ambient light, IR and NFC sensors built into the panel.
Can the RM7505 run a slot-in PC?
Yes. It has one OPS slot for a slot-in PC, alongside its built-in Android 15.0 platform. The OPS slot also provides two 10/100/1000 Mbps Ethernet connections for the slot-in PC.
Can the RM7505 be wall mounted?
Yes. It includes a wall mount and supports VESA 800 × 400 mm mounting screws (4 × M8 × 25L). Procure.ae can arrange delivery and installation across the UAE and confirm the fixing method for your wall or frame before the visit.
