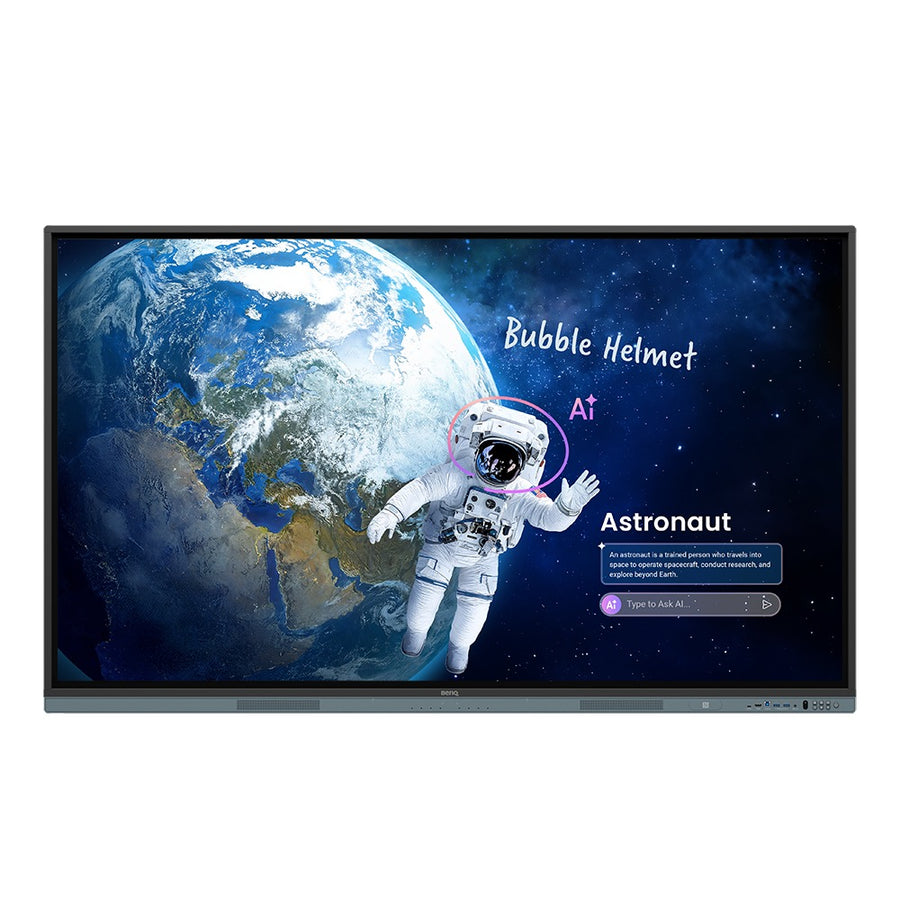

BenQ Board Master RM05 75-inch Interactive Flat Panel – RM7505
The BenQ RM7505 is a 75-inch 4K UHD interactive flat panel for classrooms, boardrooms and collaboration spaces. It has up to 50-point high-precision infrared touch, Android 15 and an eight-microphone array. Procure.ae supplies BenQ RM7505 in the UAE, with quotes, delivery and installation.
The RM7505 has a 75-inch IPS panel at 3840 × 2160 resolution, 450 nits typical brightness and 1,500:1 typical contrast, with a 50,000:1 dynamic contrast ratio. High-precision infrared touch supports up to 50 points with a response time under 5 ms. The 10-bit panel covers a 72% NTSC gamut. The eight-microphone array picks up voices up to 12 m away, and two 25 W speakers provide audio. Ambient light, IR and NFC sensors are included.
The RM7505 suits large classrooms, lecture spaces and boardrooms that need high-precision touch. It runs Android 15 on an Arm Cortex-A78 and A55 processor with an OPS slot for a slot-in PC. Wi-Fi 6 and Bluetooth 5.2 are available as options. Ports include DisplayPort 1.2a, VGA, USB-C with 65 W power delivery, three USB-B touch connections and two Ethernet ports. It mounts on an 800 × 400 mm VESA pattern. Compared with the RM6503, it offers 50 touch points instead of 40.
Key features
Specifications
| Key Features | 4K UHD, IPS panel, up to 50-point touch, High Precision IR touch, Android 15, OPS slot, 8-mic array, Wi-Fi 6 (optional) |
| Model | RM7505 |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Blue Light Filter | Yes |
| Brightness | 450 nits |
| Color Depth | 10-bit |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,500:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Points | up to 50-point multi-touch |
| Touch Response Time | < 5 ms |
| Touch Technology | High Precision Infrared |
| Operating System | Android 15 |
| Processor | Octa-core (Cortex-A78 × 2 + A55 × 6) CPU, Mali-G57 MC2 GPU |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH (non-condensing) |
| Audio Out | 3.5 mm earphone × 1, S/PDIF optical × 1 |
| DisplayPort | 1 × 1.2a |
| Microphone | 8-microphone array, up to 12 m pickup range |
| Speaker Output | 2 × 25 W |
| Bluetooth | Bluetooth 5.2 (optional) |
| Ethernet | 10/100/1000 Mbps (Android), 10/100/1000 Mbps (OPS) × 2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 1 (slot-in PC) |
| USB Ports | USB-A × 3 (2.0), USB-A × 4 (3.0), USB-B touch × 3 (3.0), USB-C × 1 (2.0 data/video/audio/touch out) |
| USB-C Ports | USB-C × 1 (2.0 + 3.0, 65 W PD) |
| VGA Input | 1 |
| Wi-Fi | Wi-Fi 6 (optional) |
| Power Consumption | 97.9 W (typical) |
| Standby Power | < 0.5 W |
| Dimensions | 1709.4 x 1026.8 x 98.6 mm |
| Duty Cycle | 18 hours / 7 days |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1863 x 1148 x 185 mm |
| Surface Protection | 9H tempered glass |
| VESA Mount | 800 x 400 mm |
