BenQInteractive Flat PanelsSKU RM8603

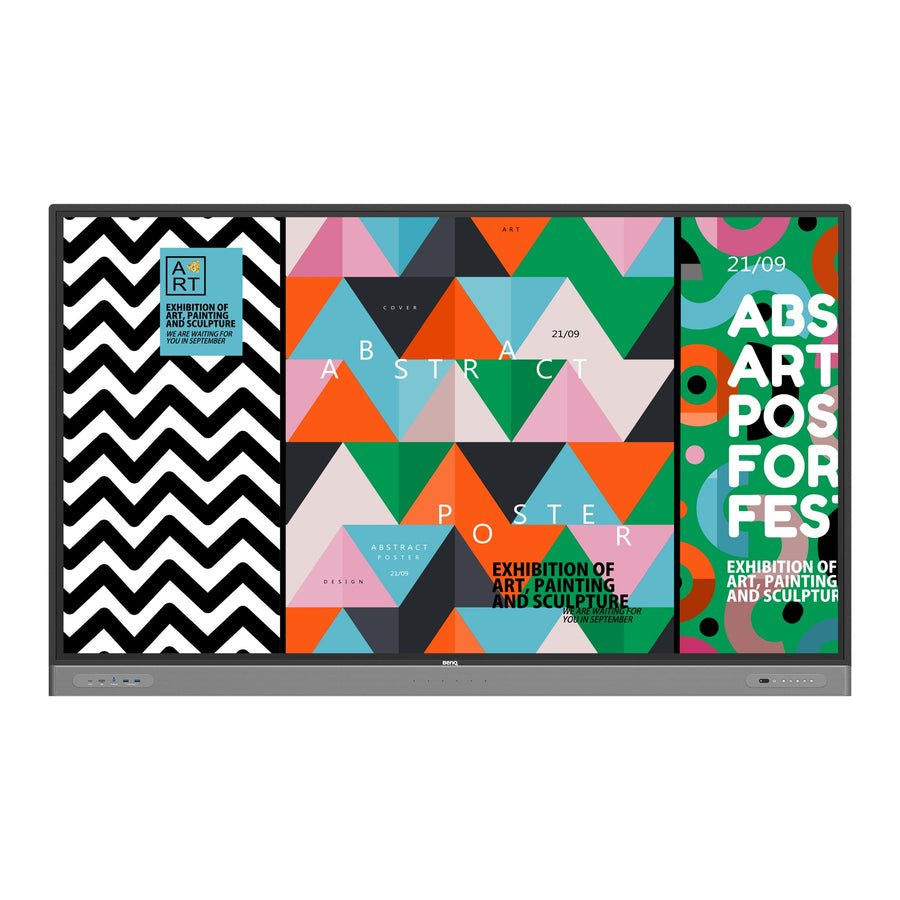

BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603
The BenQ RM8603 is an 86-inch 4K UHD interactive flat panel for classrooms and meeting rooms, with up to 40-point infrared touch and a 450 nits IPS display. It suits teachers and collaboration teams who need a large touch display for group work. Procure.ae supplies the BenQ RM8603 across the UAE.
The RM8603 has an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,200:1 typical contrast ratio. Its infrared touch supports up to 40 touch points with a response time under 10 ms, and the 10-bit panel covers a 72% NTSC colour gamut. A built-in 6-microphone array picks up voices up to 8 m away, and two 16 W speakers provide audio. Anti-glare and nano-ionic silver germ-resistant treatment protect the surface.
The RM8603 runs Android 9.0 and has an OPS slot for a slot-in PC, with gigabit Ethernet on the OPS side. It supports EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management and AMS account management. Compared with the RM8602K, it has a brighter panel (450 nits against 400 nits) and up to 40 touch points rather than 20.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 4K UHD display
- Up to 40-point touch
- Built-in microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
86-inch 16:9 IPS panel at 3840 x 2160 resolution.
02
Up to 40-point touch
Infrared touch with a response time under 10 ms.
03
Built-in microphone array
Six microphones with a pickup range of up to 8 m.
04
EZWrite 6.0 whiteboarding
Built-in whiteboarding software from BenQ.
05
InstaShare 2 wireless sharing
Wireless screen sharing with InstaShare 2.
06
Android 9.0 with OPS slot
Runs Android 9.0 and accepts a slot-in OPS PC.
07
Eye-care and germ resistance
Low blue light, flicker-free operation and nano-ionic silver treatment.
Specifications
36 specificationsGeneral
Key FeaturesUp to 40-point touch, Six-microphone array, EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management, AMS account management, Low blue light, Flicker-free
ModelRM8603
TypeInteractive Flat Panel
What's in the BoxRemote control, wall mount, VGA, HDMI, USB-B touch and USB-C cables
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch PointsUp to 40-point multi-touch
Touch Response Time< 10 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 9.0
ProcessorA73 × 4
Storage Conditions-10 to 60 °C, 10% to 80% RH
Audio
Microphone6-microphone array
Pickup Range8 m
Speaker Output2 × 16 W
Connectivity
Input Voltage100-240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
PortsUSB 2.0 × 2, USB 3.0 × 5, USB-C × 1 (65 W PD), 3.5 mm audio in × 2, 3.5 mm audio out × 1, Ethernet × 2
Touch USB PortsUSB-B × 3 (USB 3.0)
Power
Power Consumption166.2 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1962.4 x 1203.4 x 121.4 mm
Duty Cycle18 hours / 7 days
MountingWall mount included
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2160 x 1340 x 250 mm
VESA Mount800 x 600 mm
Downloads
Manufacturer documents for the BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the BenQ RM8603?
The BenQ RM8603 has an 86-inch 16:9 IPS panel at 3840 x 2160 (4K UHD) resolution. Typical brightness is 450 nits, typical contrast is 1,200:1 and colour depth is 10-bit.
Does the RM8603 support touch for more than one user?
Yes. The infrared touch supports up to 40 touch points with a response time under 10 ms, so several people can work on the screen at the same time. Touch input is provided through three USB-B touch ports at USB 3.0 speed.
Does the RM8603 have a built-in microphone and speakers?
Yes. It has a six-microphone array with a pickup range of up to 8 m and two 16 W speakers. A separate 3.5 mm line-in also accepts a microphone. Both speakers are rated at 16 W each.
Can the RM8603 run a PC or Android apps?
Yes. It runs Android 9.0 and has an OPS slot that accepts a slot-in PC. The OPS-side Ethernet port runs at up to 1000 Mbps. The USB-C port also supports 65 W power delivery.
Can the RM8603 be wall mounted?
Yes. The RM8603 includes a wall mount and uses a VESA 800 x 600 mm mounting pattern with four M8 x 20L screws. Allow the listed footprint of 1962.4 x 1203.4 x 121.4 mm on the wall.
Can I buy the RM8603 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
