BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603 — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
BenQ · RM8603 · Interactive Flat Panel

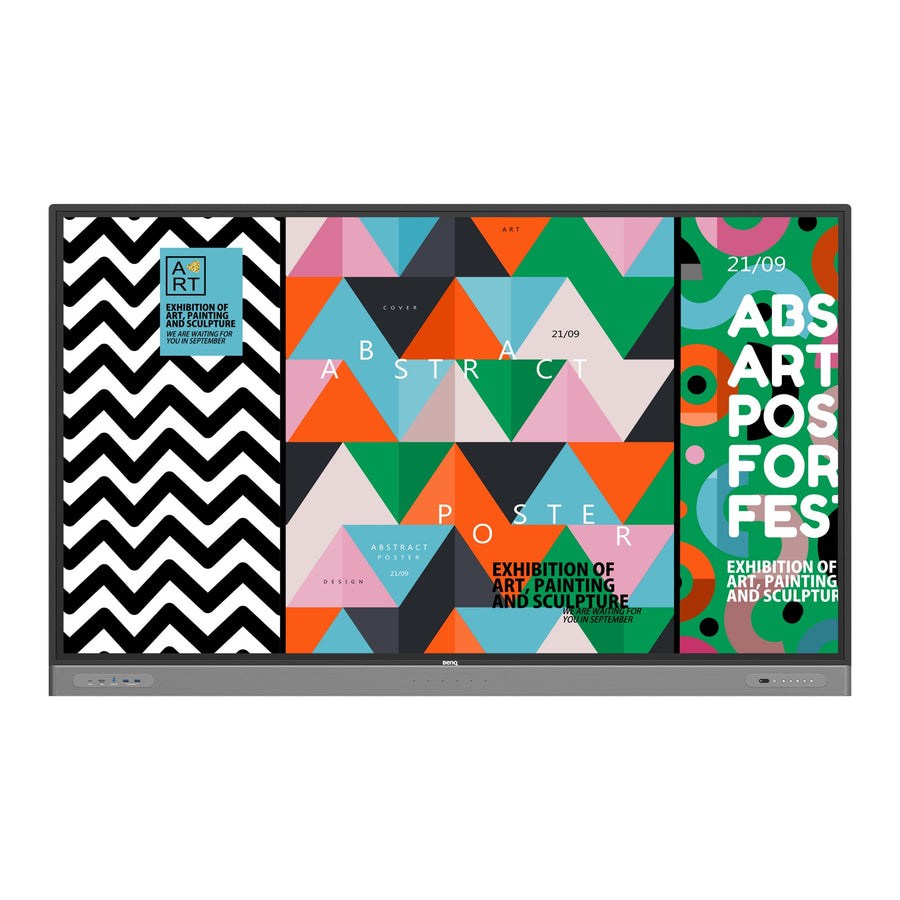

BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603

BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603

The BenQ RM8603 is an 86-inch 4K UHD interactive flat panel for classrooms and meeting rooms, with up to 40-point infrared touch and a 450 nits IPS display. It suits teachers and collaboration teams who need a large touch display for group work. Procure.ae supplies the BenQ RM8603 across the UAE.

The RM8603 has an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,200:1 typical contrast ratio. Its infrared touch supports up to 40 touch points with a response time under 10 ms, and the 10-bit panel covers a 72% NTSC colour gamut. A built-in 6-microphone array picks up voices up to 8 m away, and two 16 W speakers provide audio. Anti-glare and nano-ionic silver germ-resistant treatment protect the surface.

The RM8603 runs Android 9.0 and has an OPS slot for a slot-in PC, with gigabit Ethernet on the OPS side. It supports EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management and AMS account management. Compared with the RM8602K, it has a brighter panel (450 nits against 400 nits) and up to 40 touch points rather than 20.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
Type
Interactive Flat Panel

Key features

01
4K UHD display
86-inch 16:9 IPS panel at 3840 x 2160 resolution.
02
Up to 40-point touch
Infrared touch with a response time under 10 ms.
03
Built-in microphone array
Six microphones with a pickup range of up to 8 m.
04
EZWrite 6.0 whiteboarding
Built-in whiteboarding software from BenQ.
05
InstaShare 2 wireless sharing
Wireless screen sharing with InstaShare 2.
06
Android 9.0 with OPS slot
Runs Android 9.0 and accepts a slot-in OPS PC.
07
Eye-care and germ resistance
Low blue light, flicker-free operation and nano-ionic silver treatment.

Specifications

General
Key FeaturesUp to 40-point touch, Six-microphone array, EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management, AMS account management, Low blue light, Flicker-free
ModelRM8603
TypeInteractive Flat Panel
What's in the BoxRemote control, wall mount, VGA, HDMI, USB-B touch and USB-C cables
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch PointsUp to 40-point multi-touch
Touch Response Time< 10 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 9.0
ProcessorA73 × 4
Storage Conditions-10 to 60 °C, 10% to 80% RH
Audio
Microphone6-microphone array
Pickup Range8 m
Speaker Output2 × 16 W
Connectivity
Input Voltage100-240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
PortsUSB 2.0 × 2, USB 3.0 × 5, USB-C × 1 (65 W PD), 3.5 mm audio in × 2, 3.5 mm audio out × 1, Ethernet × 2
Touch USB PortsUSB-B × 3 (USB 3.0)
Power
Power Consumption166.2 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1962.4 x 1203.4 x 121.4 mm
Duty Cycle18 hours / 7 days
MountingWall mount included
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2160 x 1340 x 250 mm
VESA Mount800 x 600 mm
QR code to BenQ Board Master RM03 86-inch Interactive Flat Panel – RM8603 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
