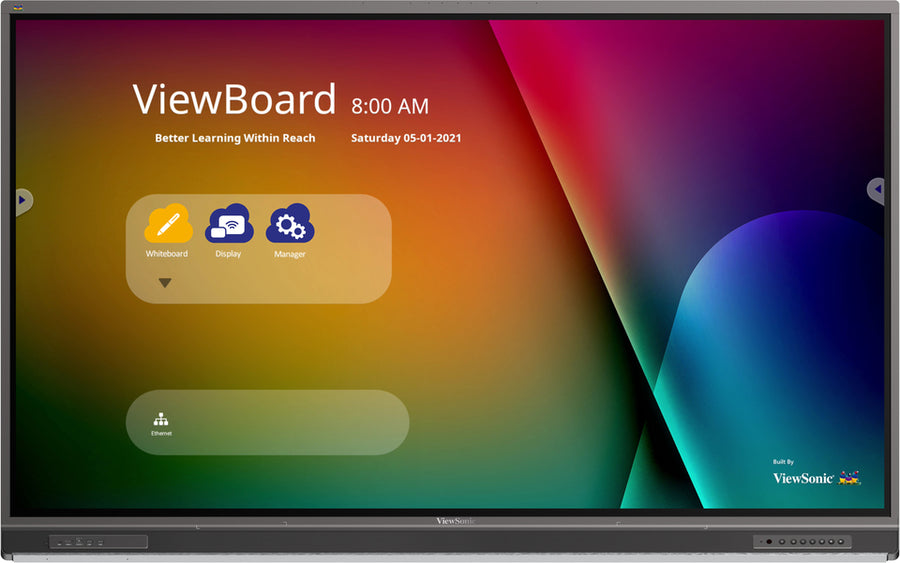

ViewSonic ViewBoard 75-inch 4K Interactive Display – IFP7552-1C
The ViewSonic ViewBoard IFP7552-1C is a 75-inch 4K UHD interactive whiteboard for classrooms and meeting rooms. Its 3840 × 2160 IPS panel supports 33-point Ultra Fine Touch, 400 nits typical brightness and 10-bit colour, with 4GB RAM and 32GB storage. Procure.ae supplies the ViewBoard IFP7552-1C across the UAE.
The ViewBoard IFP7552-1C combines a 75-inch IPS panel at 3840 × 2160 resolution with 1.07 billion colours (10-bit) and 1200:1 typical contrast. Ultra Fine Touch technology offers 33-point touch on Windows and 20 points on Android, with a touch resolution of 32767 × 32767. Dual-pen capability and palm awareness support natural writing on a 9H anti-glare surface. Compute comes from an ARM Cortex-A73 processor with 4GB RAM and 32GB storage, and the panel draws 129.5W typical.
The IFP7552-1C suits classrooms, lecture spaces and meeting rooms where a larger screen is needed. Its angled design gives easy access to shortcut keys and I/O ports, including USB 2.0 and USB 3.0 connections at the front and side. Simple LAN sharing between the panel and a slot-in device runs at 10/100/1000M for Android and PC. Wireless presentation uses ViewBoard Cast and myViewBoard Display, and a browser-based remote management system helps IT teams manage the displays. The panel supports an 800 × 400 VESA wall mount.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel
- 75-inch 4K UHD panel
- Ultra Fine Touch
- Dual-pen and palm awareness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K UHD panel
3840 × 2160 resolution with 1.07 billion colours and 400 nits typical brightness.
02
Ultra Fine Touch
33-point touch on Windows and 20 points on Android for multi-user writing.
03
Dual-pen and palm awareness
dual-pen capability and palm awareness support natural writing on the board.
04
Single-cable USB-C
one Type C port with DisplayPort 1.2, USB 2.0, 100M Ethernet and 65W power delivery.
05
Angled port access
an angular design keeps shortcut keys and I/O ports within easy reach.
06
Wireless presentation
ViewBoard Cast and myViewBoard Display support wireless sharing from devices.
07
Browser-based remote management
lets IT teams manage the display from a web browser.
08
Expansion and control
OPS and WiFi module slots plus RS232 for integration and control.
Specifications
39 specificationsGeneral
Key FeaturesLight sensor, OPS slot for slot-in PC, LAN sharing with slot-in PC, wireless presentation, annotation software, Wi-Fi module slot, 33-point Windows touch
ModelIFP7552-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Color Depth10-bit (1.07 billion colors)
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points33-point (Windows) / 20-point (Android) multi-touch
Touch Resolution32767 x 32767
Viewing Angle178° (H) / 178° (V)
Performance
ProcessorARM Cortex-A73 × 4
RAM4 GB
Storage32 GB
Audio
Audio InPC audio × 1
Audio OutEarphone × 1
Connectivity
EthernetRJ45 × 2
Input Voltage100–240 V AC
OPS Slot1 slot
Serial PortRS232 × 1
Touch USB PortsUSB-B × 3
USB PortsUSB 2.0 × 3, USB 3.0 × 2
USB-C PortsUSB-C × 1 (USB 2.0, DP 1.2, Ethernet 100M, PD 65 W)
VGA Input1 (1920 x 1080 @ 60 Hz)
Power
Power Consumption129.5 W (typical)
Standby Power<0.5 W
Physical
Dimensions1709 x 1071 x 120 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1860 x 1175 x 225 mm
Shipping Weight77.48 kg
Surface Protection9H, anti-glare coating
VESA Mount800 x 400 mm
Weight55.25 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K Interactive Display – IFP7552-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ViewBoard IFP7552-1C have a built-in camera?
The published specifications do not list a built-in camera. It has an RGB/VGA input, a PC audio input and a Type C port for connecting a laptop or other source, so external devices can be connected instead.
How many touch points does it support?
It supports 33 touch points on Windows and 20 on Android, using Ultra Fine Touch technology with a touch resolution of 32767 × 32767. Dual-pen capability and palm awareness are included for writing.
Which wireless presentation and management tools does it support?
The data lists ViewBoard Cast and myViewBoard Display for wireless presentation, simple LAN sharing at 10/100/1000M for Android and PC, and a browser-based remote management system. Video conferencing platform compatibility is not listed in the manufacturer’s specifications, so Procure.ae can confirm it before you buy.
Is it suitable for a large classroom or meeting room?
Yes, it suits large classrooms and meeting rooms. The 75-inch 4K UHD panel with 400 nits typical brightness and 33-point touch is designed for group writing and presentations. The manufacturer’s specifications do not state a room size, so Procure.ae can advise on viewing distance.
Can it be wall-mounted? What VESA pattern does it use?
Yes. The IFP7552-1C has a wall mount with an 800 × 400 VESA pattern, so it can be fixed to a wall in meeting rooms and classrooms. It operates at 0°C to 40°C with 10% to 90% RH non-condensing humidity, and Procure.ae can advise on mounting for your space.
