ViewSonicInteractive Flat PanelsSKU IFP5550-2

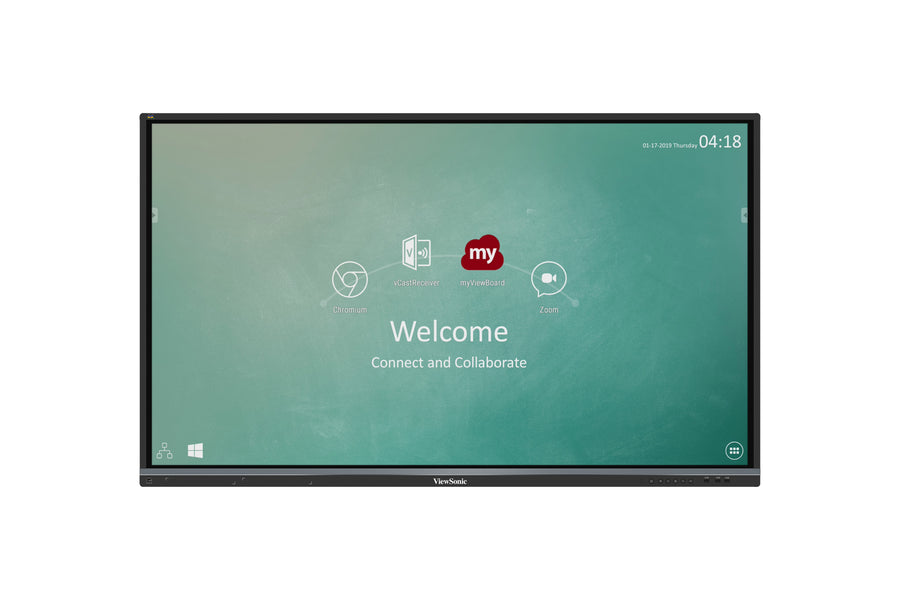

ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – IFP5550-2
The ViewSonic ViewBoard IFP5550-2 is a 55-inch 4K UHD interactive flat panel for classrooms, with infrared touch for 20-point touch and 10-point writing. It runs Android 7 and takes slot-in PCs through a proprietary OPS slot. Procure.ae supplies the ViewBoard IFP5550-2 across the UAE.
The IFP5550-2 uses a 3840 x 2160 LCD panel with a DLED backlight, 350 nits typical brightness (300 nits minimum) and 5,000:1 contrast with DCR. Its 8 ms response time, 1.07 billion colours at 10-bit depth and 178-degree viewing angles suit classroom viewing. Infrared touch provides 20-point touch and 10-point writing at 32767 x 32767 resolution. The dual-core ARM Cortex-A73 processor at 1.2 GHz runs with 2 GB RAM and 16 GB storage. Two 10 W speakers and one 15 W speaker are built in.
Procure.ae supplies the IFP5550-2 as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. ViewBoard Cast with touch feedback provides wireless casting, and four-way split-screen content sharing shows material from several sources at once. The proprietary OPS slot is compatible with VPC10-WP, VPC14-WP, VPC15-WP, VPC16-WP and VPC17-WP series slot-in PCs. Compared with the IFP5541-1, this model runs Android 7 with 2 GB RAM, while the IFP5541-1 lists Android 16 with 8 GB RAM.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical), 300 nits (minimum)
Touch Technology
Infrared
- Infrared touch
- 4K UHD display
- Slim pen writing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared touch
20 points for touch and 10 points for writing at 32767 x 32767 touch resolution.
02
4K UHD display
3840 x 2160 resolution, 350 nits typical brightness and 5,000:1 contrast with DCR.
03
Slim pen writing
Dual-pen writing with slim 3 mm pens for fine-tipped work.
04
Wireless casting
ViewBoard Cast with touch feedback and four-way split-screen content sharing.
05
myViewBoard and vBoard Lite
Basic annotation with myViewBoard or vBoard Lite, plus myViewBoard for Windows in a slot-in PC.
06
OPS PC slot
Proprietary OPS PC slot for VPC series slot-in PCs.
07
Built-in speakers
Two 10 W speakers and one 15 W speaker built in.
08
Regulatory and energy
FCC, CE, cTUVus and Energy Star ES8.0 listed, with EEI rating A+.
Specifications
37 specificationsGeneral
Key FeaturesInfrared touch, 10-point writing, ViewBoard Cast with touch feedback, four-way split-screen sharing, myViewBoard and vBoard Lite, OPS PC slot, Android 7, slim bezel
ModelIFP5550-2
TypeInteractive Flat Panel
What's in the BoxPower cables × 4, remote control, 3 m USB cable, AV cable, touch pens × 2, RS232 adapter, clamps × 5, plate, screws × 8, HDMI cable
Display
Aspect Ratio16:9
BacklightDLED
Bezel SizeSlim
Brightness350 nits (typical), 300 nits (minimum)
Color Depth1.07 billion colours (10-bit)
Contrast Ratio5,000:1 (with DCR)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points20 points touch, 10 points writing
Touch Resolution32767 x 32767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 7
ProcessorARM Cortex-A73 dual-core, 1.2 GHz
RAM2 GB
Storage16 GB
Audio
Speaker Output10 W × 2, 15 W × 1
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS PC slot (proprietary) × 1
PortsRGB/VGA × 1, CVBS × 1, RS232 × 1, RJ45 × 1, USB 2.0 × 4, USB 3.0 × 2, USB Type-B touch × 2, PC audio in × 1, earphone out × 1
Power
Power Consumption81 W (typical); under 0.5 W (off)
Physical
Dimensions1268 x 773 x 85 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1428 x 878 x 220 mm
Shipping Weight39 kg
Surface ProtectionAnti-glare
VESA Mount400 x 200 mm
Weight31 kg
Compliance
CertificationsFCC, cTUVus, CB, CE, BSMI, RCM, EAC; Energy Star ES8.0; EEI A+
Downloads
Manufacturer documents for the ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – IFP5550-2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the IFP5550-2 run Windows or Android?
Android, with Android 7 as the embedded OS. A Windows PC can be installed through the proprietary OPS PC slot, and myViewBoard for Windows is embedded in the slot-in PC.
Is the IFP5550-2 suited to classroom teaching?
Yes. The 55-inch 4K panel with 20-point touch and 10-point writing suits classroom teaching, and its built-in speakers provide 10 W x 2 and 15 W x 1 output. The manufacturer's specifications do not state a maximum room size, so confirm the layout before ordering.
Can the IFP5550-2 be wall mounted?
Yes. It uses a 400 x 200 mm VESA pattern, and the panel weighs 31 kg net and 39 kg in packaging. A wall mount rated for that weight is needed, and Procure.ae can arrange delivery and installation across the UAE.
What is in the box with the IFP5550-2?
The package includes four 3 m power cables, a remote control, a 3 m USB cable, an AV cable, two touch pens, an RS232 adapter, five clamps, a plate, eight screws, an HDMI cable and a quick start guide.
Does the IFP5550-2 support wireless casting?
Yes. ViewBoard Cast with touch feedback is listed for wireless casting, and it supports four-way split-screen content sharing. Simple LAN sharing between the panel and the slot-in device is also listed.
