VSYS VTLS12-46TW Rotating Aluminium TV Cart for 37"–70" Displays, 70 kg
- Model: VTLS12-46TW
- SKU: VTLS12-46TW
Actual Stock & Price Can Be Confirmed After Placing the Order.

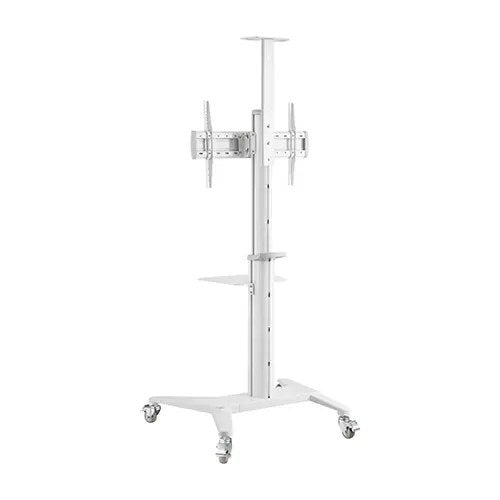

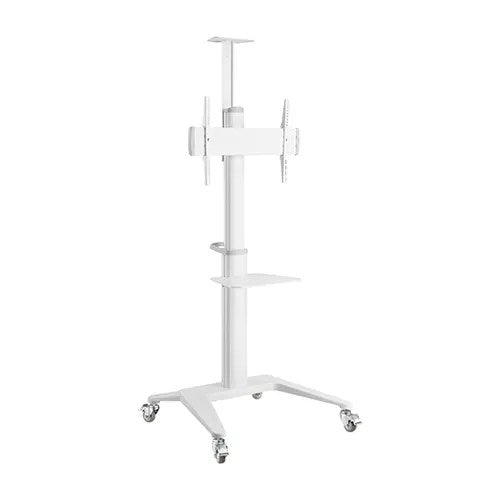

The VSYS VTLS12-46TW is an aluminium mobile display cart for 37"–70" screens up to 70 kg that rotates through 90 degrees between landscape and portrait, available in the UAE from Procure.ae. Most mobile carts lock a screen into landscape, which forces a second stand... See More
The VSYS VTLS12-46TW is an aluminium mobile display cart for 37"–70" screens up to 70 kg that rotates through 90 degrees between landscape and portrait, available in the UAE from Procure.ae.
Most mobile carts lock a screen into landscape, which forces a second stand when the same room later needs portrait wayfinding, a queue display or a vertical menu board. The VTLS12-46TW turns 0 to 90 degrees at the bracket, so one unit covers both a meeting-room presentation screen and a portrait digital signage panel. That matters in retail, events and hospitality, where a screen is redeployed weekly and the orientation changes with the campaign.
The bracket rotates 0 to 90 degrees and tilts from plus 5 to minus 12 degrees using a toolless mechanism, so glare can be corrected without a wrench. Display height sets between 1250 mm and 1600 mm. The column is extruded aluminium rather than folded steel, which keeps the cart light enough for one person to reposition using the D-ring handle. Two 5 kg shelves carry a camera and a source device, and cable management runs inside the column line.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Rotation from 0 to 90 degrees converts the same cart between landscape video and portrait digital signage without new hardware.
- Toolless tilt from plus 5 to minus 12 degrees corrects reflections from ceiling lighting or shopfront glazing in seconds.
- Aluminium column keeps the overall mass low, so one person can move and re-site the cart between rooms.
- Height adjustable from 1250 mm to 1600 mm, covering seated meeting-room eye level up to standing signage height.
- Rated to 70 kg with VESA support from 200x200 mm to 600x400 mm, matching the 37"–70" panel class.

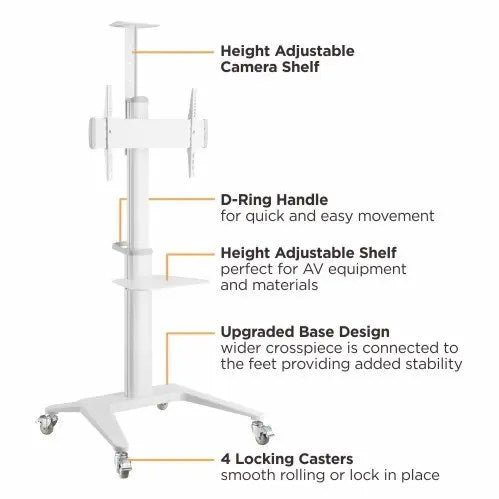

- Two height-adjustable shelves, each rated to 5 kg, for a conferencing camera and a media player or small codec.
- D-ring push handle gives a defined grip point, so the cart is moved by the frame rather than by the display.
- Strength tested to four times the rated load and validated on a 10 degree slope.

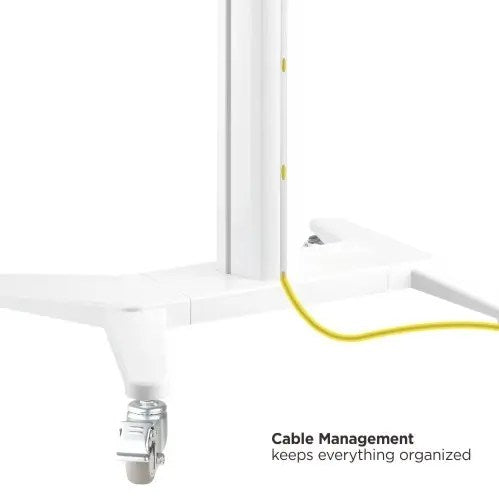

- Finished in matte black or gloss white, with integrated cable routing to keep leads off the floor.
- Free-standing assembly with no wall drilling, suitable for leased and glass-partitioned spaces.
Technical Specifications
| Display size range | 37" to 70" |
| Display weight capacity | Up to 70 kg |
| Shelf capacity | 5 kg per shelf, two shelves |
| VESA compatibility | 200x200 mm to 600x400 mm |
| Rotation | 0 to 90 degrees, landscape or portrait |
| Tilt | Plus 5 to minus 12 degrees, toolless |
| Height range | 1250 mm to 1600 mm |
| Material | Aluminium, steel and plastic, powder-coated |
| Finishes | Matte black or gloss white |
| Testing | Strength tested at 4x rated load, 10 degree slope tested |

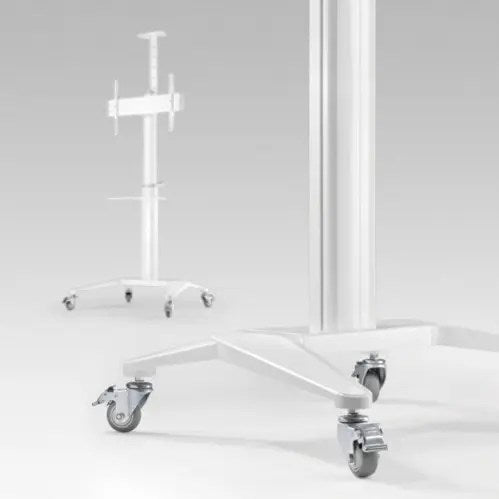

| Mobility | Castered base with D-ring push handle |
| In the box | Aluminium column, TV bracket, equipment and camera shelves, caster base, mounting hardware, assembly guide |
Ideal for: retail stores and shopping-mall concessions running portrait promotional screens, exhibition and event stands, hotel lobbies and pre-function areas, training and meeting rooms, showrooms, and clinic or reception waiting areas across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLS12-46TW Rotating Aluminium TV Cart for 37"–70" Displays, 70 kg |
| Height Adjustment Type | Manual column height adjustment |
| Mounting Type | Free-standing mobile cart on casters |
| Screen Size Support | 37 inch to 70 inch |
| Product Type | Aluminium mobile display cart with landscape and portrait rotation |
| Screen Size Range | 37 inch to 70 inch |
| Load Capacity | 70 kg display, 5 kg per shelf |
| VESA Compatibility | 200x200mm to 600x400mm |
| Movement | Toolless tilt plus 5 to minus 12 degrees, rotation 0 to 90 degrees, height adjustment |
| Tilt | Plus 5 to minus 12 degrees, toolless |
| Rotation | 0 to 90 degrees, landscape or portrait |
| Height Range | 1250mm to 1600mm |
| Material and Finish | Aluminium, steel and plastic with powder-coated finish |
| Available Finishes | Matte black or gloss white |
| Mounting Interface | VESA bracket, 200x200mm to 600x400mm |
| Cable Management | Integrated cable routing along the column |
| Shelves | Two height-adjustable shelves, 5 kg each, for camera and equipment |
| Mobility | Castered base with D-ring push handle |
| Testing and Certification | Strength tested at 4x rated load, 10 degree slope tested |
| In the Box | Aluminium column, TV bracket, equipment and camera shelves, caster base, mounting hardware, assembly guide |
| MPN | VTLS12-46TW |
| Model | VTLS12-46TW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLS12-46TW in the UAE?
Procure.ae supplies the VSYS VTLS12-46TW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Can the screen be turned to portrait for digital signage?
Yes. The bracket rotates through 0 to 90 degrees, so the same cart runs a landscape presentation display or a portrait signage panel. Confirm that your display's own firmware supports portrait image rotation, as that is a panel setting rather than a mount function.
What display sizes and weights does the VTLS12-46TW support?
Screens from 37" to 70" weighing up to 70 kg, with VESA patterns from 200x200 mm to 600x400 mm. Check the rear panel or specification sheet of your display to confirm its VESA pattern before ordering.
How is tilt adjusted?
The tilt mechanism is toolless, moving the panel from plus 5 to minus 12 degrees by hand. That is enough to pull reflections off the screen when the cart is parked under downlights or facing glazing.
Why choose the aluminium cart over a steel one?
The aluminium column lowers the overall weight of the cart, which matters when the same unit is moved daily between rooms, floors or event stands. If you need a higher display capacity in a static position, a steel cart is the better fit; Procure.ae can advise on the right model for your load and duty cycle.
