VSYS VTLS12-46TW Rotating Aluminium TV Cart for 37"–70" Displays, 7... — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
VSYS · VTLS12-46TW · TV Carts & Floor Stands

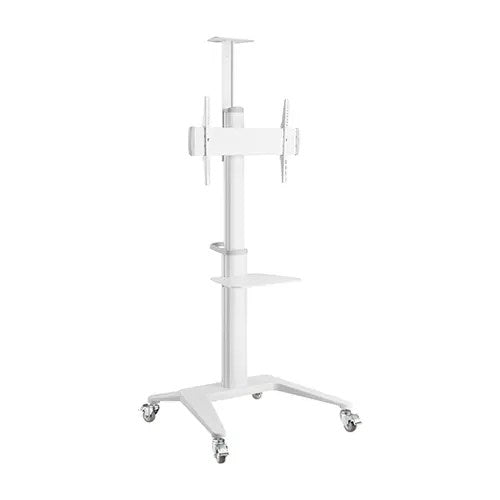

VSYS VTLS12-46TW Rotating Aluminium TV Cart for 37"–70" Displays, 70 kg

VSYS VTLS12-46TW Rotating Aluminium TV Cart for 37"–70" Displays, 70 kg

The VSYS VTLS12-46TW is an aluminium mobile display cart for 37"–70" screens up to 70 kg that rotates through 90 degrees between landscape and portrait, available in the UAE from Procure.ae.

Most mobile carts lock a screen into landscape, which forces a second stand when the same room later needs portrait wayfinding, a queue display or a vertical menu board. The VTLS12-46TW turns 0 to 90 degrees at the bracket, so one unit covers both a meeting-room presentation screen and a portrait digital signage panel. That matters in retail, events and hospitality, where a screen is redeployed weekly and the orientation changes with the campaign.

The bracket rotates 0 to 90 degrees and tilts from plus 5 to minus 12 degrees using a toolless mechanism, so glare can be corrected without a wrench. Display height sets between 1250 mm and 1600 mm. The column is extruded aluminium rather than folded steel, which keeps the cart light enough for one person to reposition using the D-ring handle. Two 5 kg shelves carry a camera and a source device, and cable management runs inside the column line.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Aluminium mobile display cart with landscape and portrait rotation

Key features

01
Rotation from 0 to 90 degrees converts the same cart between landscape video and portrait digital signage without new hardware.
02
Toolless tilt from plus 5 to minus 12 degrees corrects reflections from ceiling lighting or shopfront glazing in seconds.
03
Aluminium column keeps the overall mass low, so one person can move and re-site the cart between rooms.
04
Height adjustable from 1250 mm to 1600 mm, covering seated meeting-room eye level up to standing signage height.
05
Rated to 70 kg with VESA support from 200x200 mm to 600x400 mm, matching the 37"–70" panel class.
06
Two height-adjustable shelves, each rated to 5 kg, for a conferencing camera and a media player or small codec.
07
D-ring push handle gives a defined grip point, so the cart is moved by the frame rather than by the display.
08
Strength tested to four times the rated load and validated on a 10 degree slope.
09
Finished in matte black or gloss white, with integrated cable routing to keep leads off the floor.
10
Free-standing assembly with no wall drilling, suitable for leased and glass-partitioned spaces.

Specifications

General
CompatibilityFlat or curved displays 37 inch to 70 inch with VESA 200x200 mm to 600x400 mm
Key FeaturesIntegrated cable routing along the column, Castered base with D-ring push handle
ModelVTLS12-46TW
TypeAluminium mobile display cart with landscape and portrait rotation
What's in the BoxAluminium column, TV bracket, Equipment and camera shelves, Caster base, Mounting hardware, Assembly guide
Display
Supported Screen Sizes37-70"
Physical
AdjustabilityTilt, rotation, height
FinishMatte black or gloss white
Height Range1,250-1,600 mm
Load Capacity70 kg display, 5 kg per shelf
MaterialAluminium, steel and plastic, powder-coated
MountingFree-standing mobile cart on casters
Rotation0-90° (portrait/landscape)
ShelvesTwo height-adjustable shelves, 5 kg each, for camera and equipment
Tilt-12 to +5°, toolless
VESA Mount200 x 200 to 600 x 400 mm
Compliance
CertificationsStrength tested at 4x rated load, 10 degree slope tested
