SonyMeeting Room SolutionsSKU RM-IP500

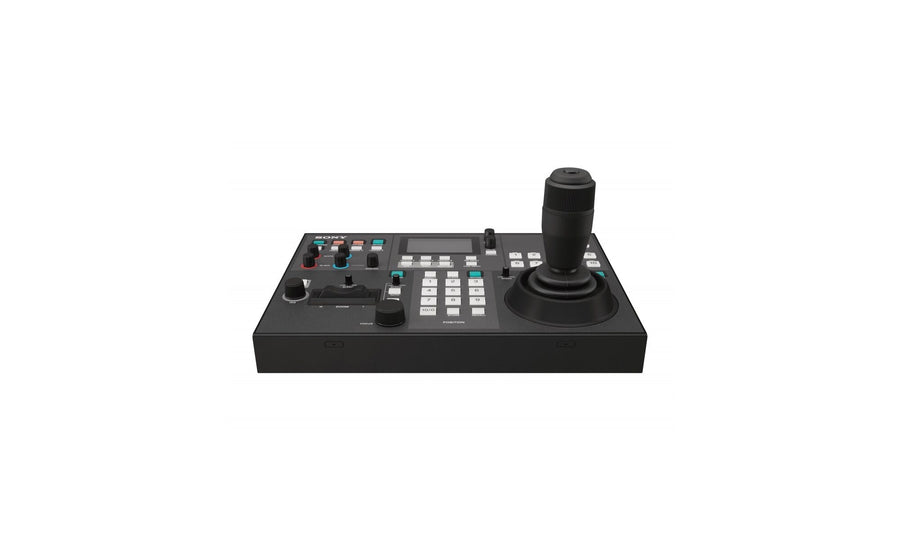

Sony PTZ Camera Remote Controller – RM-IP500
The Sony RM-IP500 is a PTZ camera remote controller with a joystick, three speed dials and a display for iris, gain, shutter speed and zoom status. It controls cameras over VISCA over IP or VISCA RS-422 and runs on 12 V DC. Procure.ae supplies the Sony RM-IP500 across the UAE.
The RM-IP500 has separate speed dials for pan and tilt, zoom and focus, so each motion can be adjusted independently. Zoom can be set to the seesaw lever or the joystick zoom ring. Six ASSIGN buttons are available, and the panel supports exposure mode selection, one-push white and black balance, colour bars output, and adjustments for detail, knee point, AE level and iris. It allows 100 maximum IP connections and 7 serial connections.
Type
PTZ Camera Remote Controller
Weight
2.4 kg
- Speed Dials
- Zoom Controls
- Status Display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Speed Dials
three dials for pan and tilt, zoom and focus speed.
02
Zoom Controls
seesaw lever and joystick zoom ring, selectable.
03
Status Display
shows iris, gain, shutter speed and zoom position.
04
Exposure and Balance
exposure mode, one-push white balance and one-push black balance.
05
Assignable Buttons
six ASSIGN buttons on the panel.
06
IP and Serial Control
VISCA over IP or RS-422, with switchable protocols.
Specifications
18 specificationsGeneral
Controls3 speed dials (pan/tilt, zoom, focus); zoom seesaw lever; joystick zoom ring (selectable)
Key FeaturesSpeed dials for pan/tilt, zoom and focus, zoom seesaw lever and joystick zoom ring, status display, one-push white and black balance, six ASSIGN buttons, Kensington lock
ModelRM-IP500
TypePTZ Camera Remote Controller
Display
DisplayYes; shows iris, gain, shutter speed and zoom position
Performance
Storage Conditions-20 to 60 °C
Connectivity
Connectivity100 maximum IP connections; 7 maximum serial connections
Ethernet10BASE-T/100BASE-TX, auto-detected
Input Voltage12 V DC (10.8 to 13.2 V DC)
PortsLAN RJ-45; VISCA RS-422 RJ-45; GPI I/O (Tally In/Contact Out) D-Sub 15-pin
Programmable Keys6 ASSIGN buttons
ProtocolsVISCA over IP or VISCA RS-422 (switchable)
Serial PortVISCA RS-422, 9,600 or 38,400 bps
Power
Power Consumption7.2 W maximum with all lamps lit; about 2.4 W typical
Physical
Dimensions306 x 159.3 x 224.1 mm (W x H x D, excluding protrusions)
Operating Temperature0 to 40 °C
Weight2.4 kg
Compliance
Security FeaturesKensington lock hole
Downloads
Manufacturer documents for the Sony PTZ Camera Remote Controller – RM-IP500 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the RM-IP500 display camera settings?
Yes. Its display shows the status of iris, gain, shutter speed and zoom position. This lets an operator check the camera's current settings from the panel itself. The display is listed by the manufacturer as a standard feature of this controller.
Which control protocols does it support?
It supports VISCA over IP and VISCA RS-422, and the protocol can be switched between them. The panel allows up to 100 maximum IP connections and up to 7 maximum serial connections, and the manufacturer notes that only one controller is permitted per system.
What power does the RM-IP500 need?
It needs 12 V DC, with a range of 10.8 to 13.2 V DC. Maximum consumption is 7.2 W with all lamps lit at 12 V DC, and typical consumption is about 2.4 W. Operating temperature is 0 to 40 °C.
Can I buy the RM-IP500 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
