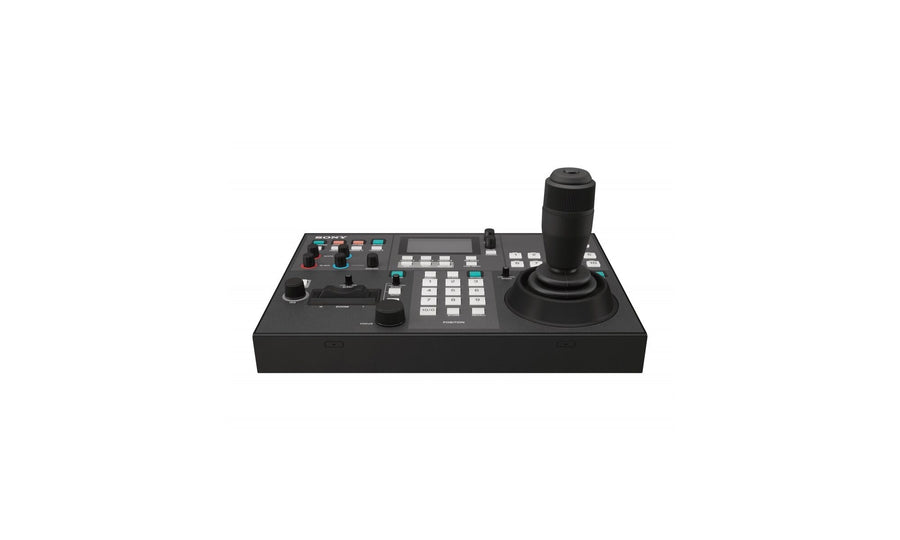

Sony PTZ Camera Remote Controller – RM-IP500
The Sony RM-IP500 is a PTZ camera remote controller with a joystick, three speed dials and a display for iris, gain, shutter speed and zoom status. It controls cameras over VISCA over IP or VISCA RS-422 and runs on 12 V DC. Procure.ae supplies the Sony RM-IP500 across the UAE.
The RM-IP500 has separate speed dials for pan and tilt, zoom and focus, so each motion can be adjusted independently. Zoom can be set to the seesaw lever or the joystick zoom ring. Six ASSIGN buttons are available, and the panel supports exposure mode selection, one-push white and black balance, colour bars output, and adjustments for detail, knee point, AE level and iris. It allows 100 maximum IP connections and 7 serial connections.
Key features
Specifications
| Controls | 3 speed dials (pan/tilt, zoom, focus); zoom seesaw lever; joystick zoom ring (selectable) |
| Key Features | Speed dials for pan/tilt, zoom and focus, zoom seesaw lever and joystick zoom ring, status display, one-push white and black balance, six ASSIGN buttons, Kensington lock |
| Model | RM-IP500 |
| Type | PTZ Camera Remote Controller |
| Display | Yes; shows iris, gain, shutter speed and zoom position |
| Storage Conditions | -20 to 60 °C |
| Connectivity | 100 maximum IP connections; 7 maximum serial connections |
| Ethernet | 10BASE-T/100BASE-TX, auto-detected |
| Input Voltage | 12 V DC (10.8 to 13.2 V DC) |
| Ports | LAN RJ-45; VISCA RS-422 RJ-45; GPI I/O (Tally In/Contact Out) D-Sub 15-pin |
| Programmable Keys | 6 ASSIGN buttons |
| Protocols | VISCA over IP or VISCA RS-422 (switchable) |
| Serial Port | VISCA RS-422, 9,600 or 38,400 bps |
| Power Consumption | 7.2 W maximum with all lamps lit; about 2.4 W typical |
| Dimensions | 306 x 159.3 x 224.1 mm (W x H x D, excluding protrusions) |
| Operating Temperature | 0 to 40 °C |
| Weight | 2.4 kg |
| Security Features | Kensington lock hole |
