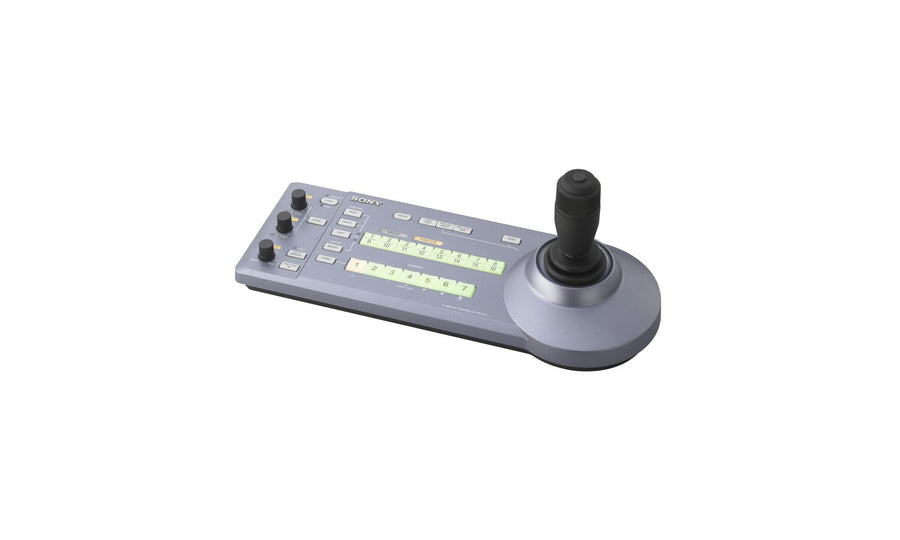

Sony IP Remote Control Panel for BRC Cameras – RM-IP10
The Sony RM-IP10 is an IP remote control panel for BRC cameras. It controls cameras over VISCA over IP, VISCA RS-232C or VISCA RS-422, has a joystick with a zoom ring, and runs on 12 V DC at 3.6 W maximum. It weighs about 950 g. Procure.ae supplies the Sony RM-IP10 across the UAE.
The RM-IP10 connects to BRC cameras through a LAN RJ-45 port using VISCA over IP, with up to 112 IP connections. For serial control it offers VISCA RS-232C on a Mini DIN 8-pin connector and VISCA RS-422 on a 9-pin connector, at 9,600 or 38,400 bps, with up to 7 serial connections. The zoom ring on the joystick controls zoom. Camera adjustments include backlight compensation, R and B gain and black, and iris, gain and shutter speed values. The panel has no display.
Type
IP Remote Control Panel
Weight
950 g
- IP and Serial Control
- Joystick Zoom Ring
- Camera Adjustments
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
IP and Serial Control
VISCA over IP, RS-232C and RS-422, switchable between protocols.
02
Joystick Zoom Ring
zoom control through the zoom ring on the joystick.
03
Camera Adjustments
backlight compensation, R and B gain, and iris, gain and shutter speed.
04
Connection Capacity
up to 112 IP connections and 7 serial connections.
05
Tally and Contact Ports
Tally In and Contact Out on a 9-pin connector.
06
Panel Dimensions
measures 391.3 x 165 x 145.9 mm and weighs about 950 g.
Specifications
17 specificationsGeneral
CompatibilityBRC cameras (VISCA control)
ControlsJoystick with zoom ring; no speed control; no ASSIGN button
Key FeaturesVISCA over IP, RS-232C and RS-422 switchable, joystick zoom ring, backlight compensation, R and B gain adjustment, 112 IP and 7 serial connections
ModelRM-IP10
TypeIP Remote Control Panel
What's in the BoxOperating instructions, Sony AC power adapter, AC power cord, CD-ROM
Display
DisplayNone
Performance
Storage Conditions-20 to 60 °C
Connectivity
Ethernet10BASE-T/100BASE-TX, auto-detected
Input Voltage12 V DC (10.8 to 13.2 V DC)
PortsLAN RJ-45; VISCA RS-232C Mini DIN 8-pin; VISCA RS-422 9-pin; Tally In/Contact Out 9-pin
ProtocolsVISCA over IP, VISCA RS-232C, VISCA RS-422 (switchable)
Serial PortRS-232C and RS-422, 9,600 or 38,400 bps
Power
Power Consumption3.6 W maximum (0.3 A at 12 V DC)
Physical
Dimensions391.3 x 165 x 145.9 mm (W x H x D)
Operating Temperature0 to 40 °C
Weight950 g
Downloads
Manufacturer documents for the Sony IP Remote Control Panel for BRC Cameras – RM-IP10 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the RM-IP10 control cameras over the network?
Yes. It supports VISCA over IP through its RJ-45 LAN port, which auto-detects 10BASE-T and 100BASE-TX connections. The panel supports up to 112 IP connections and up to 5 controllers per system.
Can it control cameras over serial?
Yes. It supports VISCA RS-232C on a Mini DIN 8-pin connector and VISCA RS-422 on a 9-pin connector. Serial communication runs at 9,600 or 38,400 bps, and up to 7 serial connections are supported.
Does the panel need a separate power supply?
It runs on 12 V DC, within a range of 10.8 to 13.2 V DC, and draws 3.6 W maximum at 12 V DC. The package includes a Sony AC power adapter and AC power cord, so the panel can be powered from the mains supply.
