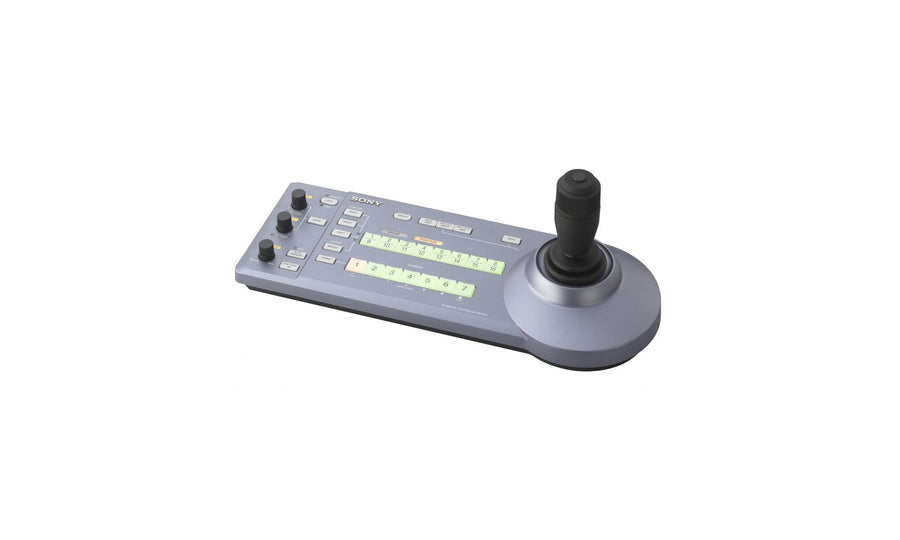

Sony IP Remote Control Panel for BRC Cameras – RM-IP10

The Sony RM-IP10 is an IP remote control panel for BRC cameras. It controls cameras over VISCA over IP, VISCA RS-232C or VISCA RS-422, has a joystick with a zoom ring, and runs on 12 V DC at 3.6 W maximum. It weighs about 950 g. Procure.ae supplies the Sony RM-IP10 across the UAE.

The RM-IP10 connects to BRC cameras through a LAN RJ-45 port using VISCA over IP, with up to 112 IP connections. For serial control it offers VISCA RS-232C on a Mini DIN 8-pin connector and VISCA RS-422 on a 9-pin connector, at 9,600 or 38,400 bps, with up to 7 serial connections. The zoom ring on the joystick controls zoom. Camera adjustments include backlight compensation, R and B gain and black, and iris, gain and shutter speed values. The panel has no display.

Type

IP Remote Control Panel

Weight

950 g

Key features

IP and Serial Control

VISCA over IP, RS-232C and RS-422, switchable between protocols.

Joystick Zoom Ring

zoom control through the zoom ring on the joystick.

Camera Adjustments

backlight compensation, R and B gain, and iris, gain and shutter speed.

Connection Capacity

up to 112 IP connections and 7 serial connections.

Tally and Contact Ports

Tally In and Contact Out on a 9-pin connector.

Panel Dimensions

measures 391.3 x 165 x 145.9 mm and weighs about 950 g.

Specifications

General
Compatibility	BRC cameras (VISCA control)
Controls	Joystick with zoom ring; no speed control; no ASSIGN button
Key Features	VISCA over IP, RS-232C and RS-422 switchable, joystick zoom ring, backlight compensation, R and B gain adjustment, 112 IP and 7 serial connections
Model	RM-IP10
Type	IP Remote Control Panel
What's in the Box	Operating instructions, Sony AC power adapter, AC power cord, CD-ROM

Display
Display	None

Performance
Storage Conditions	-20 to 60 °C

Connectivity
Ethernet	10BASE-T/100BASE-TX, auto-detected
Input Voltage	12 V DC (10.8 to 13.2 V DC)
Ports	LAN RJ-45; VISCA RS-232C Mini DIN 8-pin; VISCA RS-422 9-pin; Tally In/Contact Out 9-pin
Protocols	VISCA over IP, VISCA RS-232C, VISCA RS-422 (switchable)
Serial Port	RS-232C and RS-422, 9,600 or 38,400 bps

Power
Power Consumption	3.6 W maximum (0.3 A at 12 V DC)

Physical
Dimensions	391.3 x 165 x 145.9 mm (W x H x D)
Operating Temperature	0 to 40 °C
Weight	950 g
