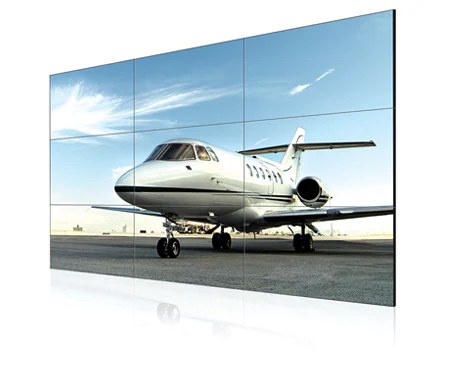

LG 47-inch Full HD Narrow Bezel Video Wall Display – 47LV35A-5B
The LG 47LV35A-5B (47LV35A-5B.AMA) is a 47-inch Full HD narrow bezel video wall display with 450 cd/m² brightness and a bezel of 3.2 mm on the left and top and 1.7 mm on the right and bottom. It is built for tiled video walls. Procure.ae, an authorised LG reseller in Dubai, supplies the 47LV35A-5B in the UAE.
The 47LV35A-5B is a 47-inch class video wall display with a measured diagonal of 46.96 inches. Its 1,920 x 1,080 (Full HD) panel has a brightness of 450 cd/m², and the narrow bezel measures 3.2 mm on the left and top and 1.7 mm on the right and bottom. Connections include HDMI, DVI-D and analog RGB (shared component/AV), one USB port, and RS-232C in and out, RJ45 and IR receiver control.
The display measures 1,044.9 x 590 x 89.9 mm, weighs 16.5 kg (head) and mounts on a 600 x 400 mm VESA pattern. The manufacturer's specifications list SuperSign-w lite and SuperSign-c software and state that an external media player can be attached. The owner's manual and user guide cover tiling displays, joining sets, daisy-chained monitors, Picture ID, portrait layout and wall installation, which suits multi-screen video wall installations.
Screen Size
47 inch (46.96 inch measured diagonal)
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Narrow Bezel Video Wall Display
- Narrow Bezel
- Full HD Panel
- Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Narrow Bezel
3.2 mm on the left and top, 1.7 mm on the right and bottom.
02
Full HD Panel
1,920 x 1,080 resolution on a 47-inch class screen.
03
Brightness
rated at 450 cd/m².
04
Video Inputs
HDMI, DVI-D and analog RGB (shared component/AV).
05
External Control
RS-232C in and out, RJ45 and an IR receiver connection.
06
Video Wall Tools
the manual covers tiling, joining sets, daisy chain and Picture ID.
07
Software and Players
SuperSign-w lite and SuperSign-c are listed, and an external media player can be attached.
08
Mounting
600 x 400 mm VESA interface, 16.5 kg head weight, portrait layout supported.
Specifications
22 specificationsGeneral
ApplicationVideo wall / tiled signage
CompatibilitySuperSign-w lite, SuperSign-c; external media player attachable
ControlsIR receiver × 1, RS-232C, RJ45
Key Features47-inch Full HD, 450 nits, 3.2 / 1.7 mm narrow bezel, HDMI and DVI-D inputs, RS-232C and RJ45 control, IR receiver, 600 x 400 mm VESA, portrait capable
Model47LV35A-5B
TypeNarrow Bezel Video Wall Display
What's in the BoxRemote control, power cable, DVI cable, manual, IR receiver, RS-232C cable, guide bracket, screws
Display
Aspect Ratio16:9
Bezel Size3.2 mm (left/top), 1.7 mm (right/bottom)
Brightness450 nits
OrientationLandscape or portrait
Resolution1920 x 1080 (Full HD)
Screen Size47 inch (46.96 inch measured diagonal)
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI × 1
PortsHDMI × 1, DVI-D × 1, Analog RGB × 1 (shared component/AV), USB × 1, RS-232C In/Out, RJ45, IR receiver
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB × 1
VGA InputAnalog RGB × 1 (shared component/AV)
Physical
Dimensions1044.9 x 590 x 89.9 mm
VESA Mount600 x 400 mm
Weight16.5 kg (head)
Downloads
Manufacturer documents for the LG 47-inch Full HD Narrow Bezel Video Wall Display – 47LV35A-5B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How thin is the bezel on the LG 47LV35A-5B?
The 47LV35A-5B has a bezel of 3.2 mm on the left and top and 1.7 mm on the right and bottom. This narrow border keeps the gap between tiled screens small in a video wall. The panel is 47-inch class (46.96 inches measured diagonally) with 1,920 x 1,080 resolution.
What inputs does the 47LV35A-5B have?
It has HDMI, DVI-D and analog RGB inputs, with the RGB connection shared with component/AV. USB is also provided. The manufacturer's specifications do not list a DisplayPort input or an audio input. Control ports are RS-232C in and out, RJ45 and an IR receiver.
Can the 47LV35A-5B be portrait mounted or tiled?
Yes. The owner's manual describes installing in a portrait layout by rotating the monitor 90 degrees clockwise, and it includes sections on tiling displays, joining sets, Picture ID and daisy-chained monitors with a DVI cable.
What VESA pattern does the 47LV35A-5B use?
The 47LV35A-5B uses a 600 x 400 mm VESA mount interface and weighs 16.5 kg (head). It measures 1,044.9 x 590 x 89.9 mm. The package includes a guide bracket and screws. Procure.ae can arrange video wall installation across the UAE.
How bright is the 47LV35A-5B, and can I add a media player?
The 47LV35A-5B is rated at 450 cd/m². The manufacturer's specifications state that an external media player can be attached, and SuperSign-w lite and SuperSign-c software are listed as supported for content management.
Can I buy the 47LV35A-5B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
