Panasonic Video Wall Installation Mount – TY-VK55LV2

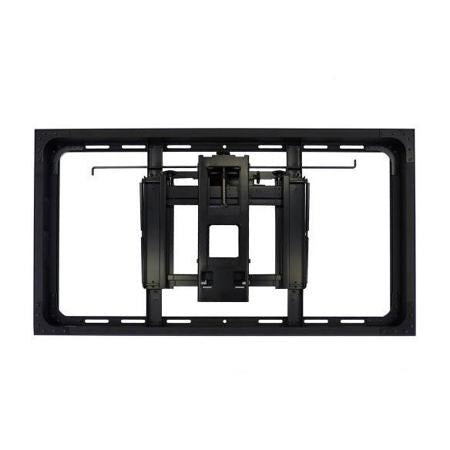

The Panasonic TY-VK55LV2 is an installation mount for building video walls from compatible Panasonic 55-inch displays, including the TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8. It weighs approx. 21.0 kg and pulls out from 184 mm to 384 mm deep. Procure.ae is an authorised reseller and supplies it in the UAE.
The Panasonic TY-VK55LV2 measures 1215 x 686 x 184 mm when stored and extends to 384 mm deep when pulled out. The mount itself weighs approx. 21.0 kg, and the shipping carton measures 1334 x 211 x 779 mm at a gross weight of approx. 31 kg. Fine adjustment covers a vertical shift of ±7 mm (level) or ±4.5 mm individually per side, a horizontal shift of ±9.5 mm and a tilt of ±1.5°.
The set includes the installation mount, two mount brackets and four surface alignment magnets, together with frame linking screws, nuts, washers, magnet screws and a hexagonal wrench. The manufacturer lists the TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8 as corresponding models. The fitting instructions also cover the smaller TY-VK49LV2, so order the TY-VK55LV2 for 55-inch displays. Bolts for the mounting surface are not included.
Type
Video Wall Installation Mount
Weight
21.0 kg
- Pull-out design
- Fine alignment
- Surface alignment magnets
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Pull-out design
Stored depth is 184 mm and the mount extends to 384 mm deep.
02
Fine alignment
Adjusts ±7 mm vertically (level), ±9.5 mm horizontally and ±1.5° in tilt.
03
Surface alignment magnets
Four magnets are supplied, fixed with M4 or M6 screws depending on the display model.
04
Listed display models
Corresponds to the TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8.
05
Fixings included
Supplied with frame linking screws (M6 x 70), nuts, washers, magnet screws and a hexagonal wrench.
06
Mount weight
Weighs approx. 21.0 kg, so the mounting surface must be checked for strength before installation.
Specifications
13 specificationsGeneral
CompatibilityTH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H, TH-55LFV8
Key FeaturesPull-out design, surface alignment magnets, vertical and horizontal fine adjustment, tilt adjustment
ModelTY-VK55LV2
TypeVideo Wall Installation Mount
What's in the BoxInstallation mount, 2 mount brackets, 4 surface alignment magnets, fixing screws, nuts, washers, hexagonal wrench
Display
Supported Screen Sizes55 inch
Physical
AdjustabilityVertical ±7 mm (level), horizontal ±9.5 mm, tilt ±1.5°
Dimensions1215 x 686 x 184 mm (stored); 384 mm deep when pulled out
MountingFixed to the mounting surface with bolts (not included)
Shipping Dimensions1334 x 211 x 779 mm
Shipping Weight31 kg (gross)
Tilt±1.5°
Weight21.0 kg
Downloads
Manufacturer documents for the Panasonic Video Wall Installation Mount – TY-VK55LV2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which displays does the Panasonic TY-VK55LV2 fit?
It corresponds to the Panasonic TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8 displays. The manufacturer lists these models only, so ask Procure.ae to confirm fitment before ordering the mount for any other display.
How much does the TY-VK55LV2 weigh and how deep is it?
The mount weighs approx. 21.0 kg and measures 1215 x 686 mm. It is 184 mm deep when stored and extends to 384 mm when pulled out. Check that the wall or frame can carry the mount together with the weight of the display.
What is included with the TY-VK55LV2?
The set includes the installation mount, two mount brackets, four surface alignment magnets, frame linking screws (M6 x 70) with nuts and washers, main unit fixing screws, M6 x 16 and M4 x 16 magnet screws and a hexagonal wrench. Bolts for the mounting surface are not included.
