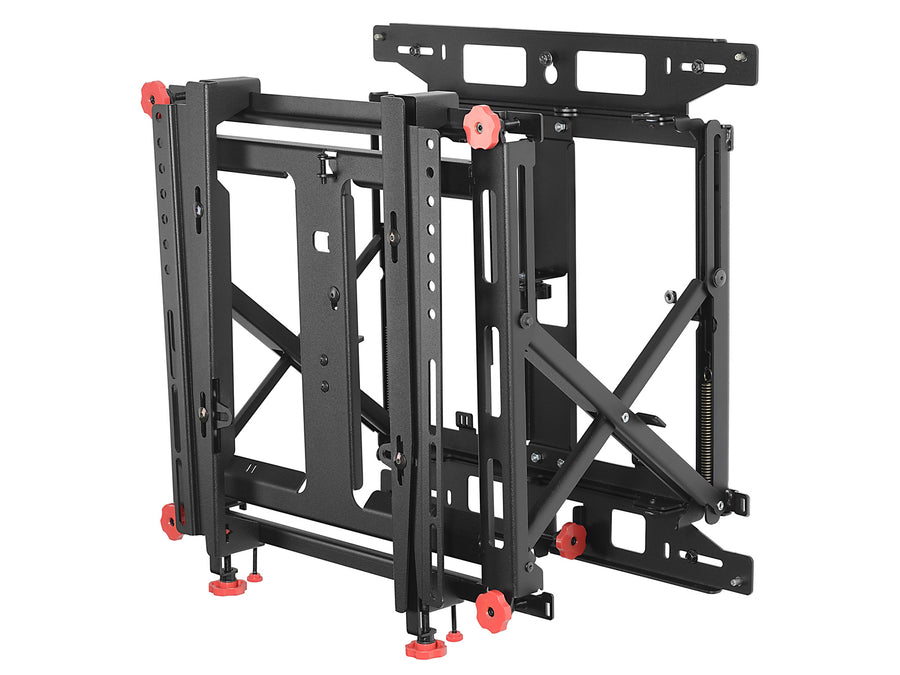

Sharp Quick Release Video Wall Mount 46-55-inch – PD04VW QR 46-55

The Sharp PD04VW QR 46-55 is a quick release video wall mount for Sharp 46- to 55-inch displays, installable in landscape or portrait. It is rated for 56.8 kg, uses a 400 x 400 mm VESA pattern and offers 38 mm adjustment on three axes. Procure.ae supplies this Sharp video wall mount across the UAE.

The quick release design allows front service of the installed display. The mount has a maximum load of 56.8 kg and a 38 mm adjustment on the x, y and z axes. Its dimensions are 540 x 540 x 80 to 351 mm, with a maximum extension of 351 mm and a minimum depth of 80 to 118 mm. The bracket weighs 13.2 kg and ships with adapter brackets, the mount and mounting hardware.

The mount suits single displays and video wall setups in landscape or portrait orientation. It is listed for the same Sharp connector kits as the manual front service model, including CK04UN49S, CK04UN552A, CK04UX552S and CK4UN462A. The listed certifications are RoHS and UL, and the manufacturer lists a 5-year warranty. Procure.ae supplies the mount for projects across the UAE and the wider MEA region.
