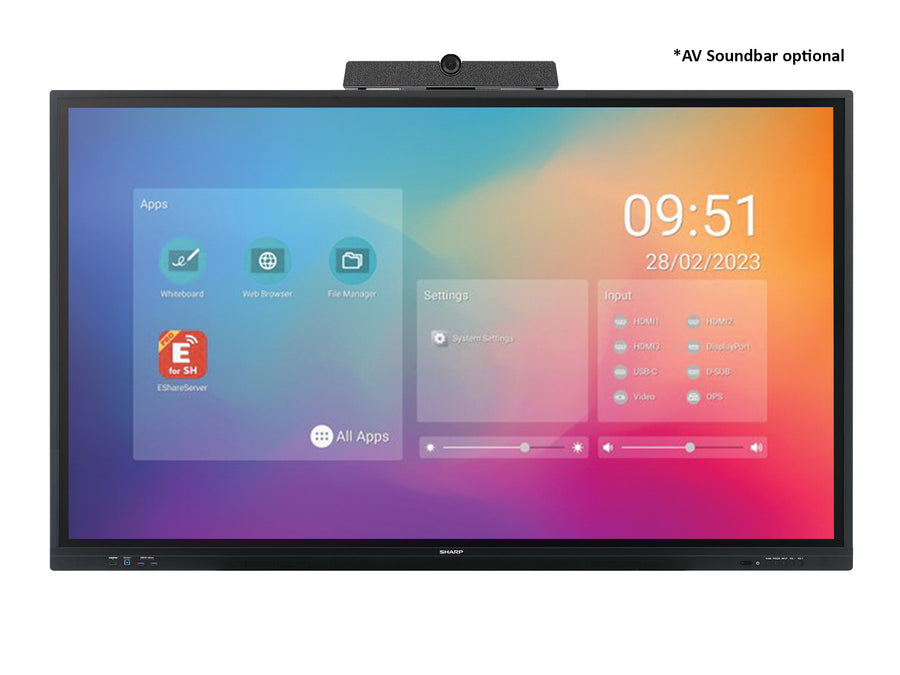

Sharp PN-LC652 65-inch interactive flat panel with infrared touchSharp

Sharp PN-LC Series 65-inch Interactive Flat Panel – PN-LC652

The Sharp PN-LC652 is a 65-inch 4K UHD interactive flat panel with 20-point infrared touch, a single-cable USB-C 65 W input and built-in Android 11. It suits classrooms, small learning groups and BYOD teaching spaces. Procure.ae supplies the Sharp PN-LC652 across the UAE.

The PN-LC652 uses a 65-inch IPS panel with a 3840 x 2160 native resolution, 450 cd/m² brightness, a 1,200:1 typical contrast ratio and an 8 ms grey-to-grey response time. Its infrared touch supports up to 20 touches with finger, glove and dual-tip stylus input. A USB-C input rated at 65 W connects a personal device with one cable for video input and charging, and the built-in Android 11 system with 4 GB RAM and 16 GB storage provides a whiteboard, annotation overlay, calculator, timer, voting kit and screen recorder. The HDMI output loops through to a second display or projector.

The PN-LC652 suits classrooms, higher-education teaching and small work groups that bring their own devices. It is designed for landscape orientation, uses a 600 x 400 mm VESA mount and supports NaViSet Administrator 2 remote management, with RS-232 and LAN control ports for integration. It is tested compatible for Barco ClickShare (Conference) and includes a Q-Sys plug-in. A pen software licence extension is available as an accessory.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
  • Infrared touch
  • 4K UHD IPS panel
  • USB-C 65 W input
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Infrared touch
20-point multi-touch with finger, glove and dual-tip stylus input (3 mm / 9 mm).
02
4K UHD IPS panel
3840 x 2160 native resolution, 450 cd/m² brightness and 1,200:1 typical contrast ratio.
03
USB-C 65 W input
Single USB-C cable connects a personal device for video input and charging.
04
Built-in Android 11
Android 11 system with 4 GB RAM, 16 GB storage and Chrome OS compatible touch.
05
Whiteboard and annotation
Built-in whiteboard, annotation overlay mode, calculator, timer and voting kit.
06
E-Share screen sharing
Wireless content sharing between devices with E-Share for group work.
07
HDMI loop-through
HDMI output loops through HDMI, DisplayPort and OPS sources to a second display or projector.
08
Barco ClickShare tested
Tested compatible for Barco ClickShare (Conference) wireless presentation.

Specifications

36 specifications
General
Key FeaturesInfrared touch, 20-point multi-touch, USB-C 65 W input, built-in whiteboard, E-Share screen sharing, Barco ClickShare tested, OPS slot, HDMI loop-through
ModelPN-LC652
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 passive styluses, pen tray, remote control, power cable, 300 cm USB cable, wireless adapter, user manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size21.9 mm (sides, top); 53.2 mm (bottom)
Brightness450 nits
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° / 178°
Performance
Operating SystemAndroid 11 built-in; Windows 8.1/10/11, Linux, Chrome OS (multi-touch)
ProcessorArm Cortex-A55 quad-core
RAM4 GB
Storage16 GB
Audio
Speaker Output15 W + 15 W
Connectivity
BluetoothBluetooth 4.2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS (NEC / Intel standard)
PortsDisplayPort × 1, USB-C × 1 (65 W input), HDMI In × 3, VGA × 1, HDMI Out × 1, USB 3.0 Type-A × 4, RS-232 × 1, LAN × 1, S/PDIF × 1, 3.5 mm audio in and out
Wi-FiIEEE 802.11 a/b/g/n/ac
Power
Power Consumption180 W (Eco setting)
Physical
Dimensions1512 x 918 x 86 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount600 x 400 mm
Weight38.5 kg
Compliance
CertificationsCE, FCC, RCM, REACH, RoHS, UKCA, UL/C-UL
Warranty3 years (incl. backlight)

Questions

Can’t find your answer? Ask on WhatsApp

Is the Sharp PN-LC652 suitable for classrooms?
Yes. The PN-LC652 is a 65-inch 4K interactive flat panel with 20-point infrared touch and a built-in whiteboard. It is designed for classrooms, higher-education teaching rooms and small learning groups.
Can students connect their own devices to the PN-LC652?
Yes. The USB-C input connects a personal device with a single cable for video input and charging, and the HDMI, DisplayPort and USB-C inputs support BYOD setups. The HDMI output can also send the picture to a second display.
Does the PN-LC652 support Windows Ink and palm rejection?
No. The manufacturer's specifications do not list Windows Ink or palm rejection for the PN-LC652. Native multi-touch is supported on Windows 8.1 to 11, Linux, Android 9 or higher and Chrome OS 87 or higher.
What mounting does the PN-LC652 need?
The PN-LC652 uses a 600 x 400 mm VESA pattern with M8 holes. It measures 1512 x 918 x 86 mm and weighs 38.5 kg, so the wall mount or stand must be rated for that load. Procure.ae can advise on suitable mounting options.
Can the PN-LC652 be controlled remotely?
Yes. The PN-LC652 has RS-232 and LAN control ports and supports NaViSet Administrator 2 for remote management. The LAN port supports 10Base-T, 100Base-TX and 1000Base-T connections for networked control. Procure.ae can advise on setup and integration.
Can I buy the Sharp PN-LC652 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
