SharpDigital SignageSKU PN-M322

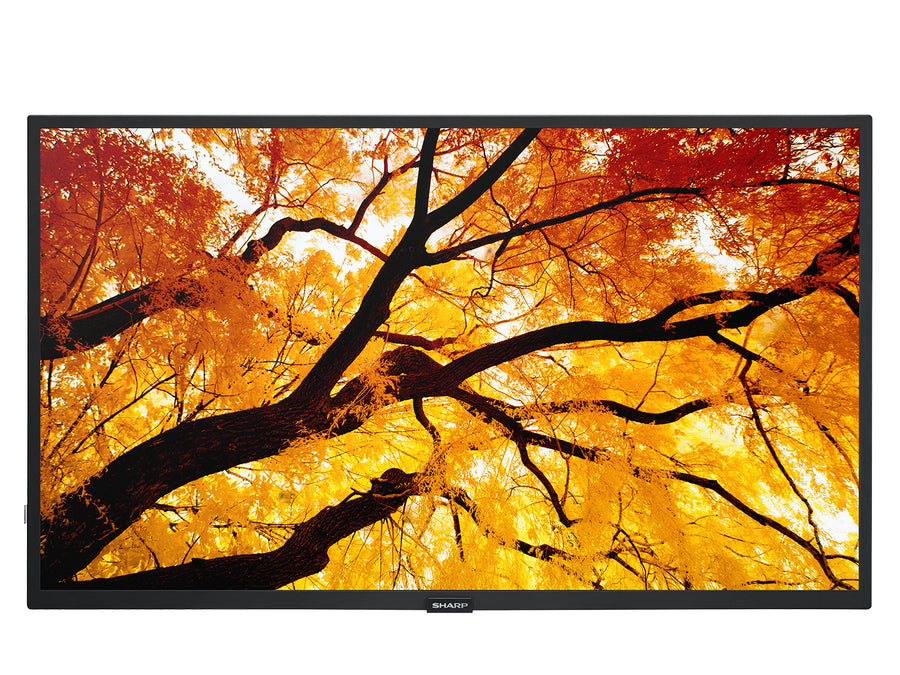

Sharp MultiSync M Series 32-inch Full HD Digital Signage Display – PN-M322
The Sharp MultiSync PN-M322 is a 32-inch Full HD digital signage display for 24/7 commercial environments such as retail and transport. It has a 450 nits VA panel with a 4,000:1 contrast ratio and full RS-232C and LAN control. Procure.ae supplies the PN-M322 across the UAE.
The PN-M322 has a 1920 x 1080 native resolution on a VA panel rated at 450 nits, with a 4,000:1 typical contrast ratio and 178° viewing angles. Its anti-glare panel keeps the picture readable in bright areas. Response time is 8 ms at a 60 Hz refresh rate, and colour gamut is 72% of NTSC. The display is rated for 24/7 operation, has a 3-year warranty including the backlight, and includes a temperature sensor with programmable actions.

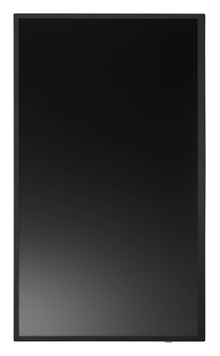

The M322 suits shop windows, queue screens, corridors and transport information displays. It supports landscape and portrait orientation and mounts on 100 x 100 mm or 200 x 200 mm VESA patterns. It offers HDMI, DisplayPort, VGA and USB 2.0 media inputs, and external control through RS-232C, LAN, HDMI CEC, PJLink, SNMP and AMX NetLinx. An optional OPS or SDM adapter and the MPi4 box extend the display with a computing module.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Digital Signage Display
- Full HD signage panel
- Anti-glare display
- Multiple inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD signage panel
1920 x 1080 resolution on a 32-inch VA panel.
02
Anti-glare display
450 nits brightness with a matte finish for bright areas.
03
Multiple inputs
HDMI x 2, DisplayPort x 1 and VGA, with USB 2.0 media playback.
04
24/7 operation
rated for continuous use with an integrated schedule timer.
05
External control
RS-232C, LAN, HDMI CEC, PJLink, SNMP and AMX NetLinx support.
06
Security settings
disable hardware buttons, disable IR and emergency notification.
07
Compute expansion
OPS/SDM adapter and MPi4 box options for an integrated player.
08
3-year warranty
includes the backlight.
Specifications
31 specificationsGeneral
Key FeaturesFull HD VA panel, 450 nits, 24/7 operation, RS-232C and LAN control, PJLink and SNMP, schedule timer, OPS/SDM and MPi4 expansion, emergency notification
ModelPN-M322
TypeDigital Signage Display
What's in the BoxDisplay, HDMI cable, power cable, remote control, 2x AAA batteries, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size11.8 mm top, 11.9 mm sides, 17.2 mm bottom
Brightness450 nits
Color Depth16.7 million colours (8-bit)
Color Gamut72% of NTSC
Contrast Ratio4,000:1
Panel TechnologyVA
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Ethernet100 Mbit/s
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, VGA In × 1, USB 2.0 × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Serial PortRS-232C, 9600 bps
Power
Power Consumption40 W (shipping)
Physical
Dimensions726.5 x 425.4 x 66.5 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight6.3 kg
Compliance
CertificationsCE, EAC, RoHS
IP RatingIP5x front, IP2x back
Warranty3 years
Downloads
Manufacturer documents for the Sharp MultiSync M Series 32-inch Full HD Digital Signage Display – PN-M322 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Sharp PN-M322?
The PN-M322 is a 32-inch display with a native 1920 x 1080 resolution (Full HD) and a 16:9 aspect ratio. It has a 450 nits VA panel, a 4,000:1 typical contrast ratio and an 8 ms response time at 60 Hz.
Can the PN-M322 be wall mounted?
Yes. The rear has VESA mounting holes at 100 x 100 mm and 200 x 200 mm with M4 screws. The display weighs 6.3 kg, so a light wall bracket is suitable. Feet, a presence sensor and wall mounts are listed as optional accessories.
Does the PN-M322 integrate with a building control or management system?
Yes. The display supports RS-232C, LAN, HDMI CEC, PJLink, SNMP and AMX NetLinx control, plus HTTP browser management. It also supports scheduled timers and automated email alerts for remote monitoring.
Can the PN-M322 run a media player without a PC?
Yes. The display has a USB 2.0 media player input for stored content, and its integrated schedule function can run playback at set times. An optional MPi4 box or OPS/SDM module can add a built-in computing option.
What are the operating conditions for the PN-M322?
The display operates at 0 to 40 °C and 20% to 80% RH humidity, and it runs on 100–240 V AC at 50/60 Hz. It draws 40 W in shipping mode and carries an IP5x front rating and IP2x back rating.
Can I buy the PN-M322 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
