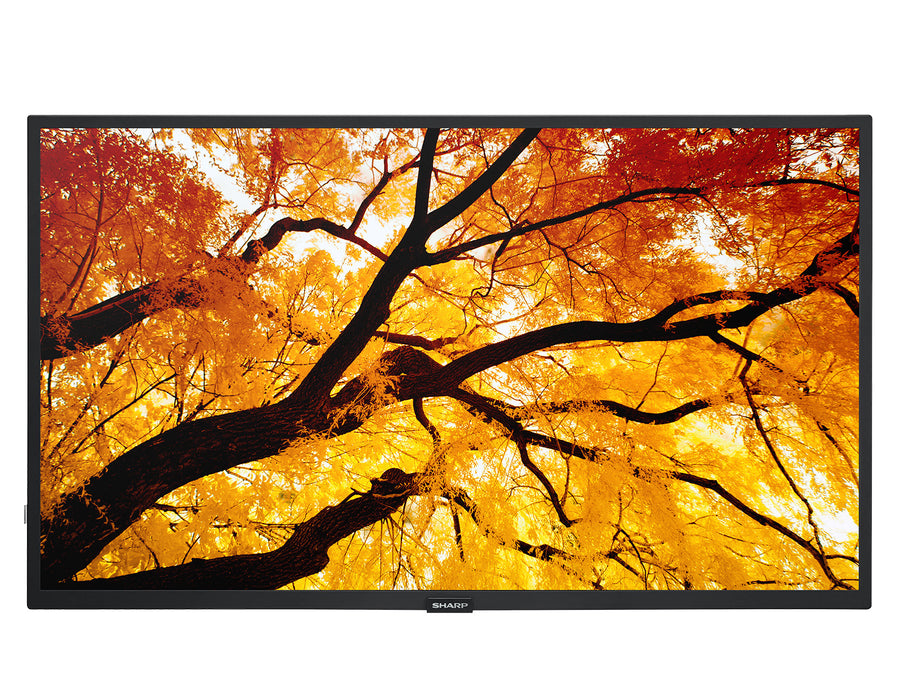

Sharp MultiSync M Series 32-inch Full HD Digital Signage Display – PN-M322

The Sharp MultiSync PN-M322 is a 32-inch Full HD digital signage display for 24/7 commercial environments such as retail and transport. It has a 450 nits VA panel with a 4,000:1 contrast ratio and full RS-232C and LAN control. Procure.ae supplies the PN-M322 across the UAE.

The PN-M322 has a 1920 x 1080 native resolution on a VA panel rated at 450 nits, with a 4,000:1 typical contrast ratio and 178° viewing angles. Its anti-glare panel keeps the picture readable in bright areas. Response time is 8 ms at a 60 Hz refresh rate, and colour gamut is 72% of NTSC. The display is rated for 24/7 operation, has a 3-year warranty including the backlight, and includes a temperature sensor with programmable actions.

The M322 suits shop windows, queue screens, corridors and transport information displays. It supports landscape and portrait orientation and mounts on 100 x 100 mm or 200 x 200 mm VESA patterns. It offers HDMI, DisplayPort, VGA and USB 2.0 media inputs, and external control through RS-232C, LAN, HDMI CEC, PJLink, SNMP and AMX NetLinx. An optional OPS or SDM adapter and the MPi4 box extend the display with a computing module.

Screen Size

32 inch

Resolution

1920 x 1080 (Full HD)

Brightness

450 nits

Type

Digital Signage Display

Weight

6.3 kg

Key features

Full HD signage panel

1920 x 1080 resolution on a 32-inch VA panel.

Anti-glare display

450 nits brightness with a matte finish for bright areas.

Multiple inputs

HDMI x 2, DisplayPort x 1 and VGA, with USB 2.0 media playback.

24/7 operation

rated for continuous use with an integrated schedule timer.

External control

RS-232C, LAN, HDMI CEC, PJLink, SNMP and AMX NetLinx support.

Security settings

disable hardware buttons, disable IR and emergency notification.

Compute expansion

OPS/SDM adapter and MPi4 box options for an integrated player.

3-year warranty

includes the backlight.

Specifications

General
Key Features	Full HD VA panel, 450 nits, 24/7 operation, RS-232C and LAN control, PJLink and SNMP, schedule timer, OPS/SDM and MPi4 expansion, emergency notification
Model	PN-M322
Type	Digital Signage Display
What's in the Box	Display, HDMI cable, power cable, remote control, 2x AAA batteries, setup manual

Display
Aspect Ratio	16:9
Backlight	Direct LED
Bezel Size	11.8 mm top, 11.9 mm sides, 17.2 mm bottom
Brightness	450 nits
Color Depth	16.7 million colours (8-bit)
Color Gamut	72% of NTSC
Contrast Ratio	4,000:1
Panel Technology	VA
Refresh Rate	60 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	8 ms
Screen Size	32 inch
Viewing Angle	178° horizontal / 178° vertical

Connectivity
Ethernet	100 Mbit/s
Input Voltage	100–240 V AC, 50/60 Hz
Ports	HDMI In × 2, DisplayPort In × 1, VGA In × 1, USB 2.0 × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Serial Port	RS-232C, 9600 bps

Power
Power Consumption	40 W (shipping)

Physical
Dimensions	726.5 x 425.4 x 66.5 mm
Duty Cycle	24/7
Operating Humidity	20% to 80% RH
Operating Temperature	0 to 40 °C
VESA Mount	100 x 100 mm, 200 x 200 mm
Weight	6.3 kg

Compliance
Certifications	CE, EAC, RoHS
IP Rating	IP5x front, IP2x back
Warranty	3 years
