SamsungVideo WallsSKU UD46E-B

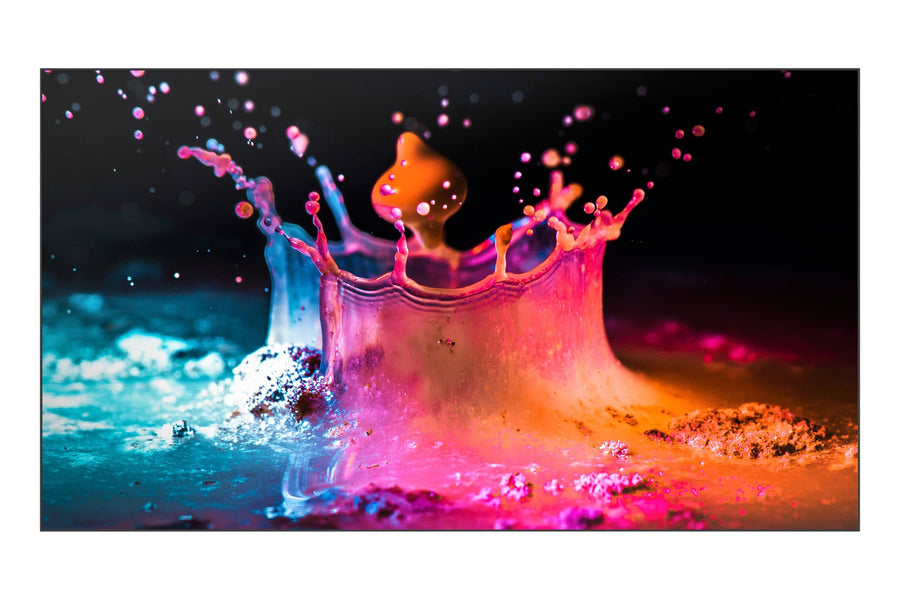

Samsung UDE-B Series 46-inch Video Wall Display – UD46E-B
The Samsung UD46E-B is a 46-inch video wall display for control rooms, lobbies and retail spaces. It has a 1920 x 1080 D-LED DID panel rated at 500 nits, a 3,500:1 contrast ratio and a 2.3 mm top and left bezel. Procure.ae supplies the UD46E-B in the UAE for businesses, with quotes, delivery and installation.
The UD46E-B pairs a 1920 x 1080 (Full HD) D-LED DID panel with 8-bit color, 16.7 million colors and a 72% color gamut. Brightness is rated at 500 nits, with a 3,500:1 contrast ratio and 10,000:1 dynamic contrast. The panel has an 8 ms response time and 178-degree horizontal and vertical viewing angles. Bezels measure 2.3 mm at the top and left and 1.2 mm at the right and bottom, which suits tiled layouts.
The UD46E-B has a 600 x 400 mm VESA pattern, so it fits any mount with that hole spacing, and the manufacturer lists the WMN-46VD mount for this model. The panel measures 1022.1 x 576.6 x 97.4 mm and weighs 16.2 kg. A DisplayPort 1.2 loop-out passes the signal to the next panel in a chain. It runs on 100 to 240 V AC and draws 87 W typical and 143 W maximum.
Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
- Full HD panel
- Video wall brightness
- Dynamic contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
1920 x 1080 resolution with 8-bit (16.7 million) color.
02
Video wall brightness
500 nits brightness with a 3,500:1 contrast ratio.
03
Dynamic contrast
10,000:1 dynamic contrast ratio and 8 ms response time.
04
Narrow bezel
2.3 mm top and left, 1.2 mm right and bottom.
05
Wall-mount ready
600 x 400 mm VESA pattern, with the WMN-46VD mount listed.
06
Flexible inputs
Two HDMI, DisplayPort 1.2 with loop-out, DVI-D and analog D-Sub.
Specifications
25 specificationsGeneral
Key Features46-inch D-LED DID panel, 1920 x 1080 resolution, 500 nits, 10,000:1 dynamic contrast, 2.3 mm bezel, DisplayPort loop-out, 600 x 400 mm VESA
ModelUD46E-B
TypeVideo Wall Display
What's in the BoxQuick setup guide, warranty card, DisplayPort cable, stereo-to-DB9 cable, power cord, remote control, batteries
Display
Bezel Size2.3 mm (top/left), 1.2 mm (right/bottom)
Brightness500 nits
Color Depth8-bit (16.7 million colors)
Color Gamut72%
Contrast Ratio3,500:1
Display TypeD-LED DID
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size46 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort 1.2 In × 1, DisplayPort 1.2 Out × 1 (loop-out), DVI-D In × 1, Analog D-Sub In × 1
Power
Power Consumption87 W (typical), 143 W (maximum)
Physical
Dimensions1022.1 x 576.6 x 97.4 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions1160 x 715 x 280 mm
Shipping Weight22.6 kg
VESA Mount600 x 400 mm
Weight16.2 kg
Compliance
CertificationsFCC, CE, VCCI, KCC, BSMI, C-Tick, CCC, UL, CSA, TUV, KC
Downloads
Manufacturer documents for the Samsung UDE-B Series 46-inch Video Wall Display – UD46E-B — datasheets, manuals, drawings and certificates.
- User manual – Samsung Video Wall UDE-A Series / Video Wall UDE-B Series 55”
- User manual – Samsung Video Wall UDE-A Series / Video Wall UDE-B Series 55” (Arabic)
- Quick start guide – Samsung Video Wall UDE-A Series / Video Wall UDE-B Series 55”
- Quick start guide – Video Wall UDE-B Series 55”
- Quick start guide – Samsung Video Wall UDE-A Series / Video Wall UDE-B Series 55”
- DoC LH55UDEBLBB UD55E B
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the UD46E-B have?
The UD46E-B has a 1920 x 1080 (Full HD) resolution and is rated at 500 nits. Its contrast ratio is 3,500:1, with 10,000:1 dynamic contrast, and its response time is 8 ms.
Can I link several UD46E-B displays into one video wall?
Yes. The manufacturer lists a DisplayPort 1.2 loop-out, which passes the signal from one panel to the next in a chain. Confirm the full layout with Procure.ae before ordering, since cabling depends on the project.
How is the UD46E-B mounted?
It uses a 600 x 400 mm VESA pattern, and the manufacturer lists the WMN-46VD mount for this model. The panel weighs 16.2 kg, so confirm the bracket's load rating before installation. Procure.ae can arrange installation across the UAE.
Which inputs does the UD46E-B have?
It has two HDMI video inputs, one DisplayPort 1.2 input, one DVI-D input and an analog D-Sub input. Audio uses a stereo mini jack in and out, and a DisplayPort 1.2 loop-out is provided.
Can I buy the UD46E-B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
