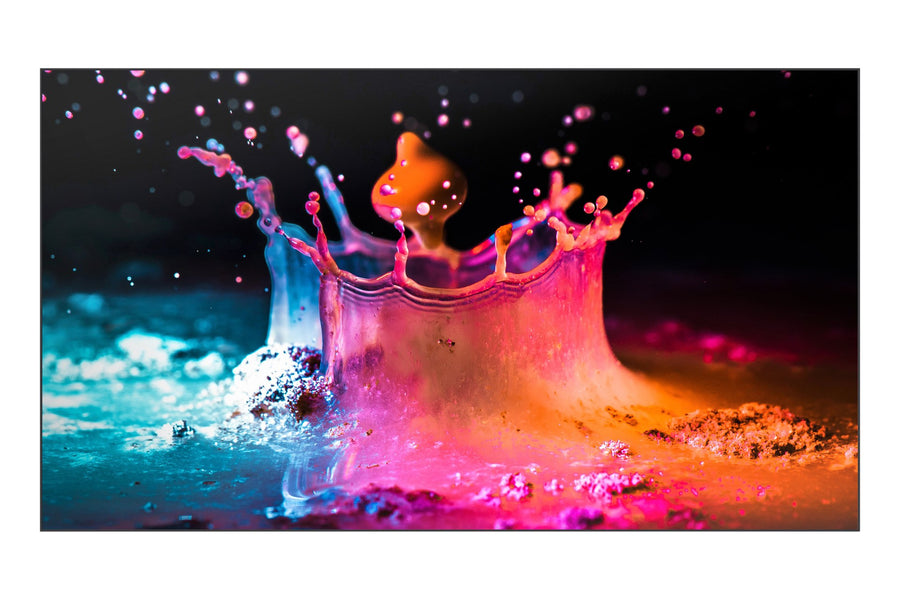

Samsung UDE-B Series 46-inch Video Wall Display – UD46E-B

Samsung UDE-B Series 46-inch Video Wall Display – UD46E-B

The Samsung UD46E-B is a 46-inch video wall display for control rooms, lobbies and retail spaces. It has a 1920 x 1080 D-LED DID panel rated at 500 nits, a 3,500:1 contrast ratio and a 2.3 mm top and left bezel. Procure.ae supplies the UD46E-B in the UAE for businesses, with quotes, delivery and installation.

The UD46E-B pairs a 1920 x 1080 (Full HD) D-LED DID panel with 8-bit color, 16.7 million colors and a 72% color gamut. Brightness is rated at 500 nits, with a 3,500:1 contrast ratio and 10,000:1 dynamic contrast. The panel has an 8 ms response time and 178-degree horizontal and vertical viewing angles. Bezels measure 2.3 mm at the top and left and 1.2 mm at the right and bottom, which suits tiled layouts.

The UD46E-B has a 600 x 400 mm VESA pattern, so it fits any mount with that hole spacing, and the manufacturer lists the WMN-46VD mount for this model. The panel measures 1022.1 x 576.6 x 97.4 mm and weighs 16.2 kg. A DisplayPort 1.2 loop-out passes the signal to the next panel in a chain. It runs on 100 to 240 V AC and draws 87 W typical and 143 W maximum.

Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
Weight
16.2 kg

Key features

01
Full HD panel
1920 x 1080 resolution with 8-bit (16.7 million) color.
02
Video wall brightness
500 nits brightness with a 3,500:1 contrast ratio.
03
Dynamic contrast
10,000:1 dynamic contrast ratio and 8 ms response time.
04
Narrow bezel
2.3 mm top and left, 1.2 mm right and bottom.
05
Wall-mount ready
600 x 400 mm VESA pattern, with the WMN-46VD mount listed.
06
Flexible inputs
Two HDMI, DisplayPort 1.2 with loop-out, DVI-D and analog D-Sub.

Specifications

General
Key Features46-inch D-LED DID panel, 1920 x 1080 resolution, 500 nits, 10,000:1 dynamic contrast, 2.3 mm bezel, DisplayPort loop-out, 600 x 400 mm VESA
ModelUD46E-B
TypeVideo Wall Display
What's in the BoxQuick setup guide, warranty card, DisplayPort cable, stereo-to-DB9 cable, power cord, remote control, batteries
Display
Bezel Size2.3 mm (top/left), 1.2 mm (right/bottom)
Brightness500 nits
Color Depth8-bit (16.7 million colors)
Color Gamut72%
Contrast Ratio3,500:1
Display TypeD-LED DID
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size46 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort 1.2 In × 1, DisplayPort 1.2 Out × 1 (loop-out), DVI-D In × 1, Analog D-Sub In × 1
Power
Power Consumption87 W (typical), 143 W (maximum)
Physical
Dimensions1022.1 x 576.6 x 97.4 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions1160 x 715 x 280 mm
Shipping Weight22.6 kg
VESA Mount600 x 400 mm
Weight16.2 kg
Compliance
CertificationsFCC, CE, VCCI, KCC, BSMI, C-Tick, CCC, UL, CSA, TUV, KC
