PhilipsInteractive Flat PanelsSKU 75BDL3652T/00

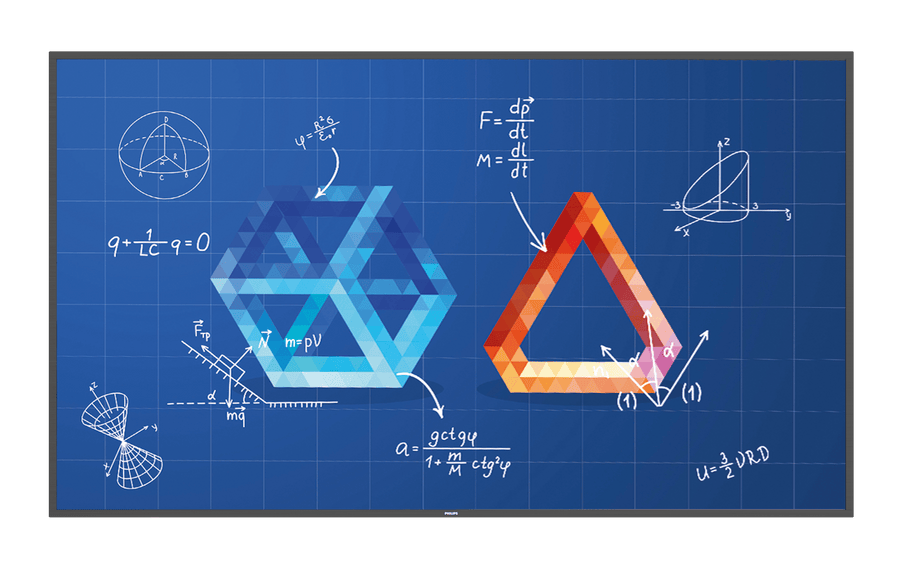

Philips T-Line 75-inch 4K UHD Interactive Flat Panel – 75BDL3652T/00
The Philips 75BDL3652T/00 is a 75-inch 4K UHD interactive flat panel for boardrooms, classrooms and large collaboration spaces. It offers 20-point infrared touch on anti-glare toughened glass, a 3840 x 2160 IPS panel with 420 nits brightness and Android 9. Procure.ae supplies the Philips 75BDL3652T/00 across the UAE.
The 75BDL3652T/00 uses a 74.5-inch IPS panel at 3840 x 2160 resolution with a 60 Hz refresh rate, 178-degree viewing angles and 500,000:1 dynamic contrast. Its 0-gap infrared touch supports up to 20 simultaneous touch points, so a larger group can work on the same screen. The 9 ms typical response time and anti-glare toughened glass suit heavy daily use. Two 20 W RMS speakers are built in, and the panel supports portrait and landscape placement.
The panel runs Android 9 with 4 GB RAM and 32 GB eMMC storage, has built-in Wi-Fi and an OPS slot for a compatible computing module. It accepts HDMI 2.0, DisplayPort 1.2, DVI-I and USB-C sources, and supports network control through RJ45, RS232C and IR. Ratings are 190 W typical and 380 W maximum. It weighs 53.0 kg and mounts on a 600 x 400 mm VESA pattern or the Smart Insert 100 x 100 mm pattern.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
420 nits
Touch Technology
Infrared (0-gap)
- 20-Point Infrared Touch
- 4K UHD IPS Panel
- Android 9 Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-Point Infrared Touch
0-gap infrared touch supports up to 20 simultaneous touch points.
02
4K UHD IPS Panel
3840 x 2160 resolution with 420 nits brightness and 178-degree viewing angles.
03
Android 9 Platform
built-in operating system with 4 GB RAM and 32 GB eMMC storage.
04
Built-In Wi-Fi
wireless connectivity for network content management.
05
OPS Slot
accepts a compatible OPS computing module for PC-based content.
06
Powerful Speakers
two 20 W RMS built-in speakers with 3.5 mm audio input and output jacks.
07
Smart Insert Mounting
100 x 100 mm Smart Insert pattern plus 600 x 400 mm wall mount.
08
Multiple Inputs
HDMI 2.0 x 4, DisplayPort 1.2, DVI-I and USB-C inputs.
Specifications
32 specificationsGeneral
Key Features20-point infrared touch, 4K UHD IPS panel, Android 9, Built-in Wi-Fi, OPS slot, 2 x 20 W speakers, Smart Insert mounting, RJ45 and RS232C control, Landscape or portrait placement
Model75BDL3652T/00
TypeInteractive Flat Panel
What's in the BoxCleaning cloth, DVI-D cable, HDMI cable, AC power cord, RS232 daisy-chain cable, IR sensor cable, touch pens, remote control, quick start guide
Display
Aspect Ratio16:9
Bezel Size17.8 mm
Brightness420 nits
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size75 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared (0-gap)
Viewing Angle178° horizontal and vertical
Performance
Operating SystemAndroid 9
RAM4 GB
Storage32 GB eMMC
Audio
Speaker Output2 x 20 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot supported
PortsHDMI 2.0 × 4, DisplayPort 1.2 × 1, DVI-I × 1, USB 3.0 × 2, USB 2.0 × 2, USB-C × 1, RJ45, RS232C, IR
Wi-FiBuilt-in Wi-Fi
Power
Power Consumption190 W (typical), 380 W (max)
Physical
MountingSmart Insert 100 x 100 mm pattern, plus 600 x 400 mm wall mount
Operating Humidity20% to 80% RH (operational)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight53.0 kg
Compliance
CertificationsCE, FCC Class A, RoHS, CB, BSMI, EAC, ETL
Warranty5 years
Downloads
Manufacturer documents for the Philips T-Line 75-inch 4K UHD Interactive Flat Panel – 75BDL3652T/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Philips 75BDL3652T/00 a touch display?
Yes. The Philips 75BDL3652T/00 is a 75-inch interactive flat panel with 0-gap infrared touch. It supports up to 20 simultaneous touch points for multi-user collaboration, presentations and wayfinding. It suits classrooms, boardrooms and public lobbies.
Does the 75BDL3652T/00 run Android and support Wi-Fi?
Yes. The panel runs Android 9 and includes built-in Wi-Fi. It has 4 GB RAM and 32 GB eMMC storage. Check that any third-party app you plan to use supports Android 9.
Can the 75BDL3652T/00 be wall mounted?
Yes. The panel supports a 600 x 400 mm VESA pattern with M8 screws and a Smart Insert 100 x 100 mm pattern. It weighs 53.0 kg, so the bracket and wall structure must be rated for that load. Procure.ae also provides installation across the UAE.
What room size suits a 75-inch 4K panel?
A 75-inch 4K UHD panel suits boardrooms, classrooms and lobbies where viewers sit several metres from the screen. The manufacturer's specifications do not state a recommended room size, so confirm the viewing distance and the number of participants before choosing the size.
How is the 75BDL3652T/00 controlled and integrated?
The panel supports RJ45, RS232C and IR control, plus IR, RS232 and DisplayPort loop-through. These interfaces allow integration with room control systems and daisy-chaining of several displays from one control source.
