PhilipsDigital SignageSKU 75BDL3511Q/00

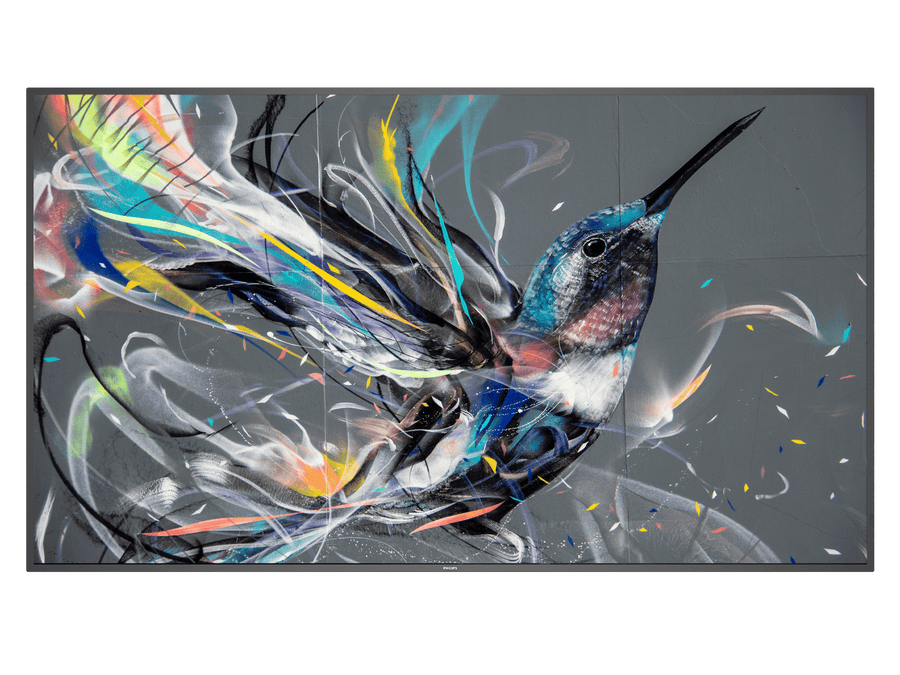

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3511Q/00
The Philips 75BDL3511Q/00 is a 75-inch 4K UHD Q-Line display for 18/7 business and public signage. It offers 3840 x 2160 resolution, 400 nits brightness, IPS panel technology and an 8 ms typical response time. Procure.ae supplies the Philips 75BDL3511Q/00 across the UAE.
The 75BDL3511Q/00 has a 74.5-inch (189.3 cm) 4K UHD IPS panel with 3840 x 2160 resolution, 400 nits brightness and a 1,200:1 typical contrast ratio. It has an 8 ms typical response time, 178-degree horizontal and vertical viewing angles and a 500,000:1 dynamic contrast ratio. Two 10 W RMS speakers are built in. The display supports tiled video walls of up to 10 x 15 panels, and the manufacturer rates it for landscape and portrait placement.
The display includes an OPS slot, so a compatible OPS computer module can be fitted. Its video inputs are HDMI 2.0 x 3 and DVI-I, with USB 2.0 x 2 and 3.5 mm audio in and out. Control is through RS232C, IR and RJ45, and Smart Insert is listed as an ease-of-installation feature. The 600 x 400 mm wall-mount pattern uses M8 fixings, and the display weighs 37.3 kg.
Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Professional Display (Digital Signage)
- 18/7 signage operation
- IPS panel
- OPS slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
18/7 signage operation
Rated for landscape and portrait placement at 18/7 operation.
02
IPS panel
3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles.
03
OPS slot
Accepts a compatible OPS computer module for content playback.
04
Video inputs
HDMI 2.0 x 3, DVI-I x 1 and USB 2.0 x 2.
05
Tiled video wall
Supports tiled matrices of up to 10 x 15 displays.
06
Network control
RS232C, IR and RJ45 control with lockable remote and keyboard.
07
Smart Insert
Listed by the manufacturer as an ease-of-installation feature.
08
Energy saving
180 W typical and 320 W maximum consumption with Smart Power.
Specifications
24 specificationsGeneral
Key FeaturesIPS panel, 4K UHD, 400 nits brightness, 18/7 landscape and portrait operation, OPS slot, tiled video wall up to 10 x 15, RS232C and RJ45 control, Smart Insert installation
Model75BDL3511Q/00
TypeProfessional Display (Digital Signage)
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even bezel)
Brightness400 nits
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 × 3, DVI-I × 1, USB 2.0 × 2, OPS slot, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption180 W (typical), 320 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight37.3 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3511Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Philips 75BDL3511Q/00?
It is a 75-inch class display with a 74.5-inch (189.3 cm) diagonal, a 3840 x 2160 (4K UHD) IPS panel and a 16:9 aspect ratio. It runs at 60 Hz with 400 nits brightness and an 8 ms typical response time.
Can I fit an OPS computer module to this display?
Yes. The display includes an OPS slot, so a compatible OPS computer module can be fitted. Confirm the module specification with Procure.ae before ordering, as the manufacturer's specifications do not list supported OPS modules.
Can it be controlled by a control system or managed remotely?
Yes. The display has RS232C, IR and RJ45 control ports and is listed as network controllable over RS232 and RJ45. The remote control signal and keyboard control can be locked.
Can the 75BDL3511Q/00 be wall-mounted?
Yes. The wall-mount pattern is 600 x 400 mm with M8 fixings, and the display weighs 37.3 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can advise on mounting for your room.
Can it run in portrait orientation for 18/7 operation?
Yes. The manufacturer rates the display for both landscape and portrait placement at 18/7 operation. Typical power consumption is 180 W and the maximum is 320 W, with Smart Power listed as an energy-saving function.
