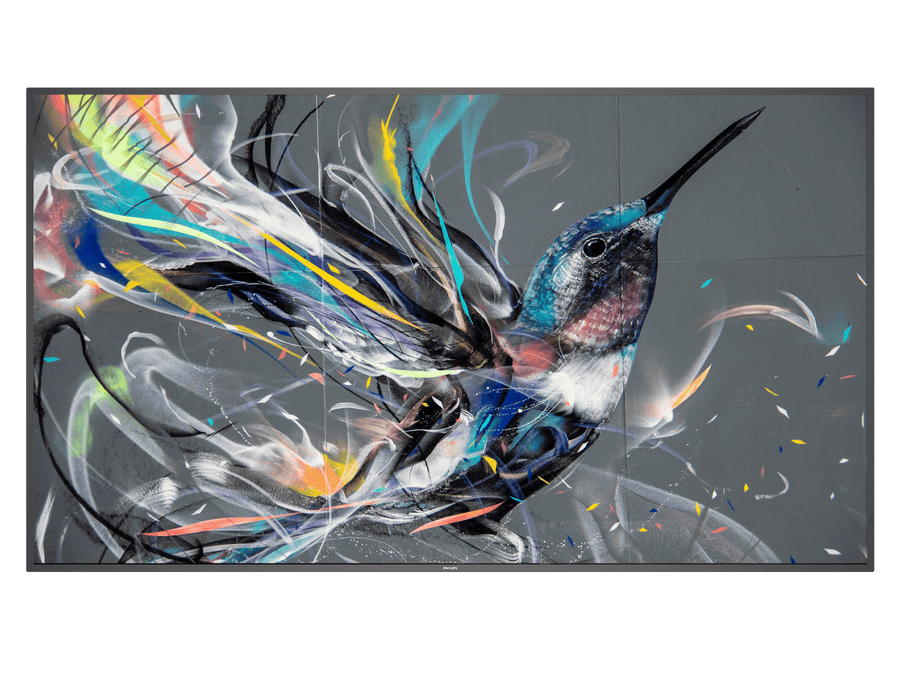

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3511Q/00

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3511Q/00

The Philips 75BDL3511Q/00 is a 75-inch 4K UHD Q-Line display for 18/7 business and public signage. It offers 3840 x 2160 resolution, 400 nits brightness, IPS panel technology and an 8 ms typical response time. Procure.ae supplies the Philips 75BDL3511Q/00 across the UAE.

The 75BDL3511Q/00 has a 74.5-inch (189.3 cm) 4K UHD IPS panel with 3840 x 2160 resolution, 400 nits brightness and a 1,200:1 typical contrast ratio. It has an 8 ms typical response time, 178-degree horizontal and vertical viewing angles and a 500,000:1 dynamic contrast ratio. Two 10 W RMS speakers are built in. The display supports tiled video walls of up to 10 x 15 panels, and the manufacturer rates it for landscape and portrait placement.

The display includes an OPS slot, so a compatible OPS computer module can be fitted. Its video inputs are HDMI 2.0 x 3 and DVI-I, with USB 2.0 x 2 and 3.5 mm audio in and out. Control is through RS232C, IR and RJ45, and Smart Insert is listed as an ease-of-installation feature. The 600 x 400 mm wall-mount pattern uses M8 fixings, and the display weighs 37.3 kg.

Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Professional Display (Digital Signage)
Weight
37.3 kg

Key features

01
18/7 signage operation
Rated for landscape and portrait placement at 18/7 operation.
02
IPS panel
3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles.
03
OPS slot
Accepts a compatible OPS computer module for content playback.
04
Video inputs
HDMI 2.0 x 3, DVI-I x 1 and USB 2.0 x 2.
05
Tiled video wall
Supports tiled matrices of up to 10 x 15 displays.
06
Network control
RS232C, IR and RJ45 control with lockable remote and keyboard.
07
Smart Insert
Listed by the manufacturer as an ease-of-installation feature.
08
Energy saving
180 W typical and 320 W maximum consumption with Smart Power.

Specifications

General
Key FeaturesIPS panel, 4K UHD, 400 nits brightness, 18/7 landscape and portrait operation, OPS slot, tiled video wall up to 10 x 15, RS232C and RJ45 control, Smart Insert installation
Model75BDL3511Q/00
TypeProfessional Display (Digital Signage)
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even bezel)
Brightness400 nits
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 × 3, DVI-I × 1, USB 2.0 × 2, OPS slot, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption180 W (typical), 320 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight37.3 kg
Compliance
Warranty3 years
