PhilipsDigital SignageSKU 86BDL3550Q/00

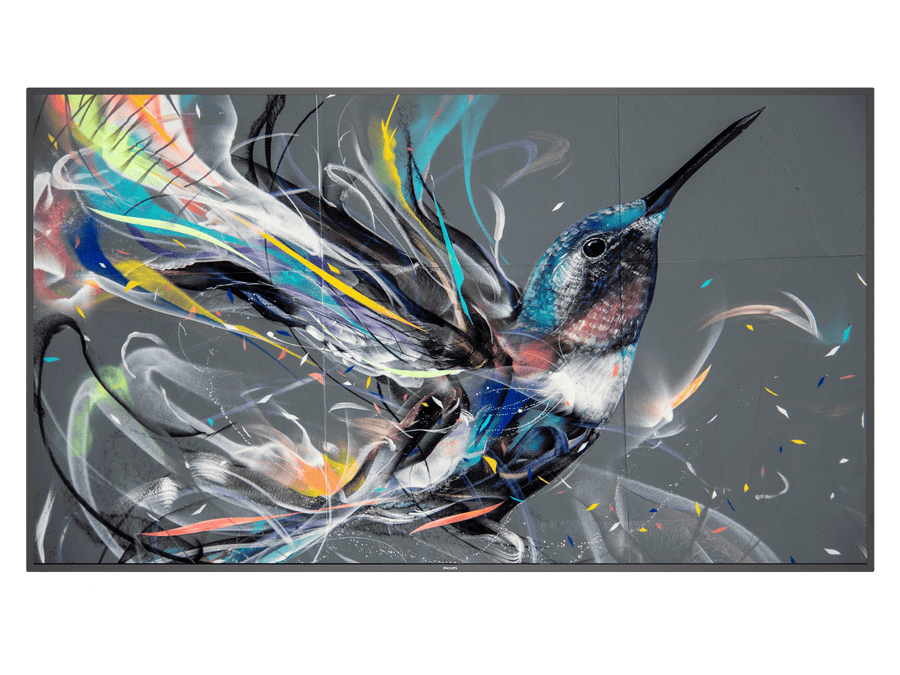

Philips 86-inch Q-Line 4K UHD Digital Signage Display with VGA – 86BDL3550Q/00
The Philips 86BDL3550Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 3000 Series, with HDMI, DVI-D and VGA inputs. It runs Android 8.0, offers 400 nits brightness and a tiled matrix of up to 15 x 15. Procure.ae supplies it across the UAE, with delivery and installation.
The 86BDL3550Q/00 uses a 3840 x 2160 IPS panel rated at 400 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles suit large lobby and retail walls. Android 8.0 runs on a dual-core Cortex-A53 at 1.1 GHz and a dual-core Cortex-A73 at 1.15 GHz, with 2 GB RAM, 8 GB storage and ARM Mali G51 graphics. Two 10 W RMS speakers provide built-in audio.
Connect sources through three HDMI 2.0 inputs, a DVI-D input and a VGA input, and use the USB 2.0 ports for media. The OPS slot takes an OPS module, and RJ45, RS232C and IR in and out allow remote management. The display is listed for landscape or portrait placement at 18/7, and Smart Insert is an ease-of-installation feature. Tiling goes up to 15 x 15 for large video walls.
Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- Android 8.0 platform
- 4K UHD IPS panel
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 8.0 platform
Android 8.0 on a dual-core Cortex-A53 and dual-core Cortex-A73 processor.
02
4K UHD IPS panel
3840 x 2160 resolution on an 85.6-inch 16:9 screen.
03
Brightness and contrast
400 cd/m² brightness with 1,200:1 typical contrast.
04
Multiple video inputs
HDMI 2.0, DVI-D and VGA inputs for mixed source types.
05
Tiled matrix
A tiled matrix of up to 15 x 15 for large video walls.
06
Smart Insert installation
Listed by the manufacturer as an ease-of-installation feature.
07
OPS expansion slot
An OPS slot for an OPS module.
08
Network control
RJ45, RS232C and IR in and out for remote management.
Specifications
29 specificationsGeneral
Key FeaturesAndroid 8.0, VGA and DVI-D inputs, OPS slot, tiling up to 15 x 15, Smart Insert installation, Smart Power, RJ45 and RS232C control
Model86BDL3550Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cables, M3 and M4 screws, AC power cord, IR sensor cable (1.8 m), USB cover, quick start guide
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
ProcessorDual-core Cortex-A53 1.1 GHz + dual-core Cortex-A73 1.15 GHz
RAM2 GB
Storage8 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDVI-D In × 1, HDMI 2.0 In × 3, VGA In × 1, USB 2.0 × 2, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption320 W (typical), 480 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.5 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Philips 86-inch Q-Line 4K UHD Digital Signage Display with VGA – 86BDL3550Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 86BDL3550Q/00 a 4K display?
Yes. It has a 3840 x 2160 IPS panel on an 85.6-inch 16:9 screen. Brightness is 400 cd/m², contrast is 1,200:1 typical and response time is 8 ms typical, with 60 Hz as the optimum refresh rate.
Does the 86BDL3550Q/00 have a VGA input?
Yes. It has a VGA (analogue D-Sub) input alongside one DVI-D input and three HDMI 2.0 inputs, which suits sources that output VGA. It also has two USB 2.0 ports and 3.5 mm audio input and output.
Can the 86BDL3550Q/00 be tiled into a video wall?
Yes. The manufacturer lists a tiled matrix of up to 15 x 15. Tiling needs matching displays and a suitable source and control setup, so confirm the layout with Procure.ae before ordering.
Can the 86BDL3550Q/00 be controlled remotely?
Yes. It has RJ45, RS232C and IR in and out, with hidden, lockable keyboard control. A remote control, RS232 cable, RS232 daisy-chain cable and IR sensor cable (1.8 m) are included.
How is the 86BDL3550Q/00 mounted?
It uses a 600 x 400 mm VESA pattern with M8 fixings, and the listed weight is 49.5 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can arrange installation across the UAE.
Can I buy the 86BDL3550Q/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
