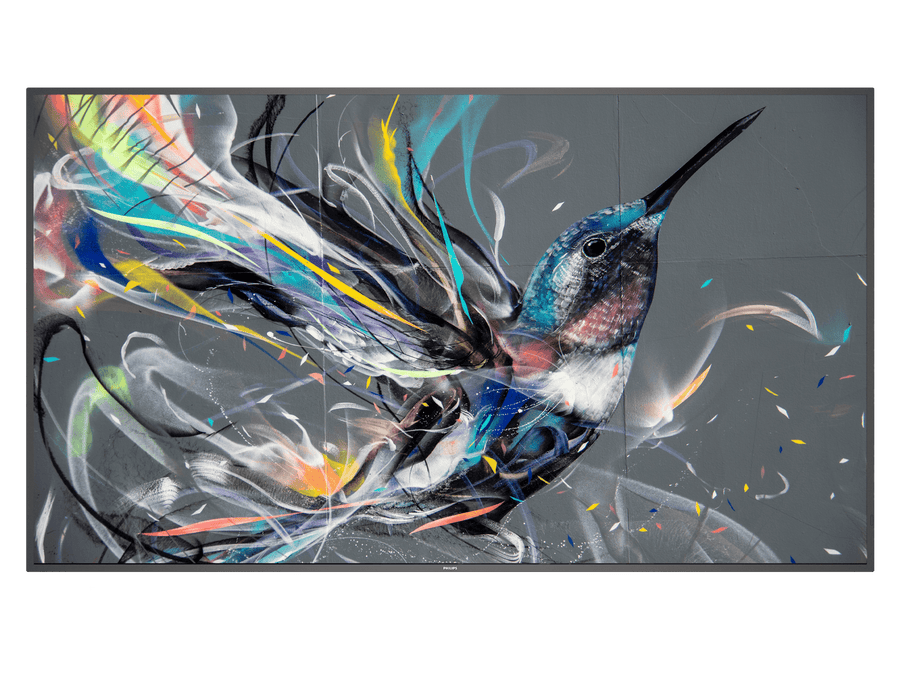

Philips 86-inch Q-Line 4K UHD Digital Signage Display with VGA – 86BDL3550Q/00
The Philips 86BDL3550Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 3000 Series, with HDMI, DVI-D and VGA inputs. It runs Android 8.0, offers 400 nits brightness and a tiled matrix of up to 15 x 15. Procure.ae supplies it across the UAE, with delivery and installation.
The 86BDL3550Q/00 uses a 3840 x 2160 IPS panel rated at 400 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles suit large lobby and retail walls. Android 8.0 runs on a dual-core Cortex-A53 at 1.1 GHz and a dual-core Cortex-A73 at 1.15 GHz, with 2 GB RAM, 8 GB storage and ARM Mali G51 graphics. Two 10 W RMS speakers provide built-in audio.
Connect sources through three HDMI 2.0 inputs, a DVI-D input and a VGA input, and use the USB 2.0 ports for media. The OPS slot takes an OPS module, and RJ45, RS232C and IR in and out allow remote management. The display is listed for landscape or portrait placement at 18/7, and Smart Insert is an ease-of-installation feature. Tiling goes up to 15 x 15 for large video walls.
Key features
Specifications
| Key Features | Android 8.0, VGA and DVI-D inputs, OPS slot, tiling up to 15 x 15, Smart Insert installation, Smart Power, RJ45 and RS232C control |
| Model | 86BDL3550Q/00 |
| Type | Digital Signage Display |
| What's in the Box | Remote control with AAA batteries, RS232 cables, M3 and M4 screws, AC power cord, IR sensor cable (1.8 m), USB cover, quick start guide |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Color Depth | 1.07 billion colours |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 85.6 inch |
| Viewing Angle | 178° horizontal, 178° vertical |
| Graphics | ARM Mali G51 |
| Operating System | Android 8.0 |
| Processor | Dual-core Cortex-A53 1.1 GHz + dual-core Cortex-A73 1.15 GHz |
| RAM | 2 GB |
| Storage | 8 GB |
| Speaker Output | 2 x 10 W RMS |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DVI-D In × 1, HDMI 2.0 In × 3, VGA In × 1, USB 2.0 × 2, RJ45, RS232C, IR in/out, 3.5 mm audio in/out |
| Power Consumption | 320 W (typical), 480 W (max) |
| Standby Power | <0.5 W |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 49.5 kg |
| Warranty | 3 years |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
