PhilipsDigital SignageSKU 86BDL3511Q/00

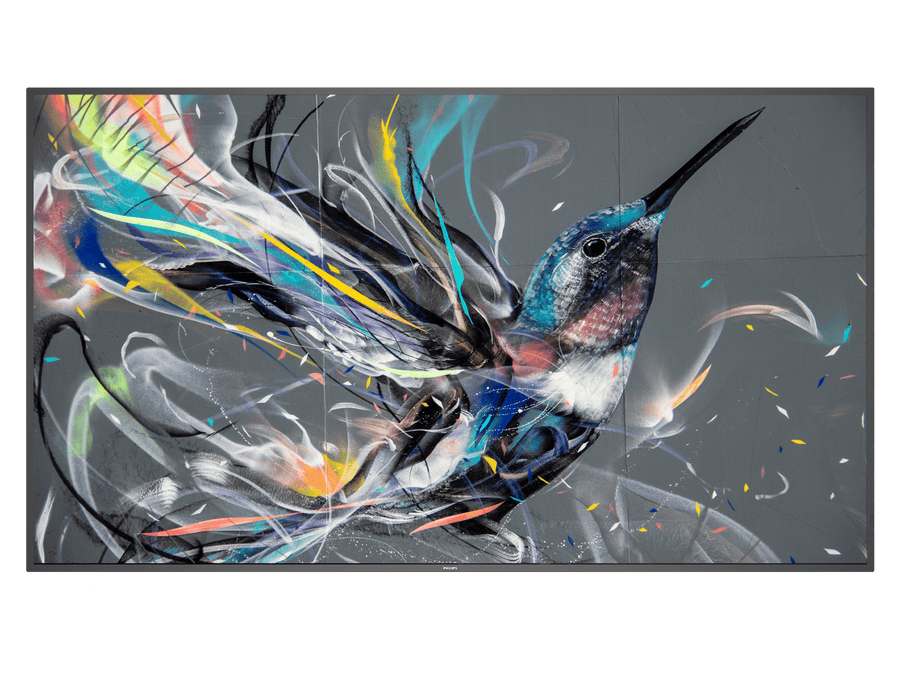

Philips 86-inch Q-Line 4K UHD Digital Signage Display – 86BDL3511Q/00
The Philips 86BDL3511Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 3000 Series, for 18/7 use in lobbies, retail and corporate spaces. It offers 3840 x 2160 resolution, 400 nits brightness and a tiled matrix of up to 10 x 15. Procure.ae supplies it across the UAE, with delivery and installation.
The 86BDL3511Q/00 uses a 3840 x 2160 IPS panel rated at 400 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles and 16:9 format suit large-format walls. The display is listed for landscape or portrait placement at 18/7, and 2 x 10 W RMS built-in speakers provide audio. At 49.5 kg, it needs a wall bracket rated for that load.
Connect sources through three HDMI 2.0 inputs, a DVI-I input and two USB 2.0 ports, and use the OPS slot for an OPS module. RJ45, RS232C and IR in and out allow remote management, and 3.5 mm audio input and output are fitted. Smart Insert is listed as an ease-of-installation feature, and the tiled matrix goes up to 10 x 15 for multi-screen walls. Mount it on the 600 x 400 mm VESA pattern.
Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- 4K UHD IPS panel
- Brightness and contrast
- Wide viewing angles
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 resolution on an 85.6-inch 16:9 screen.
02
Brightness and contrast
400 cd/m² brightness with 1,200:1 typical contrast.
03
Wide viewing angles
178-degree horizontal and vertical viewing angles.
04
Always-on operation
Landscape or portrait placement rated for 18/7 use.
05
Smart Insert installation
Listed by the manufacturer as an ease-of-installation feature.
06
Tiled matrix
A tiled matrix of up to 10 x 15 for multi-screen walls.
07
OPS expansion slot
An OPS slot for an OPS module.
08
Network control
RJ45, RS232C and IR in and out for remote management.
Specifications
24 specificationsGeneral
Key FeaturesLandscape and portrait placement, 18/7 operation, Smart Insert installation, Smart Power, OPS slot, RJ45 and RS232C control, tiling up to 10 x 15
Model86BDL3511Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m), USB cover, wire clamps (x3), quick start guide
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal, 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 3, DVI-I In × 1, USB 2.0 × 2, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption360 W (typical), 500 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.5 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Philips 86-inch Q-Line 4K UHD Digital Signage Display – 86BDL3511Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 86BDL3511Q/00 a 4K display?
Yes. It has a 3840 x 2160 IPS panel on an 85.6-inch 16:9 screen. Brightness is 400 cd/m², contrast is 1,200:1 typical and response time is 8 ms typical, with 60 Hz as the optimum refresh rate.
Can the 86BDL3511Q/00 be tiled into a video wall?
Yes. The manufacturer lists a tiled matrix of up to 10 x 15. Tiling needs matching displays and a suitable source and control setup, so confirm the layout with Procure.ae before ordering.
Can it run in portrait mode?
Yes. The manufacturer lists landscape and portrait placement, each rated for 18/7 operation. Portrait mode suits wayfinding and menu displays, and the 600 x 400 mm VESA pattern with M8 fixings supports standard wall mounts.
How is the 86BDL3511Q/00 mounted?
It uses a 600 x 400 mm VESA pattern with M8 fixings, and the listed weight is 49.5 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can arrange installation across the UAE.
Can I control the 86BDL3511Q/00 remotely?
Yes. It has RJ45, RS232C and IR in and out, with hidden, lockable keyboard control. A remote control, IR sensor cable (1.8 m) and RS232 daisy-chain cable are included, so the display can be managed over the network or serial control.
Can I buy the 86BDL3511Q/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
