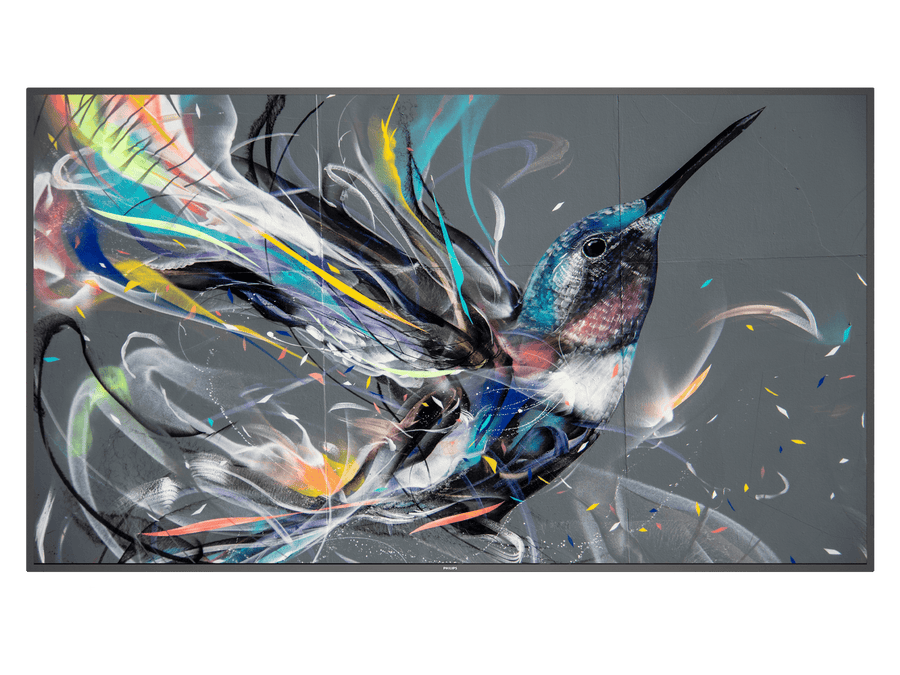

Philips 86-inch Q-Line 4K UHD Digital Signage Display – 86BDL3511Q/00

Philips 86-inch Q-Line 4K UHD Digital Signage Display – 86BDL3511Q/00

The Philips 86BDL3511Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 3000 Series, for 18/7 use in lobbies, retail and corporate spaces. It offers 3840 x 2160 resolution, 400 nits brightness and a tiled matrix of up to 10 x 15. Procure.ae supplies it across the UAE, with delivery and installation.

The 86BDL3511Q/00 uses a 3840 x 2160 IPS panel rated at 400 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles and 16:9 format suit large-format walls. The display is listed for landscape or portrait placement at 18/7, and 2 x 10 W RMS built-in speakers provide audio. At 49.5 kg, it needs a wall bracket rated for that load.

Connect sources through three HDMI 2.0 inputs, a DVI-I input and two USB 2.0 ports, and use the OPS slot for an OPS module. RJ45, RS232C and IR in and out allow remote management, and 3.5 mm audio input and output are fitted. Smart Insert is listed as an ease-of-installation feature, and the tiled matrix goes up to 10 x 15 for multi-screen walls. Mount it on the 600 x 400 mm VESA pattern.

Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
Weight
49.5 kg

Key features

01
4K UHD IPS panel
3840 x 2160 resolution on an 85.6-inch 16:9 screen.
02
Brightness and contrast
400 cd/m² brightness with 1,200:1 typical contrast.
03
Wide viewing angles
178-degree horizontal and vertical viewing angles.
04
Always-on operation
Landscape or portrait placement rated for 18/7 use.
05
Smart Insert installation
Listed by the manufacturer as an ease-of-installation feature.
06
Tiled matrix
A tiled matrix of up to 10 x 15 for multi-screen walls.
07
OPS expansion slot
An OPS slot for an OPS module.
08
Network control
RJ45, RS232C and IR in and out for remote management.

Specifications

General
Key FeaturesLandscape and portrait placement, 18/7 operation, Smart Insert installation, Smart Power, OPS slot, RJ45 and RS232C control, tiling up to 10 x 15
Model86BDL3511Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m), USB cover, wire clamps (x3), quick start guide
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal, 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 3, DVI-I In × 1, USB 2.0 × 2, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption360 W (typical), 500 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.5 kg
Compliance
Warranty3 years
