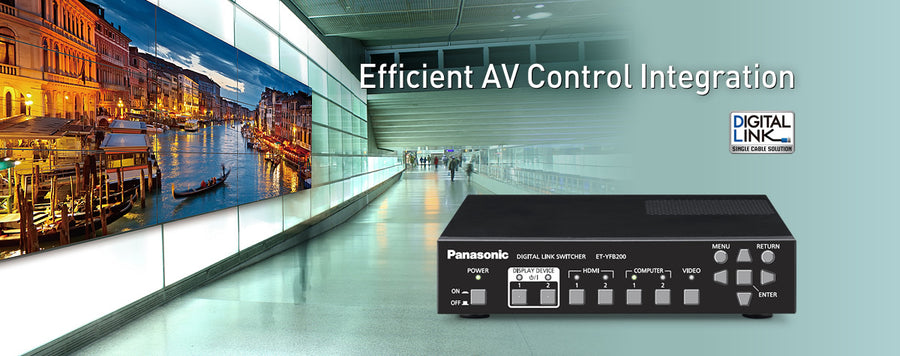

Panasonic DIGITAL LINK Switcher – ET-YFB200G

The Panasonic ET-YFB200G is a DIGITAL LINK switcher that sends one source to two projectors or displays at the same time. It has two DIGITAL LINK outputs, each up to 150 m over CAT5e cable, plus two HDMI inputs and a LAN port for browser-based control. Procure.ae supplies the ET-YFB200G across the UAE.

The ET-YFB200G has two DIGITAL LINK outputs based on HDBaseT technology. Each output carries uncompressed HD video, audio and command signals over a single CAT5e (STP) or higher cable, for up to 150 m (492 ft) in Long Reach Mode on applicable models. Inputs include two HDMI, two RGB computer inputs, a composite video input and three audio inputs. A DVI-D output lets you monitor the outgoing signal from a connected PC, and a separate audio output plays sound when the display is powered down.

The switcher suits a main projector with a sub-display, two separate rooms, or dual-unit projection with edge blending in large venues. It can daisy-chain to multiple display devices and integrates 3x3 video wall installations, according to the manufacturer. Its Early Warning Software support helps anticipate failures or identify them more easily, and brackets for server rack (EIA) mounting are included.
