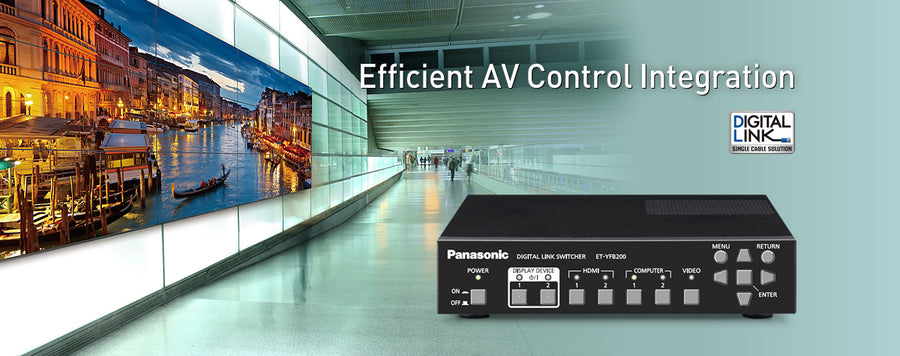

Panasonic DIGITAL LINK Switcher – ET-YFB200G

The Panasonic ET-YFB200G is a DIGITAL LINK switcher that sends one source to two projectors or displays at the same time. It has two DIGITAL LINK outputs, each up to 150 m over CAT5e cable, plus two HDMI inputs and a LAN port for browser-based control. Procure.ae supplies the ET-YFB200G across the UAE.

The ET-YFB200G has two DIGITAL LINK outputs based on HDBaseT technology. Each output carries uncompressed HD video, audio and command signals over a single CAT5e (STP) or higher cable, for up to 150 m (492 ft) in Long Reach Mode on applicable models. Inputs include two HDMI, two RGB computer inputs, a composite video input and three audio inputs. A DVI-D output lets you monitor the outgoing signal from a connected PC, and a separate audio output plays sound when the display is powered down.

The switcher suits a main projector with a sub-display, two separate rooms, or dual-unit projection with edge blending in large venues. It can daisy-chain to multiple display devices and integrates 3x3 video wall installations, according to the manufacturer. Its Early Warning Software support helps anticipate failures or identify them more easily, and brackets for server rack (EIA) mounting are included.

Type

DIGITAL LINK Switcher

Weight

1.3 kg

Key features

Two DIGITAL LINK outputs

Sends media and control signals to two projectors or displays at once.

Up to 150 m transmission

Single CAT5e (STP) or higher cable for applicable Long Reach Mode models.

Daisy-chain connection

Cascades signals to multiple display devices.

In-browser remote control

Operates the switcher from a PC or tablet browser over the LAN port.

DVI-D monitoring output

Monitors the outgoing signal from a PC or feeds an extra display.

Early Warning Software support

Helps anticipate failures or identify them more easily.

Specifications

General
Controls	RS-232C serial (3-pin terminal block), parallel remote, LAN, in-browser control
Key Features	Two DIGITAL LINK outputs, up to 150 m over CAT5e, daisy-chain, in-browser control, DVI-D monitor output, PJLink LAN, Early Warning Software, server rack mounting
Model	ET-YFB200G
Type	DIGITAL LINK Switcher
What's in the Box	AC adaptor, 3 power cords (2 m), rack mounting brackets, countersunk screws, 4 legs, terminal block plug

Audio
Audio Out	Stereo mini jack (M3), variable

Connectivity
Cable Standard	CAT5e (STP) or higher, up to 150 m (Long Reach Mode, applicable models)
Connectivity	DIGITAL LINK (HDBaseT-based), RS-232C, parallel remote, LAN
Ethernet	10BASE-T / 100BASE-TX (RJ-45)
HDMI Inputs	2
Outputs	DIGITAL LINK Out × 2, DVI-D Out × 1, Audio Out × 1
Ports	HDMI In × 2, COMPUTER In × 2 (RGB), Video In × 1 (composite), Audio In × 3, Audio Out × 1, DIGITAL LINK Out × 2, DVI-D Out × 1, RS-232C × 1, Parallel Remote × 1, LAN × 1
Protocols	PJLink

Power
Power Consumption	32 W (0.15 W with power off)
Power Source	DC 16 V (AC adaptor supplied)

Physical
Dimensions	210 x 44 x 250 mm (W x H x D)
Mounting	Server rack (EIA), brackets included
Operating Humidity	20% to 80% (no condensation)
Operating Temperature	0 to 40 °C
Weight	1.3 kg
