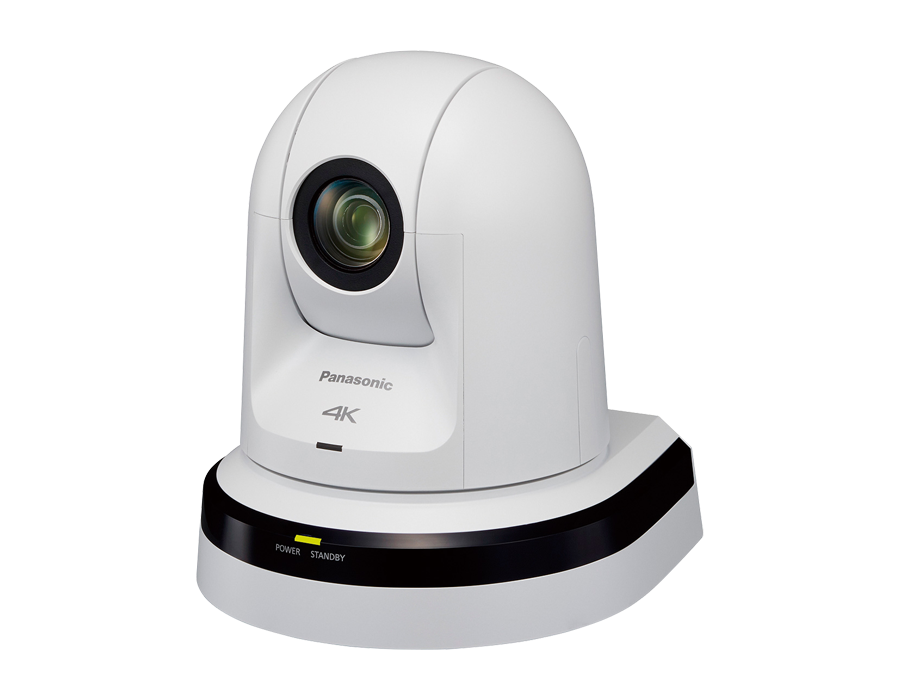

Panasonic 4K PTZ Integrated Camera with 20x Optical Zoom – AW-UE70
The Panasonic AW-UE70 is a 4K PTZ integrated camera with a 20x optical zoom lens, for conferences, lecture capture and event production. It outputs 4K UHD over HDMI, 3G/HD-SDI, USB and IP, and runs on PoE+ or a DC 12 V adapter. Procure.ae supplies the AW-UE70 across the UAE.
The AW-UE70 uses a 1/2.3-type MOS sensor and a 20x optical zoom lens, F1.8 to F3.6, with a focal length of 4.08 to 81.6 mm. Super resolution extends the zoom to 30x. Minimum illumination is 0.7 lx at 50 IRE with 59.94 Hz. The camera outputs 4K (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP, and records MP4 to a microSD card, at up to 3840 x 2160 at 29.97p and 72 Mbps. Optical and four-axis hybrid image stabilisation are included, along with an HDR mode.
The AW-UE70 suits conferences, lecture recording, wedding and funeral hall content, and event production, where a 4K source is needed alongside IP streaming. It connects through HDMI, 3G/HD-SDI, USB Mini-B and LAN, and it has RS-232C and RS-422 ports for serial control and a G/L IN for black burst or tri-level sync. It is compatible with the AW-RP50, AW-RP120G and AK-HRP200G controllers. Panasonic also lists compatibility with the KAIROS IT/IP platform. It can sit on a desk or be suspended from a ceiling.
Resolution
3840 x 2160 (4K UHD)
Speed
Preset up to 300°/s; manual up to 9...
Type
PTZ Camera
Weight
1.5 kg
- 4K UHD output
- 20x optical zoom
- Wide pan and tilt range
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD output
Outputs 4K UHD (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP.
02
20x optical zoom
F1.8 to F3.6 lens with 20x optical zoom and super resolution up to 30x.
03
Wide pan and tilt range
Pan of ±175 degrees and tilt from -30 to 90 degrees.
04
Fast preset movement
Preset movement up to 300 degrees per second, and manual movement up to 90 degrees per second.
05
Quiet operation
Operating noise is NC40 or less during preset movement and NC35 or less during manual operation.
06
USB video output
Outputs UVC video and USB audio at up to 3840 x 2160, at a maximum of 30 fps.
07
microSD recording
Records MP4 to a microSD card, with 3840 x 2160 at 29.97p up to 72 Mbps.
08
PoE+ or 12 V power
Supports PoE+ (IEEE 802.3at) for lower installation costs, or a DC 12 V adapter.
Specifications
23 specificationsGeneral
ControlsAW-RP50, AW-RP120G, AK-HRP200G
Key Features4K UHD output, 20x optical zoom, pan ±175°, tilt -30° to 90°, USB UVC video, microSD recording, PoE+ or 12 V DC power, 0.7 lx minimum illumination
ModelAW-UE70
TypePTZ Camera
Display
Resolution3840 x 2160 (4K UHD)
Zoom20x optical; super resolution 30x
Performance
SpeedPreset up to 300°/s; manual up to 90°/s
Storage Conditions-20 to 50 °C
Audio
Audio InStereo mini-jack 3.5 mm (mic/line)
Connectivity
PoEPoE+ (IEEE 802.3at)
PortsHDMI × 1, 3G/HD-SDI (BNC) × 1, LAN (RJ-45) × 1, RS-232C × 2, RS-422 (RJ-45) × 1, USB Mini-B × 1, microSD slot × 1, G/L IN (BNC) × 1
ProtocolsTCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, FTP
SD Card SlotmicroSD (MP4 recording)
USB PortsUSB Mini-B × 1 (UVC video output)
Power
Power Consumption1.3 A (AC adapter), 0.5 A (PoE+)
Power SourceDC 12 V adapter or PoE+ (IEEE 802.3at)
Physical
ColorPearl white or metallic black
Dimensions160 x 186 x 179 mm (W x H x D)
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (no condensation)
Operating Temperature0 to 40 °C
RotationPan ±175°, tilt -30° to 90°
Weight1.5 kg
Downloads
Manufacturer documents for the Panasonic 4K PTZ Integrated Camera with 20x Optical Zoom – AW-UE70 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the AW-UE70 output 4K?
Yes. It outputs 4K UHD (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP. Its USB output runs at a maximum of 30 fps in 59.94 Hz mode. The manufacturer lists 4K output via HDMI, USB and LAN.
Can the AW-UE70 be powered over Ethernet?
Yes. It supports PoE+ (IEEE 802.3at) and can also run from a DC 12 V AC adapter. Panasonic lists PoE+ current at 0.5 A and the adapter at 1.3 A.
Does the AW-UE70 record to a memory card?
Yes. It records MP4 (AVC) to a microSD card, with recording formats up to 3840 x 2160 at 29.97p, or 25p in 50 Hz mode. Recording uses MPEG-4 AVC, with AAC-LC audio at 48 kHz and 128 kbps.
Can the AW-UE70 be controlled over IP?
Yes. It has a LAN connector for IP control with auto-detection of straight and crossover cables. Controllers listed by Panasonic include the AW-RP50, AW-RP120G and AK-HRP200G. Panasonic also notes IP control with image monitoring from PC, Mac and mobile terminals.
Is the AW-UE70 suitable for wedding and funeral halls?
Yes. Panasonic positions it for wedding and funeral hall content production, lecture recording and conferences, where 4K image quality matters. It also suits lecture recording and conferences, which the manufacturer lists alongside wedding and funeral hall production.
