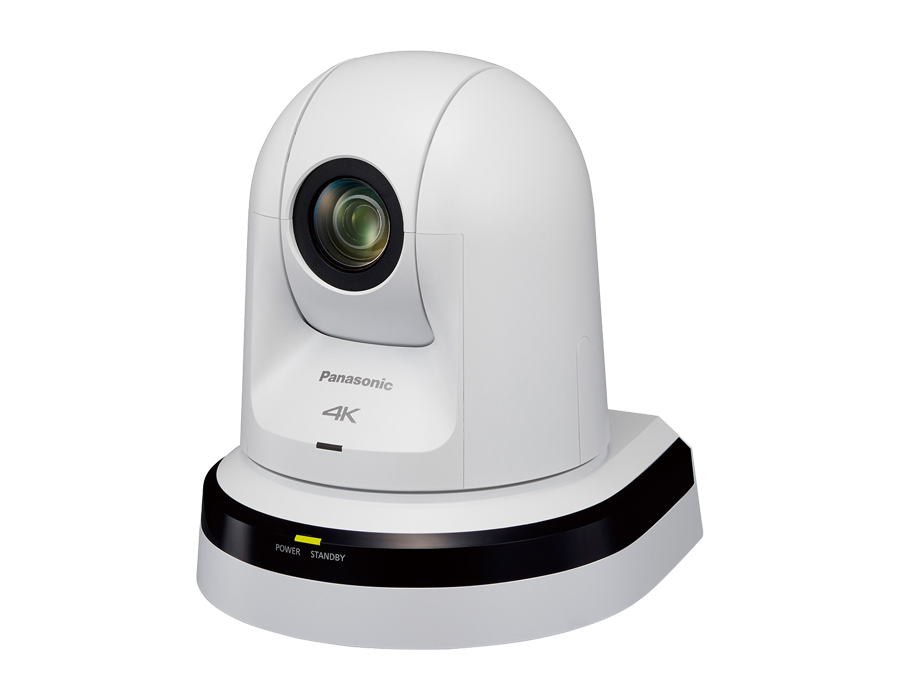

Panasonic 4K PTZ Integrated Camera with 20x Optical Zoom – AW-UE70
The Panasonic AW-UE70 is a 4K PTZ integrated camera with a 20x optical zoom lens, for conferences, lecture capture and event production. It outputs 4K UHD over HDMI, 3G/HD-SDI, USB and IP, and runs on PoE+ or a DC 12 V adapter. Procure.ae supplies the AW-UE70 across the UAE.
The AW-UE70 uses a 1/2.3-type MOS sensor and a 20x optical zoom lens, F1.8 to F3.6, with a focal length of 4.08 to 81.6 mm. Super resolution extends the zoom to 30x. Minimum illumination is 0.7 lx at 50 IRE with 59.94 Hz. The camera outputs 4K (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP, and records MP4 to a microSD card, at up to 3840 x 2160 at 29.97p and 72 Mbps. Optical and four-axis hybrid image stabilisation are included, along with an HDR mode.
The AW-UE70 suits conferences, lecture recording, wedding and funeral hall content, and event production, where a 4K source is needed alongside IP streaming. It connects through HDMI, 3G/HD-SDI, USB Mini-B and LAN, and it has RS-232C and RS-422 ports for serial control and a G/L IN for black burst or tri-level sync. It is compatible with the AW-RP50, AW-RP120G and AK-HRP200G controllers. Panasonic also lists compatibility with the KAIROS IT/IP platform. It can sit on a desk or be suspended from a ceiling.
Key features
Specifications
| Controls | AW-RP50, AW-RP120G, AK-HRP200G |
| Key Features | 4K UHD output, 20x optical zoom, pan ±175°, tilt -30° to 90°, USB UVC video, microSD recording, PoE+ or 12 V DC power, 0.7 lx minimum illumination |
| Model | AW-UE70 |
| Type | PTZ Camera |
| Resolution | 3840 x 2160 (4K UHD) |
| Zoom | 20x optical; super resolution 30x |
| Speed | Preset up to 300°/s; manual up to 90°/s |
| Storage Conditions | -20 to 50 °C |
| Audio In | Stereo mini-jack 3.5 mm (mic/line) |
| PoE | PoE+ (IEEE 802.3at) |
| Ports | HDMI × 1, 3G/HD-SDI (BNC) × 1, LAN (RJ-45) × 1, RS-232C × 2, RS-422 (RJ-45) × 1, USB Mini-B × 1, microSD slot × 1, G/L IN (BNC) × 1 |
| Protocols | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, FTP |
| SD Card Slot | microSD (MP4 recording) |
| USB Ports | USB Mini-B × 1 (UVC video output) |
| Power Consumption | 1.3 A (AC adapter), 0.5 A (PoE+) |
| Power Source | DC 12 V adapter or PoE+ (IEEE 802.3at) |
| Color | Pearl white or metallic black |
| Dimensions | 160 x 186 x 179 mm (W x H x D) |
| Mounting | Desktop or suspended (hanging) |
| Operating Humidity | 20% to 90% RH (no condensation) |
| Operating Temperature | 0 to 40 °C |
| Rotation | Pan ±175°, tilt -30° to 90° |
| Weight | 1.5 kg |
