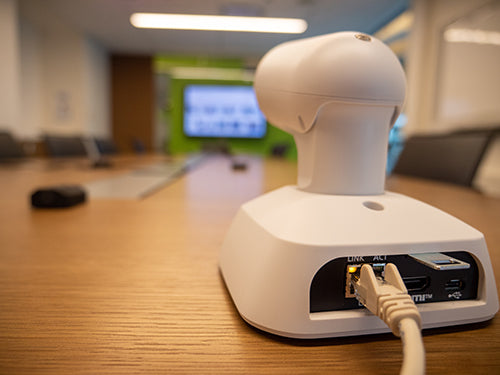

Panasonic 4K Compact PTZ Conference Camera – AW-UE4
The Panasonic AW-UE4 is a compact 4K PTZ conference camera for video conferencing, lectures and live streaming in meeting rooms and classrooms. It outputs 4K UHD video at 29.97p or 25p over HDMI, LAN and USB, with a 111-degree wide-angle lens. Procure.ae supplies the AW-UE4 across the UAE.
The AW-UE4 uses a 1/2.5-type MOS sensor and a single-focus lens with a 111-degree horizontal field of view when LDC is off. It outputs 4K UHD (3840 x 2160) at 29.97p or 25p and offers 4x digital zoom. Pan is ±110 degrees and tilt is ±25 degrees in manual operation. A single LAN cable can carry PoE power, control and video. USB Type-C can supply power from a computer, so USB operation needs no AC adapter, although HDMI output requires PoE or an AC adapter.
The AW-UE4 suits meeting rooms, classrooms and desks where one camera must cover a wide area from a limited space. It connects through its HDMI, LAN (RJ-45) and USB Type-C ports for video and IP control, and Panasonic's compatibility chart lists the operation devices and application software it supports. The camera can stand on a desk or be suspended from a ceiling. It is finished in white (AW-UE4WG) or black (AW-UE4KG).
Resolution
3840 x 2160 (4K UHD)
Type
Conference Camera
Weight
0.5 kg (excluding mount bracket)
- 4K UHD output
- 111-degree wide-angle lens
- Single-cable PoE
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD output
Outputs 3840 x 2160 video at 29.97p or 25p, with 1920 x 1080 and 1280 x 720 HD formats also available.
02
111-degree wide-angle lens
Horizontal field of view of 111 degrees with LDC off and 108 degrees with LDC on.
03
Single-cable PoE
PoE (IEEE 802.3at) supplies power, control and video over one LAN cable, with a DC 37 V to 57 V input.
04
USB Type-C power
Runs from a computer's USB connection at DC 5 V, drawing 1.0 A, for operation without an AC adapter.
05
IP streaming formats
Streams MJPEG, H.264 and H.265, with RTSP, RTMP and RTMPS delivery for H.264.
06
Pan and tilt control
Manual pan of ±110 degrees and tilt of ±25 degrees, with 4x digital zoom.
07
Built-in stereo microphone
Stereo microphone with audio on/off mute and an ALC function.
08
Desktop or ceiling mounting
Stand-alone on a desk or suspended from a ceiling, with a 700 mm focus distance.
Specifications
17 specificationsGeneral
Key Features4K UHD output, 111° wide-angle lens, PoE or USB power, Single-cable operation, MJPEG/H.264/H.265 streaming, 4x digital zoom, Pan ±110° and tilt ±25° (manual)
ModelAW-UE4
TypeConference Camera
Display
Resolution3840 x 2160 (4K UHD)
Zoom4x digital
Performance
Storage Conditions-20 to 50 °C
Audio
MicrophoneStereo, internal
Connectivity
PoEPoE (IEEE 802.3at)
PortsHDMI × 1, LAN (RJ-45) × 1, USB Type-C × 1
ProtocolsTCP/IP, UDP/IP, HTTP, RTSP, RTP, DHCP, DNS, RTMP
Power
Power Consumption1.0 A (USB), 0.2 A (PoE)
Physical
ColorWhite or Black
Dimensions123 x 131 x 139 mm (W x H x D)
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (no condensation)
Operating Temperature0 to 40 °C
Weight0.5 kg (excluding mount bracket)
Product videos
Downloads
Manufacturer documents for the Panasonic 4K Compact PTZ Conference Camera – AW-UE4 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the AW-UE4 output 4K?
Yes. The manufacturer lists 4K UHD (3840 x 2160) output at 29.97p or 25p. It also streams 1920 x 1080 and 1280 x 720 in its image streaming settings. H.264 and H.265 streaming also run at 3840 x 2160.
Can the AW-UE4 be powered over Ethernet?
Yes. It supports PoE (IEEE 802.3at) with a DC 37 V to 57 V input. It can also run from a computer's USB Type-C connection, but HDMI output needs PoE or an AC adapter.
What field of view does the AW-UE4 cover?
With LDC off, the AW-UE4 has a horizontal field of view of 111 degrees, a vertical field of view of 75 degrees and a diagonal of 120 degrees. With LDC on, the horizontal field narrows to 108 degrees.
Is the AW-UE4 suitable for a small meeting room?
Yes. Panasonic specifies stand-alone desktop or suspended installation, and the lens has a 700 mm focus distance, which suits close-range framing in small rooms. Its desk and hanging options give flexibility in rooms with limited space.
Can the AW-UE4 be controlled over IP and used with conferencing software?
Yes. It has a LAN terminal for IP control (RJ-45) and supports RTSP, RTMP and RTMPS streaming. Panasonic's compatibility chart lists the controllers and application software it supports. Its LAN terminal is an RJ-45 connector for IP control.
