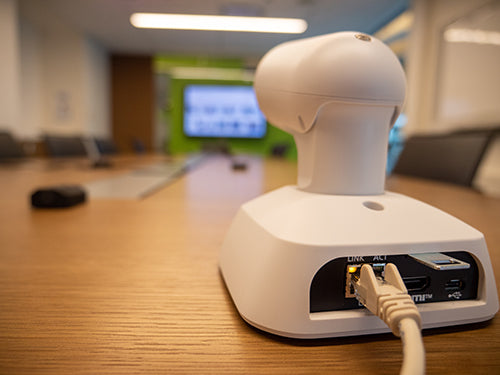

Panasonic 4K Compact PTZ Conference Camera – AW-UE4

The Panasonic AW-UE4 is a compact 4K PTZ conference camera for video conferencing, lectures and live streaming in meeting rooms and classrooms. It outputs 4K UHD video at 29.97p or 25p over HDMI, LAN and USB, with a 111-degree wide-angle lens. Procure.ae supplies the AW-UE4 across the UAE.

The AW-UE4 uses a 1/2.5-type MOS sensor and a single-focus lens with a 111-degree horizontal field of view when LDC is off. It outputs 4K UHD (3840 x 2160) at 29.97p or 25p and offers 4x digital zoom. Pan is ±110 degrees and tilt is ±25 degrees in manual operation. A single LAN cable can carry PoE power, control and video. USB Type-C can supply power from a computer, so USB operation needs no AC adapter, although HDMI output requires PoE or an AC adapter.

The AW-UE4 suits meeting rooms, classrooms and desks where one camera must cover a wide area from a limited space. It connects through its HDMI, LAN (RJ-45) and USB Type-C ports for video and IP control, and Panasonic's compatibility chart lists the operation devices and application software it supports. The camera can stand on a desk or be suspended from a ceiling. It is finished in white (AW-UE4WG) or black (AW-UE4KG).

Resolution

3840 x 2160 (4K UHD)

Type

Conference Camera

Weight

0.5 kg (excluding mount bracket)

Key features

4K UHD output

Outputs 3840 x 2160 video at 29.97p or 25p, with 1920 x 1080 and 1280 x 720 HD formats also available.

111-degree wide-angle lens

Horizontal field of view of 111 degrees with LDC off and 108 degrees with LDC on.

Single-cable PoE

PoE (IEEE 802.3at) supplies power, control and video over one LAN cable, with a DC 37 V to 57 V input.

USB Type-C power

Runs from a computer's USB connection at DC 5 V, drawing 1.0 A, for operation without an AC adapter.

IP streaming formats

Streams MJPEG, H.264 and H.265, with RTSP, RTMP and RTMPS delivery for H.264.

Pan and tilt control

Manual pan of ±110 degrees and tilt of ±25 degrees, with 4x digital zoom.

Built-in stereo microphone

Stereo microphone with audio on/off mute and an ALC function.

Desktop or ceiling mounting

Stand-alone on a desk or suspended from a ceiling, with a 700 mm focus distance.

Specifications

General
Key Features	4K UHD output, 111° wide-angle lens, PoE or USB power, Single-cable operation, MJPEG/H.264/H.265 streaming, 4x digital zoom, Pan ±110° and tilt ±25° (manual)
Model	AW-UE4
Type	Conference Camera

Display
Resolution	3840 x 2160 (4K UHD)
Zoom	4x digital

Performance
Storage Conditions	-20 to 50 °C

Audio
Microphone	Stereo, internal

Connectivity
PoE	PoE (IEEE 802.3at)
Ports	HDMI × 1, LAN (RJ-45) × 1, USB Type-C × 1
Protocols	TCP/IP, UDP/IP, HTTP, RTSP, RTP, DHCP, DNS, RTMP

Power
Power Consumption	1.0 A (USB), 0.2 A (PoE)

Physical
Color	White or Black
Dimensions	123 x 131 x 139 mm (W x H x D)
Mounting	Desktop or suspended (hanging)
Operating Humidity	20% to 90% RH (no condensation)
Operating Temperature	0 to 40 °C
Weight	0.5 kg (excluding mount bracket)
